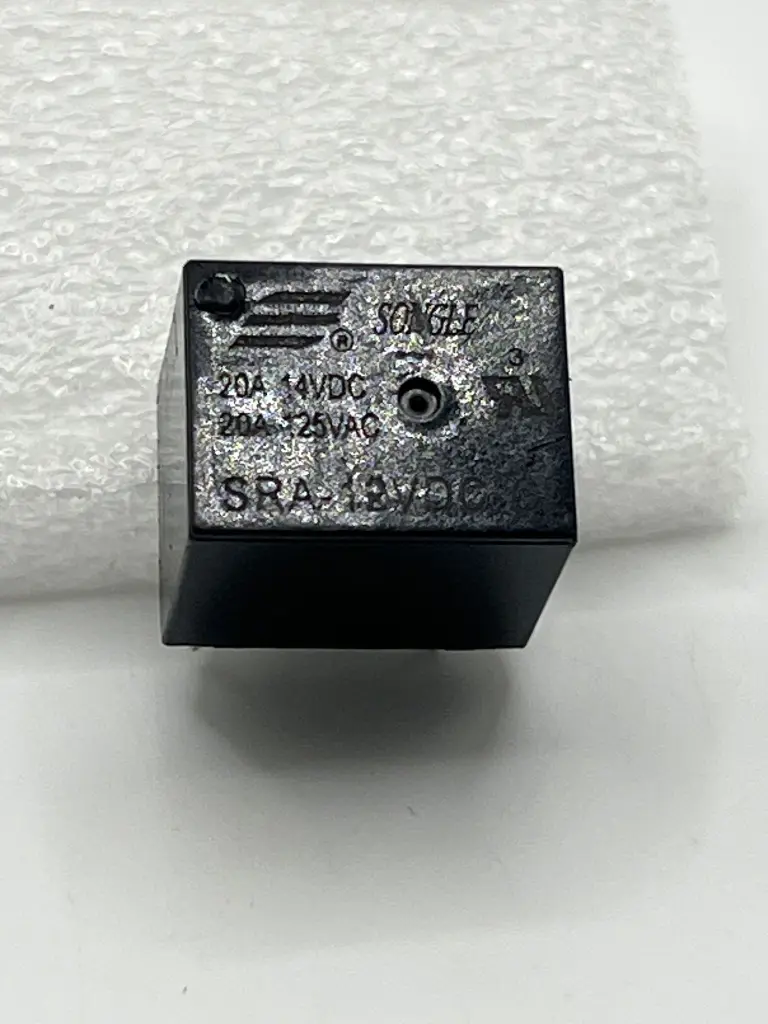

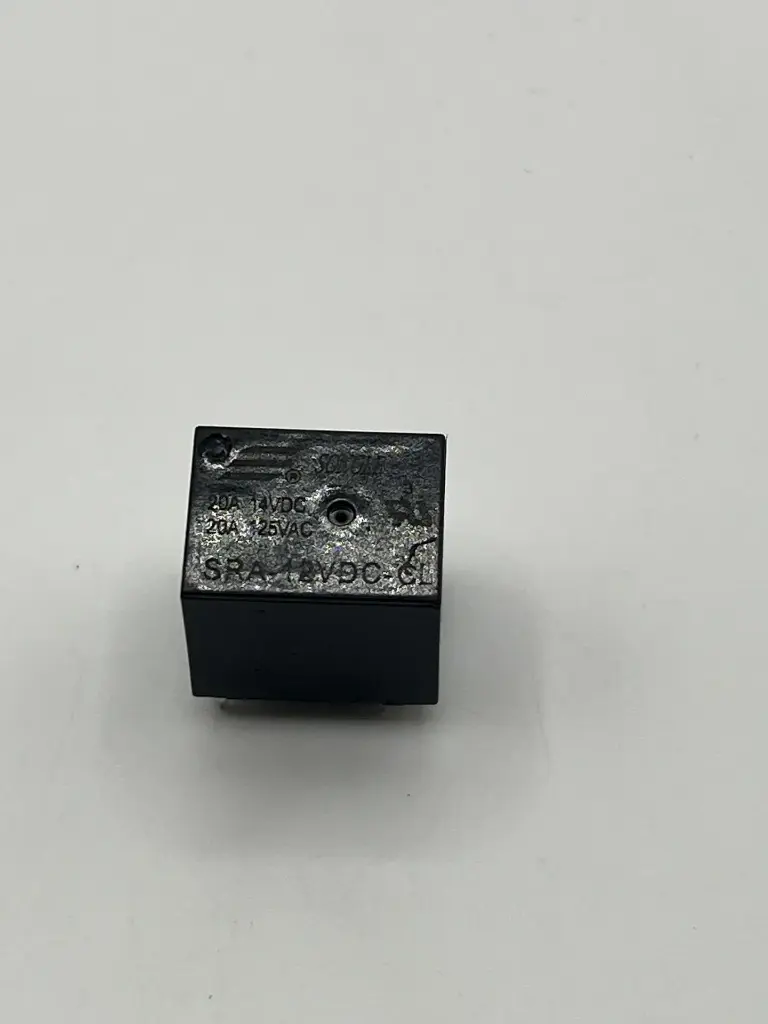

5 Pin Relay 12V DC 20A Coil Power Relay SRA-12VDC-CL

The 5 Pin Relay 12V DC 20A Coil Power Relay (SRA-12VDC-CL) is a versatile electromechanical switch commonly used in automotive, industrial, and household applications. It allows low-power signals from a microcontroller or logic circuit to control higher-power devices such as lights, motors, and appliances. This relay operates with a 12V DC coil voltage and has a contact rating suitable for handling up to 20A of current. Key Features:

• Relay Type: SPDT (Single Pole Double Throw)
• Coil Voltage: 12V DC
• Contact Rating: 20A at 14V DC or 20A at 125V AC resistive load
• Terminals: 5 pins including coil terminals (normally open, normally closed, and common)
• Mounting: Standard PCB mount with 5mm pitch terminals
• Operating Life: Typically rated for 100,000 cycles or more depending on load and usage conditions
• Dimensions: Compact size suitable for integration into various electronic and electrical projects

Applications:

• Automotive applications (lighting control, fan control, etc.)
• Industrial control systems
• Home automation projects
• Power management and switching circuits
• Robotics and electronic devices

Technical Specifications:

• Switching Voltage: 14V DC, 125V AC
• Maximum Switching Current: 20A
• Coil Resistance: Approximately 160 ohms (at 20°C)
• Operating Temperature Range: -40°C to +85°C
• Dimensions: Standard relay package size for easy integration into circuits

Datasheet: For detailed technical information, refer to the SRA-12VDC-CL datasheet.
