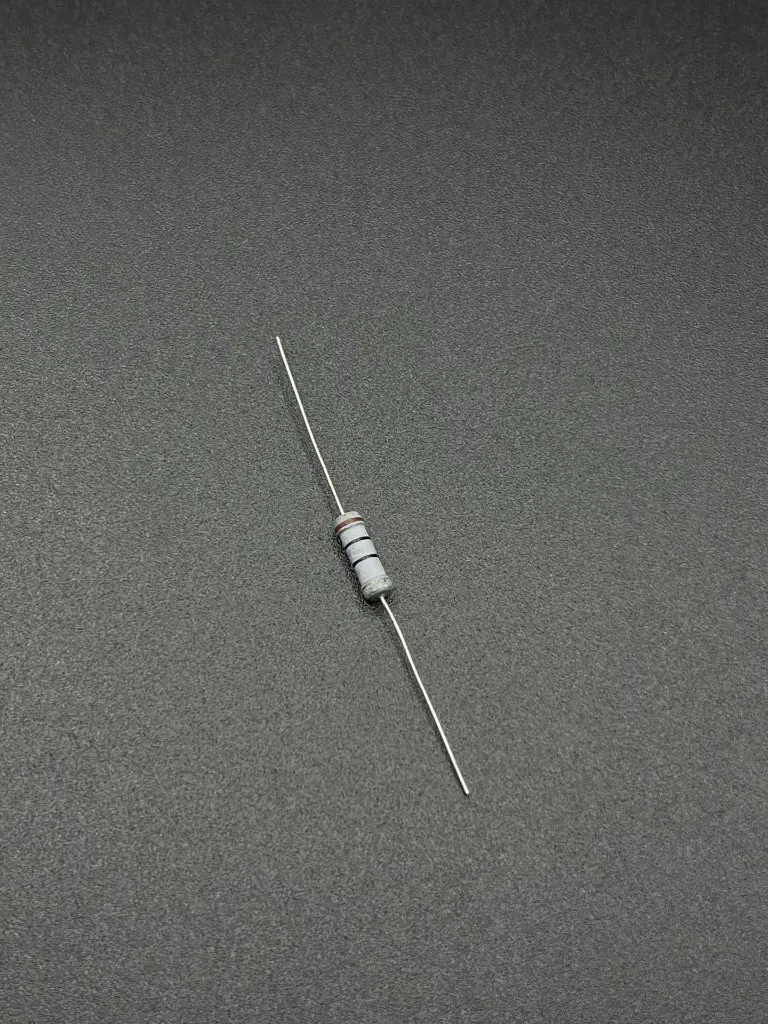

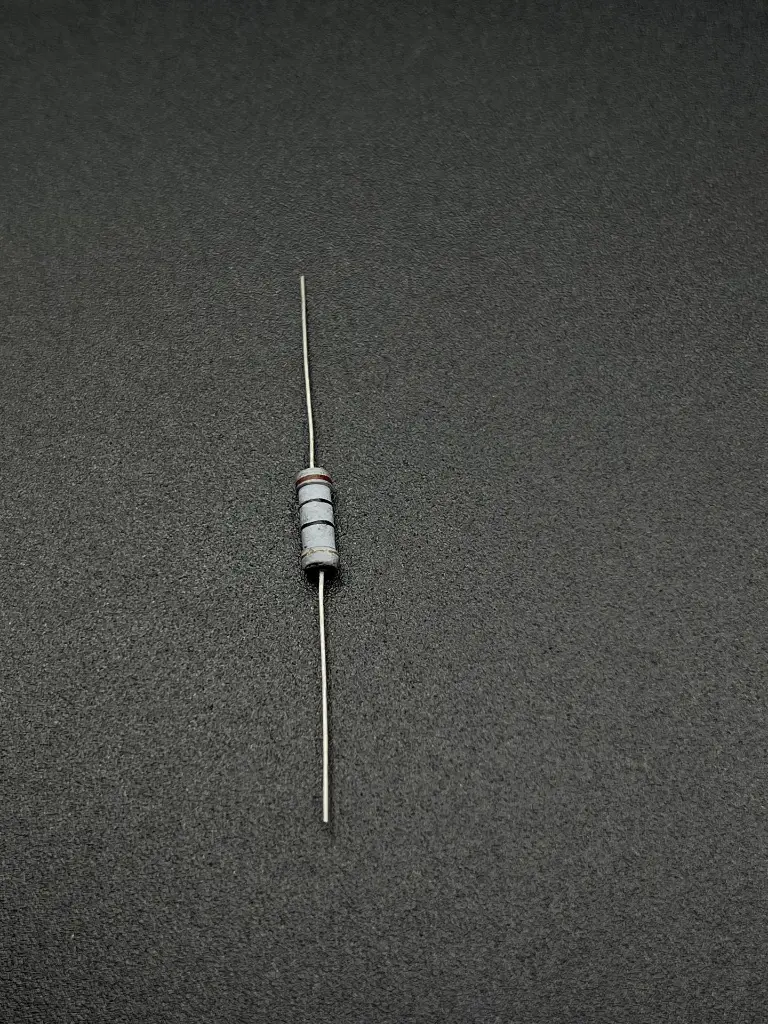

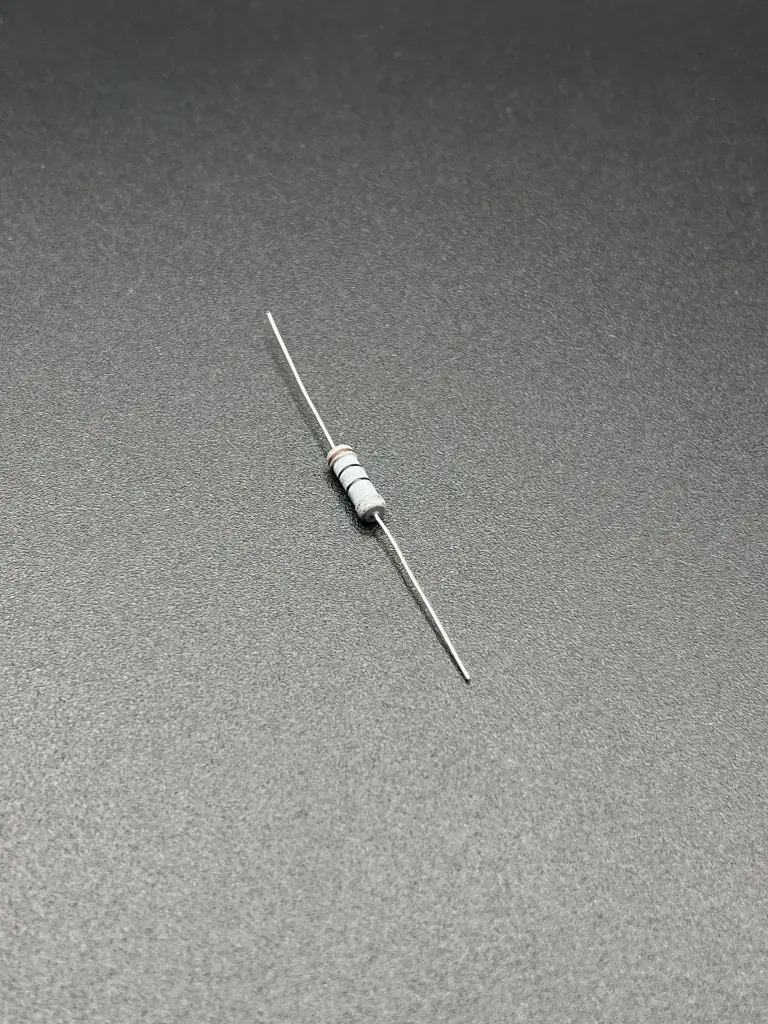

22Ω 1W Resistor
15 sold in last 24 hours
The 22Ω 1W resistor is a fixed resistor with a resistance value of 22 ohms and a power rating of 1 watt. It is used in electronic circuits to limit current and drop voltage, providing reliable performance for moderate power dissipation applications.
Key Features:
- Resistance value: 22Ω (ohms)
- Power rating: 1W (watt)
- Tolerance: ±5% (typical)
- Axial leaded design for through-hole mounting
- High power dissipation capability
- Flame-retardant coating
- Stable performance with low noise
- Resistance: 22Ω
- Power Rating: 1W
- Tolerance: ±5%
- Temperature Coefficient: ±200 ppm/°C (typical)
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 250V
- Body Dimensions: Approximately 10 mm length x 4 mm diameter
- Lead Diameter: Approximately 0.8 mm
- Power Supplies: To limit current and control voltage drops in power circuits
- Audio Equipment: To stabilize signal levels and reduce noise
- Industrial Controls: In control systems for power management
- LED Drivers: To limit current for LED lighting applications
- General Electronics: For various circuits needing moderate power dissipation
- Insert the resistor into the PCB or breadboard, ensuring proper orientation for through-hole components.
- Solder the leads if necessary, ensuring a secure and reliable connection.
- Check the circuit for correct connections and test the resistor's functionality.
- Ensure the resistor's power rating meets your circuit's needs to prevent overheating.
- Handle carefully to avoid damaging the resistor or leads.
- Do not exceed the maximum working voltage and power dissipation limits.
