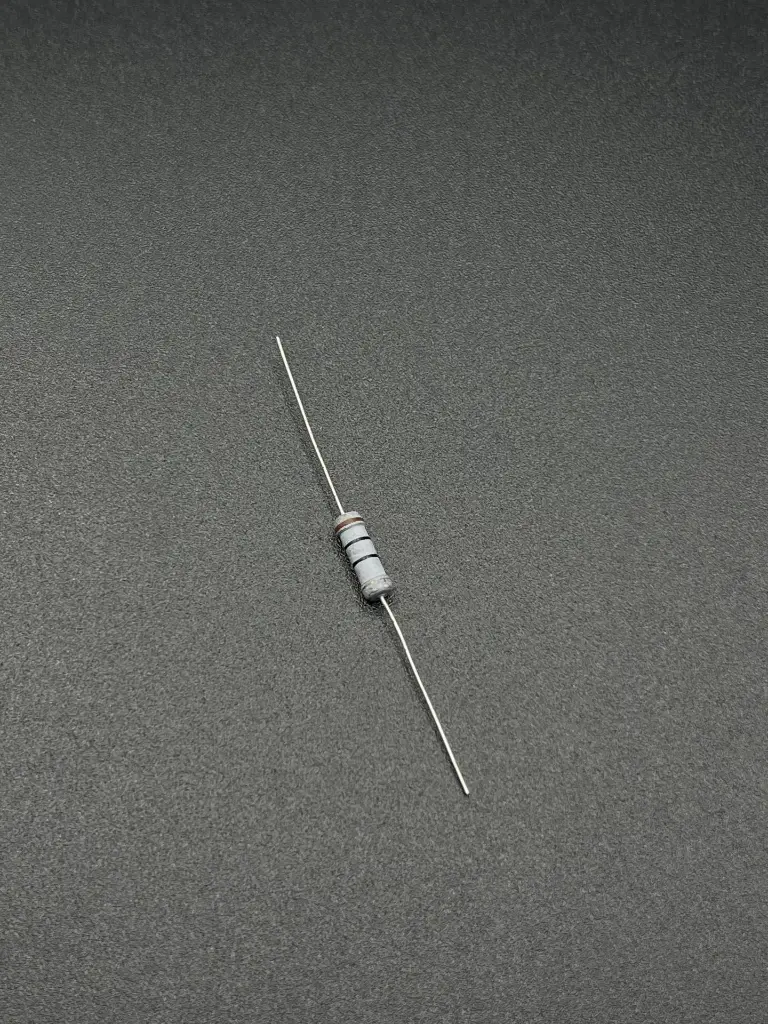

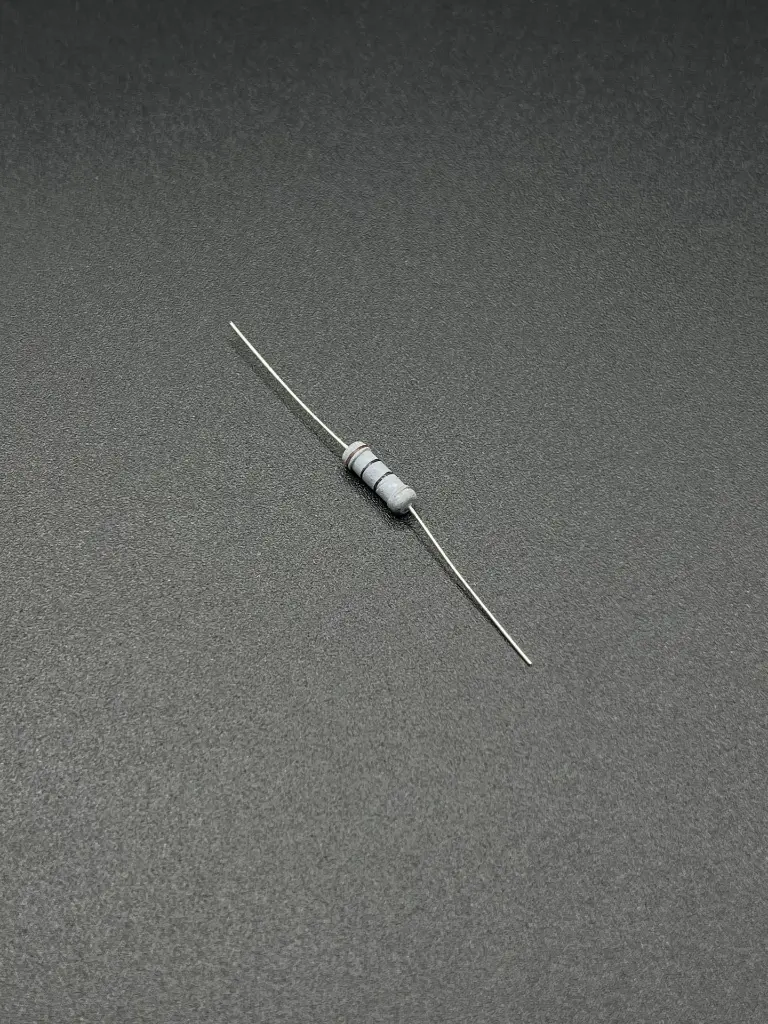

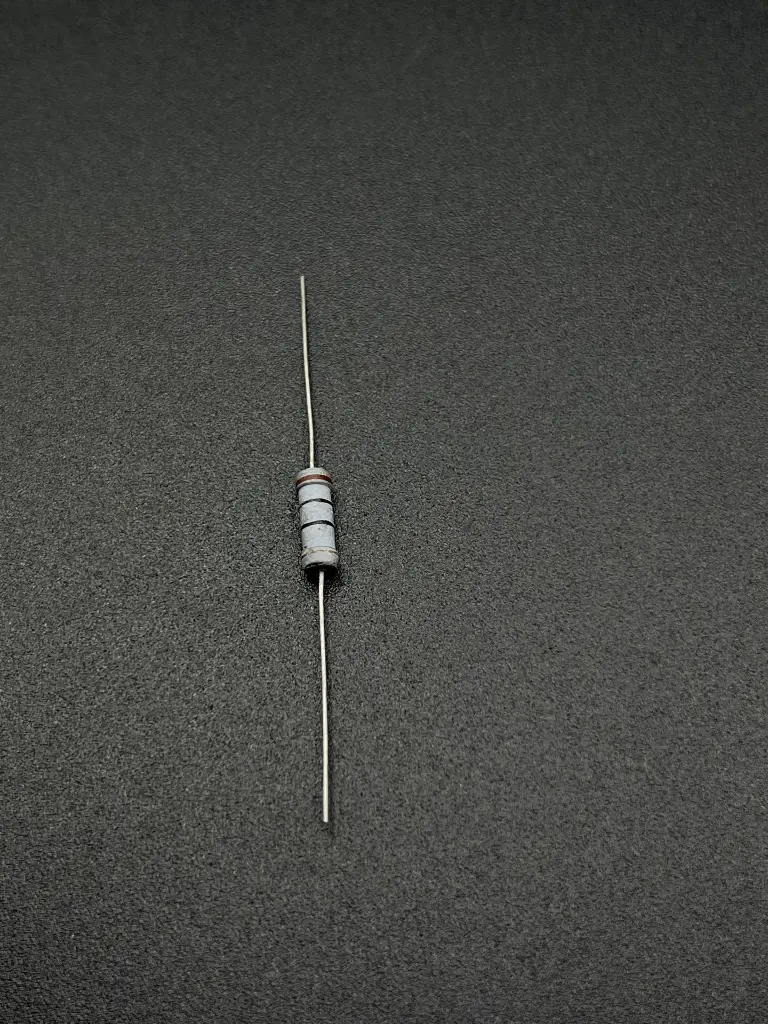

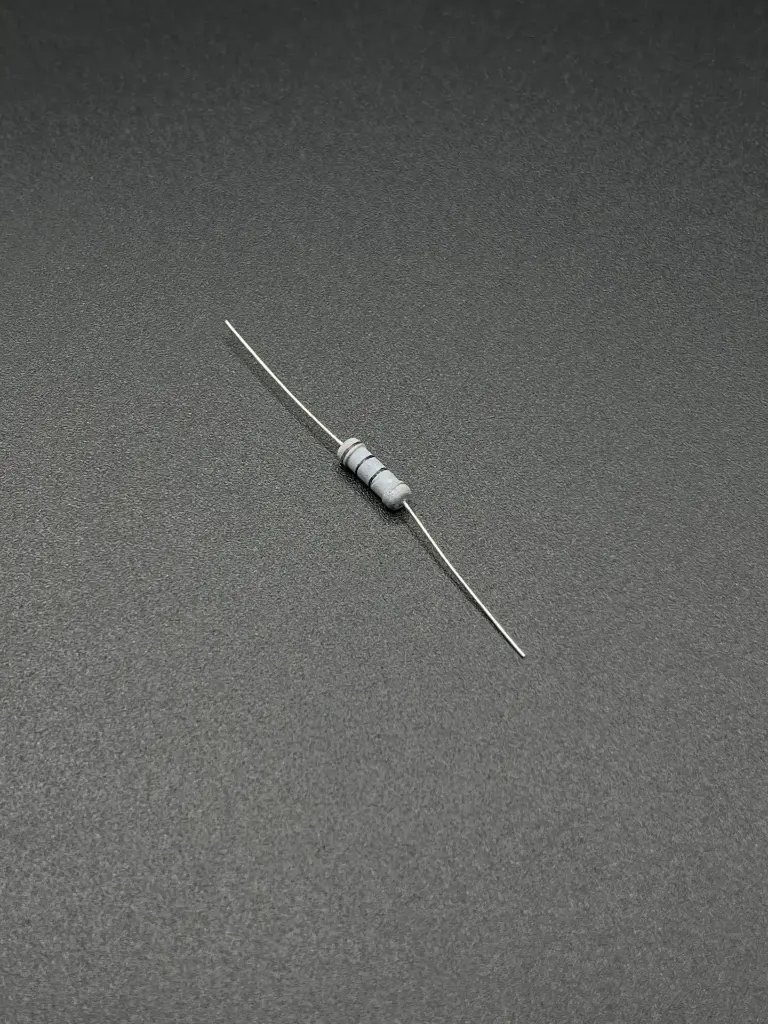

1MΩ 2W resistor
7 sold in last 24 hours
The 1MΩ 2W resistor is a fixed resistor with a resistance value of 1 megohm (1,000,000 ohms) and a power rating of 2 watts. It is used in electronic circuits to limit current, drop voltage, and provide precise resistance values for applications requiring higher power dissipation.
Key Features:
- Resistance value: 1MΩ (1,000,000 ohms)
- Power rating: 2W (watts)
- Tolerance: ±5% (typical)
- Axial leaded design for through-hole mounting
- High power dissipation capability
- Flame-retardant coating
- Stable performance with low noise
- Resistance: 1MΩ (1,000,000Ω)
- Power Rating: 2W
- Tolerance: ±5%
- Temperature Coefficient: ±100 ppm/°C (typical)
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 500V
- Body Dimensions: Approximately 12 mm length x 6 mm diameter
- Lead Diameter: Approximately 0.8 mm
- High-Voltage Circuits: To limit current and manage voltage drops in high-voltage applications
- Signal Processing: In circuits where high resistance is needed for signal conditioning
- Measurement Equipment: For accurate resistance measurements in instrumentation
- Audio Equipment: For impedance matching and signal attenuation
- Power Supplies: To manage current flow and voltage regulation in power supply circuits
- Insert the resistor into the PCB or breadboard, ensuring correct orientation for through-hole components.
- Solder the leads securely, ensuring good electrical contact and mechanical stability.
- Verify circuit connections and functionality, checking that the resistor operates within its rated power and voltage limits.
- Ensure the resistor’s power rating is suitable for your application to avoid overheating.
- Handle with care to prevent damage to the resistor or its leads.
- Avoid exceeding the maximum working voltage and power dissipation limits.
