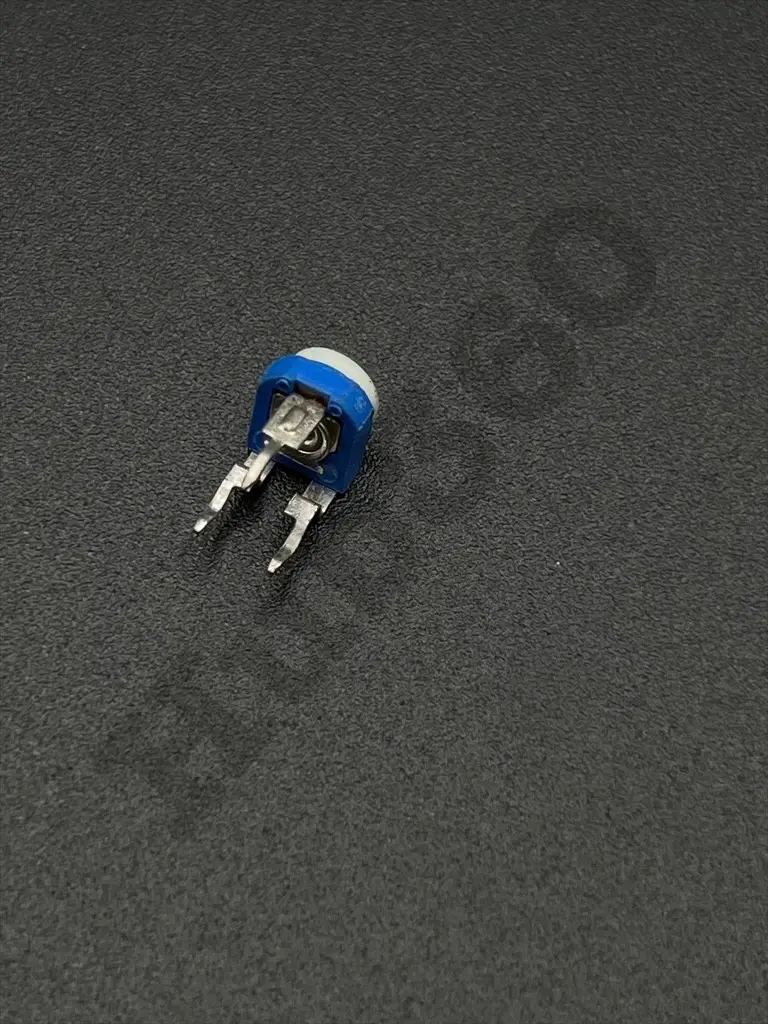

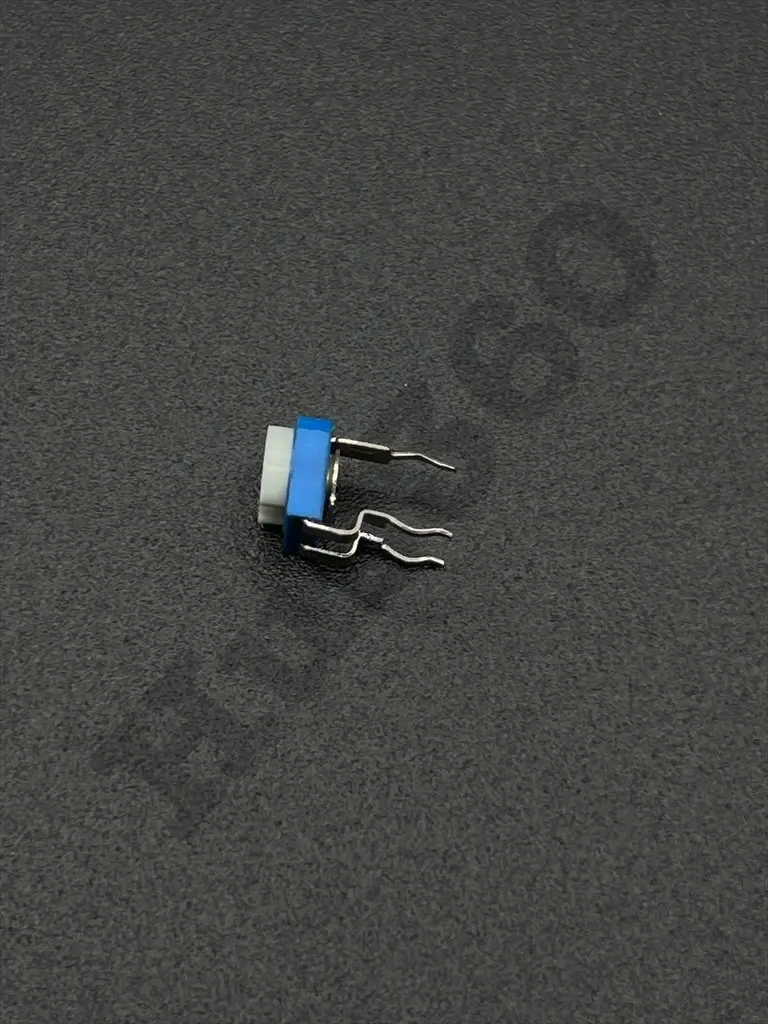

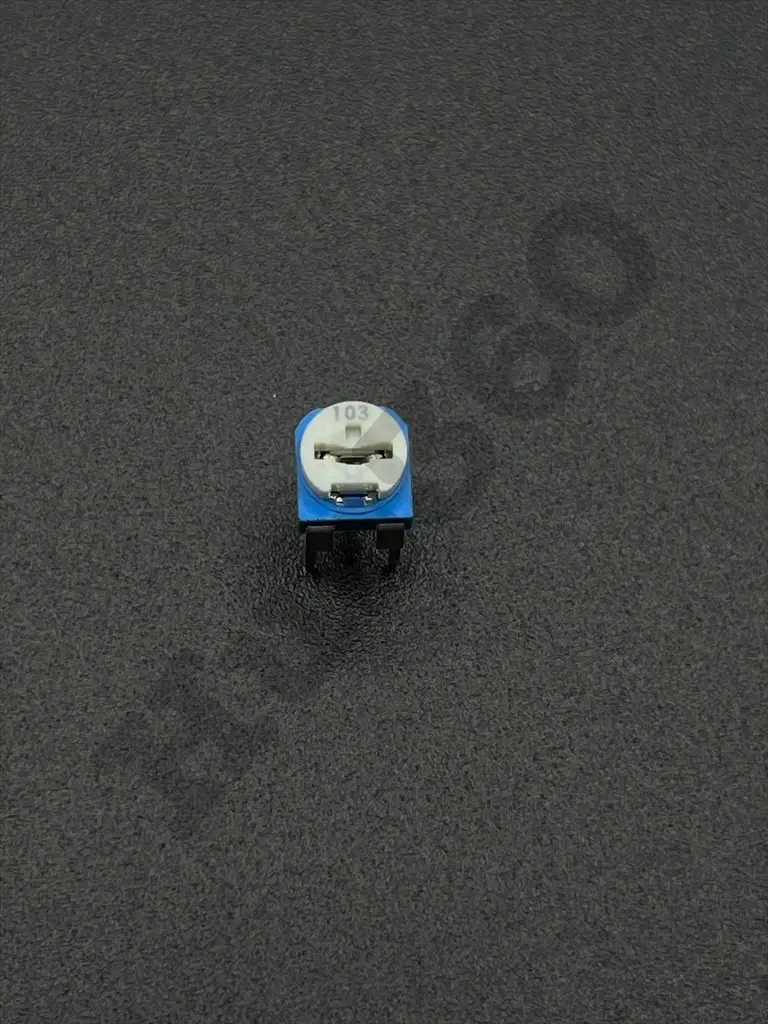

103 10K ohm Variable Resistor
10 sold in last 24 hours
The 10KΩ Variable Resistor, also known as a potentiometer, is a crucial electronic component used to adjust and control resistance in a circuit. With a resistance range of up to 10 kilohms, it allows for precise adjustments of voltage and current in various applications. This component is widely utilized in volume controls, tuning circuits, and other calibration systems.
Key Features:
- Resistance Range: 10KΩ (10,000Ω)
- Adjustable resistance for accurate control
- Available in rotary or linear adjustment types
- Offered in through-hole or surface-mount designs
- Resistance Value: 10KΩ (10,000Ω)
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1W
- Adjustment Type: Rotary or linear
- Package Type: Through-hole
- Audio volume adjustment
- Signal attenuation and gain control
- Calibration in measurement devices
- Fine-tuning in analog circuits
- Connect the potentiometer to the circuit as per the design specifications.
- Adjust the resistance by rotating or sliding the control to the desired level.
- Test the circuit to ensure the adjustment meets operational requirements.
- Avoid exceeding the potentiometer’s power rating to prevent overheating.
- Handle with care to avoid damaging the adjustment mechanism.
- Regular recalibration may be needed in applications requiring precise adjustments.
