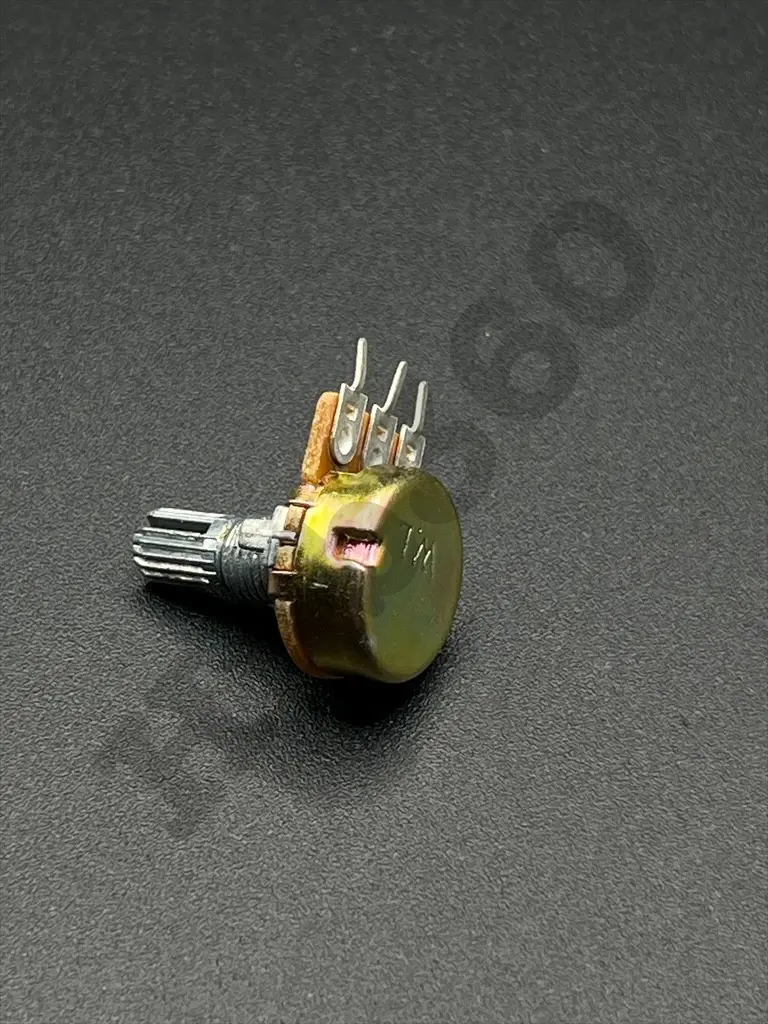

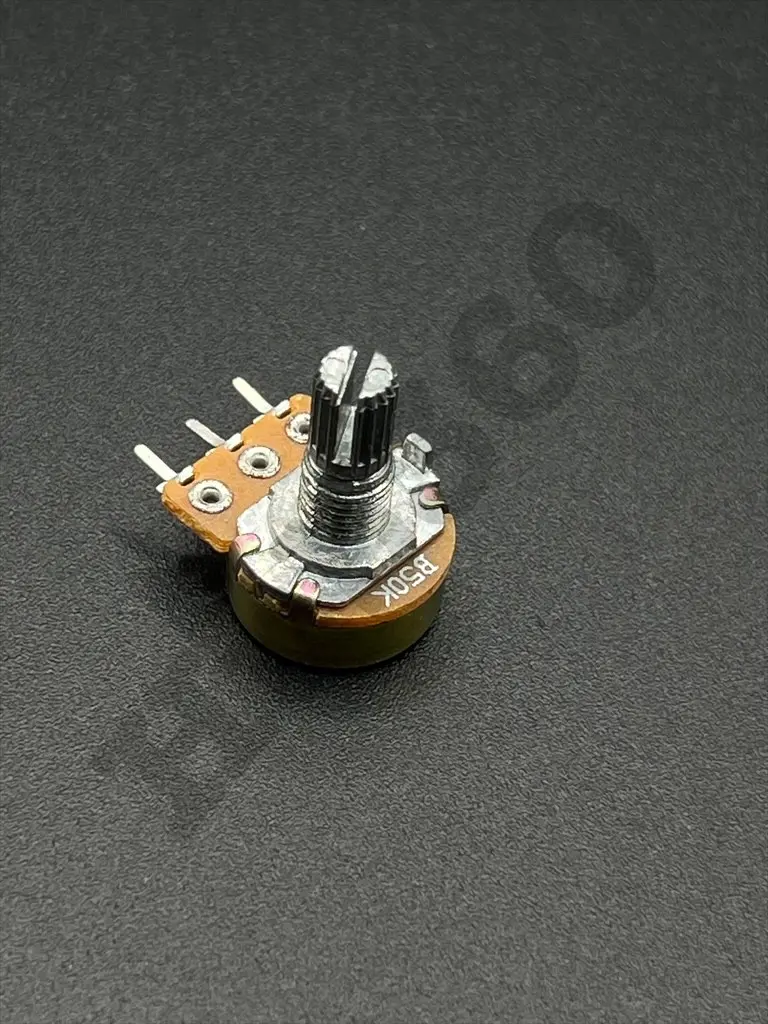

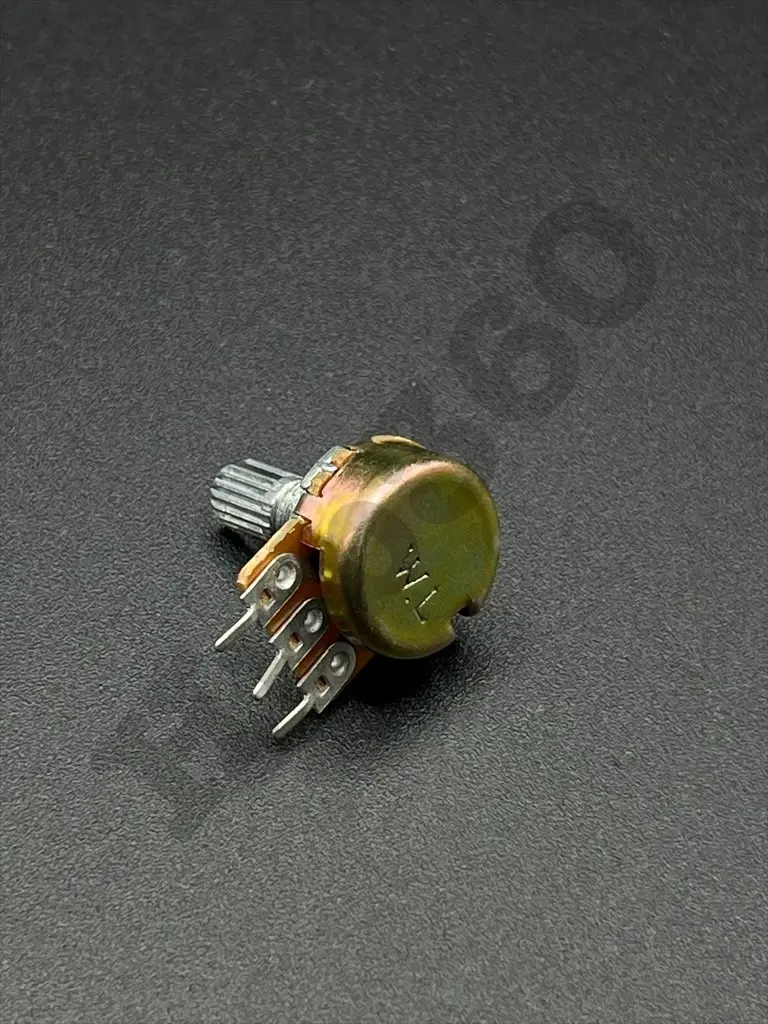

50KΩ Potentiometer
5 sold in last 24 hours
The 50KΩ Potentiometer is an adjustable resistor with a resistance of 50K ohms. It is used to control the level of voltage in a circuit by varying the resistance. This type of potentiometer is commonly used in applications such as volume controls, tone controls, and calibration adjustments in electronic devices.
Key Features:
- Adjustable resistance range: 0Ω to 50KΩ
- High precision and reliability
- Suitable for various electronic applications
- Available in different forms including rotary and slide types
- Compact design for easy integration
- Resistance Value: 50KΩ
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1WÂ
- Adjustment Type: Rotary or Slide
- Temperature Range: -55°C to +125°C
- Package Type: Through-hole or Surface-mount
- Volume control in audio equipment
- Brightness and contrast adjustments
- Calibration of electronic circuits
- Tuning and setting adjustments in various devices
- Install the potentiometer into the circuit according to the schematic diagram.
- Adjust the knob or slide to vary the resistance as needed.
- Ensure secure connections and check for proper functionality.
- Use the potentiometer to fine-tune the desired parameter in the circuit.
- Avoid excessive mechanical stress during adjustment to prevent damage.
- Ensure the power rating is suitable for your application to avoid overheating.
No Specifications
