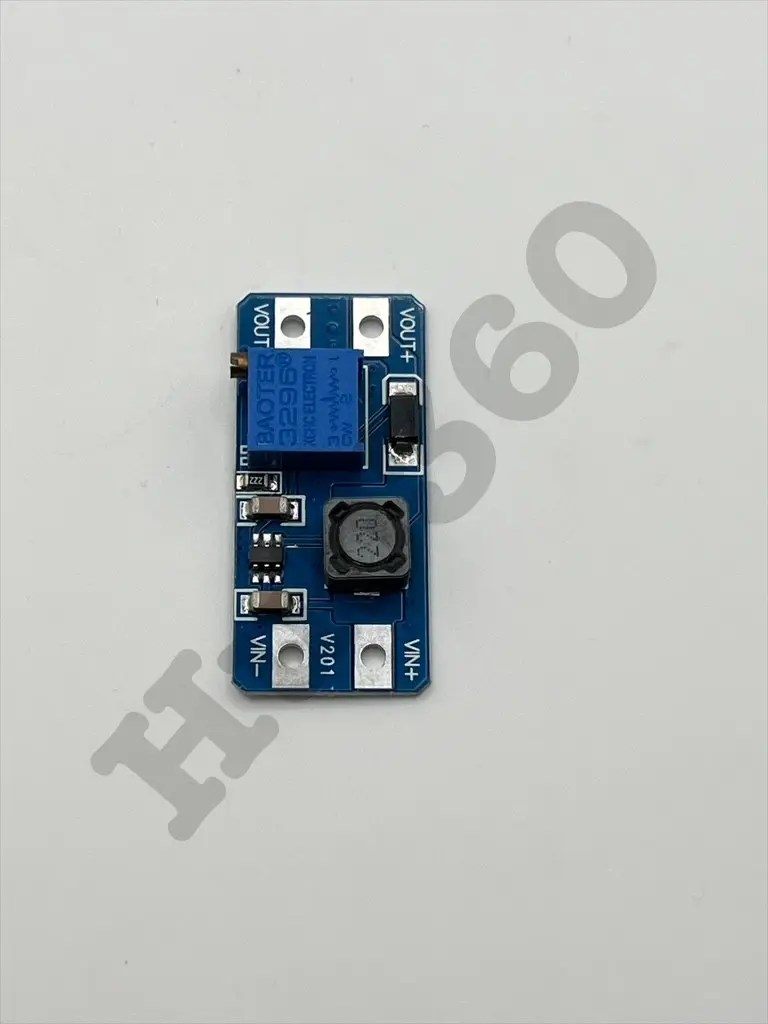

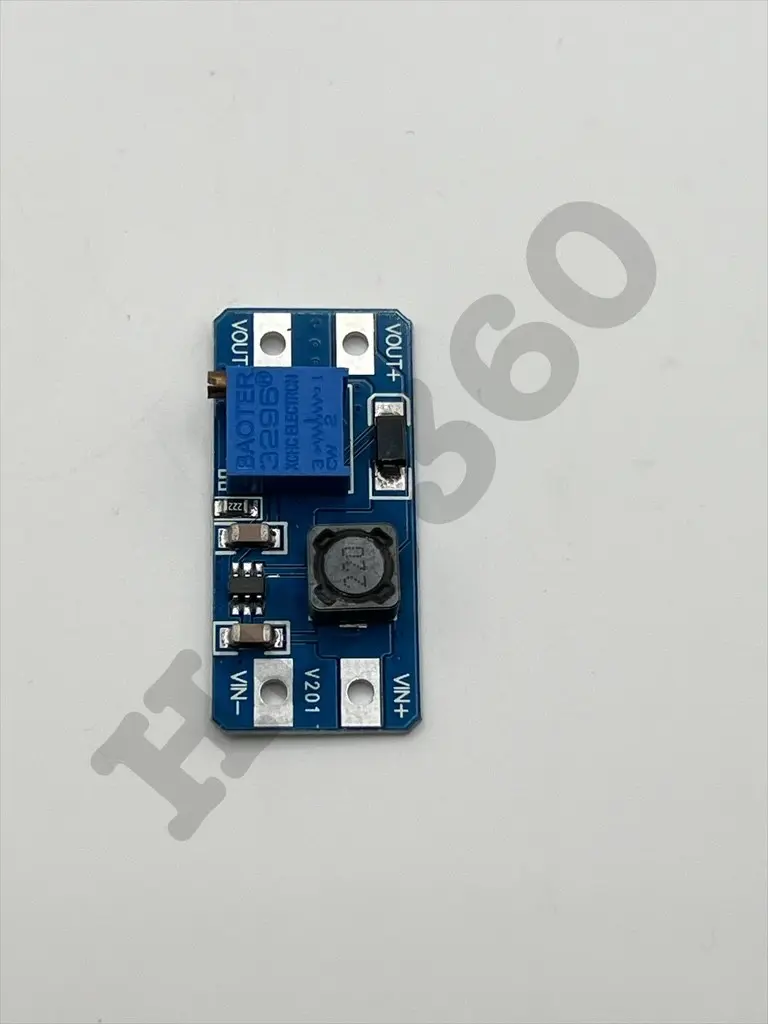

MT3608 DC-DC Boost Module 2A
7 sold in last 24 hours
The MT3608 DC-DC Boost Module is a versatile step-up (boost) converter that can increase a lower input voltage to a higher output voltage. Capable of delivering up to 2A of current, this module is ideal for applications that require stable and adjustable voltage conversion from a lower input voltage source. It is commonly used in power supply circuits, battery-powered devices, and various electronic projects.
Key Features:
Key Features:
- Converts lower input voltage to a higher output voltage
- Maximum output current of 2A
- Wide input voltage range
- Adjustable output voltage
- Compact design for easy integration
- High efficiency and low power dissipation
- Input Voltage Range: 2V to 24V DC
- Output Voltage Range: 5V to 28V DC (adjustable)
- Maximum Output Current: 2A
- Efficiency: Up to 93% (typical)
- Switching Frequency: 1.2MHz (typical)
- Power Dissipation: Depends on load and input/output conditions
- Operating Temperature Range: -40°C to +85°C
- Dimensions: 22mm x 17mm x 4.5mm (approximately)
- Mounting Type: Typically through-hole or surface mount
- Battery-Powered Devices: Steps up battery voltage to a required level for operation.
- Power Supply Circuits: Provides regulated higher voltage for electronic circuits.
- DIY Projects: Useful in hobbyist projects where voltage boosting is needed.
- Portable Electronics: Powers devices that require a higher voltage from a low voltage source.
- LED Lighting: Used to drive LEDs or other components requiring higher voltage.
