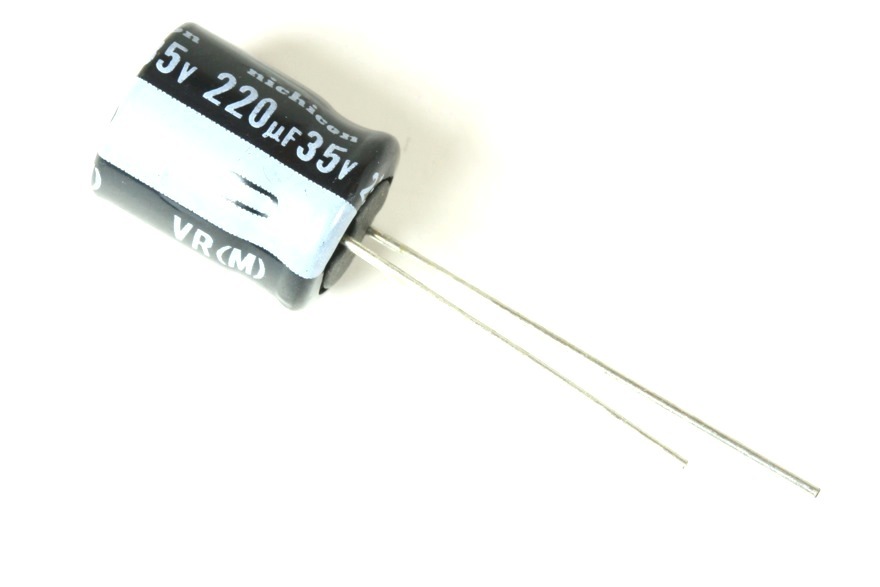

220uf 35V electrolytic capacitor
The 220µF 35V Electrolytic Capacitor is a high-capacitance component used in electronic circuits for tasks such as filtering, smoothing, and energy storage. With a capacitance of 220µF and a maximum voltage rating of 35V, it is suitable for various applications including power supply filtering, signal coupling, and decoupling in electronic devices.
Key Features:
- Capacitance: 220µF for effective energy storage and filtering
- Voltage Rating: 35V maximum, suitable for circuits with voltages up to 35V
- Electrolytic Type: Polarized capacitor with a high capacitance value in a compact size
- Low ESR: Designed to provide efficient filtering and stabilization
- Durable Construction: Made with high-quality materials for reliability and longevity
- Capacitance: 220µF
- Voltage Rating: 35V DC
- Tolerance: Typically ±20%
- ESR (Equivalent Series Resistance): Low ESR for improved performance
- Operating Temperature Range: -40°C to +85°C
- Lead Spacing: Typically 5mm or 2.5mm (varies by part number)
- Dimensions: Varies by manufacturer, typically around 10mm diameter x 20mm height
- Mounting Type: Radial (leads extend from the bottom of the capacitor)
- Power supply filtering and decoupling
- Signal coupling and bypassing
- Energy storage in electronic circuits
- Smoothing of voltage levels
- General-purpose electronic projects
- Polarity: Ensure correct polarity as electrolytic capacitors are polarized.
- Connection: Connect the positive lead to the positive voltage supply and the negative lead to the ground or negative voltage rail.
- Mounting: Securely mount and solder the capacitor on the PCB to ensure proper connections.
- Verification: Check the capacitor’s voltage rating and capacitance to ensure compatibility with your circuit.
- Voltage Rating: Do not exceed the maximum voltage rating to prevent capacitor failure.
- Polarity: Ensure correct polarity to avoid damage or leakage.
- Handling: Handle with care to prevent physical damage to the capacitor.
- Storage: Store in a cool, dry place to avoid deterioration.
