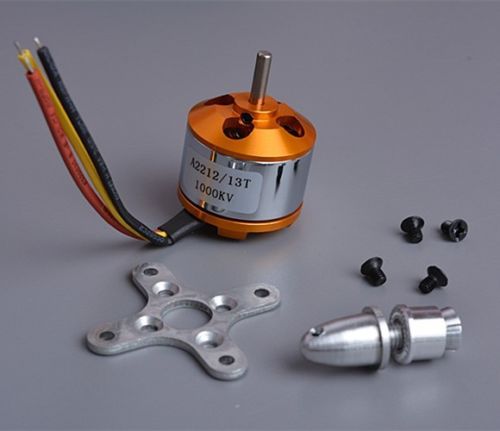

Brushless motor A2212 1000KV
The Brushless Motor A2212 1000KV is a powerful and efficient motor designed for use in a variety of RC models, including drones, airplanes, and helicopters. With a KV rating of 1000, this motor provides a balanced combination of speed and torque, making it ideal for both beginners and experienced hobbyists. Its brushless design ensures longer life, higher efficiency, and reduced maintenance compared to brushed motors.
Key Features:
Key Features:
- High KV Rating: 1000KV for a balance of speed and torque
- Brushless Design: Enhances efficiency, lifespan, and performance
- Durable Construction: Made from high-quality materials for reliability and longevity
- Versatile Applications: Suitable for drones, airplanes, and other RC models
- Compact and Lightweight: Easy to integrate into various setups
- KV Rating: 1000KV
- Motor Dimensions: 28mm diameter, 22mm length
- Shaft Diameter: 3.17mm
- Weight: Approximately 50g
- Voltage Range: 7.2V to 12V (2-3S LiPo)
- Current Rating: 10A continuous, 12A peak
- Power Output: Up to 180W
- Mounting Holes: Standard 16mm/19mm spacing
- Connectors: Pre-soldered 3.5mm bullet connectors
- RC drones and quadcopters
- RC airplanes and gliders
- RC helicopters
- DIY electronics and robotics projects
- Any application requiring a high-performance brushless motor
- Mount the motor on your RC model using the appropriate screws and mounting holes.
- Connect the motor wires to the Electronic Speed Controller (ESC) using the bullet connectors.
- Ensure the motor is securely attached and all connections are tight.
- Test the motor by gradually increasing throttle and checking for smooth operation.
- Verify the motor's voltage and current ratings match your ESC and battery specifications.
- Ensure proper cooling and ventilation to prevent overheating.
- Avoid running the motor without load for extended periods.
- Handle the motor carefully to avoid damaging the windings and magnets.
