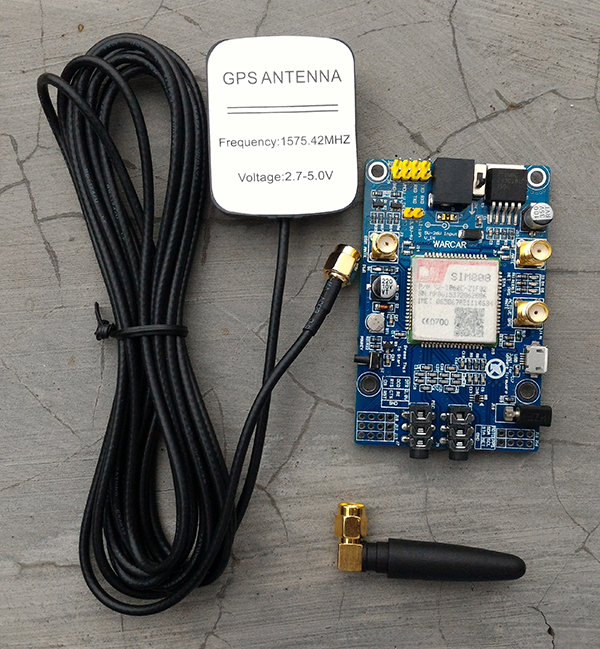

Sim808 + GPS ANTENNA + GPRS ANTENNA

The Sim808 module is an integrated GSM/GPRS and GPS solution designed for versatile IoT and M2M applications. It combines GPS technology for satellite navigation and GSM/GPRS functionality for cellular communication in a compact form factor, making it ideal for various tracking and remote monitoring projects. This package includes both GPS and GPRS antennas for enhanced connectivity and performance.
Key Features:

• GSM/GPRS Module: Provides 850/900/1800/1900 MHz quad-band support for cellular communication.
• GPS Functionality: Integrated GPS receiver for accurate location tracking.
• Compact Design: Combines GSM/GPRS and GPS functions in a single module.
• Low Power Consumption: Efficient performance with minimal power usage.
• Antenna Included: Comes with GPS and GPRS antennas for reliable signal reception.

• GSM/GPRS:
  • Frequency Bands: 850/900/1800/1900 MHz
  • GPRS Multi-slot Class 12
  • GPRS Mobile Station Class B
  • SIM Interface: 1.8V/3V
  • Serial Communication: UART
  • Data Transmission: SMS, MMS, GPRS, Internet
• GPS:
  • Receiver Type: 22 tracking / 66 acquisition channels
  • GPS L1 C/A Code
  • Sensitivity: -165 dBm tracking
  • Cold Start: <35s
  • Hot Start: <1s
  • Accuracy: <2.5m CEP
• Power Supply:
  • Operating Voltage: 3.4V to 4.4V
  • Current Consumption: <2.0mA in sleep mode
• Antenna:
  • GPS Antenna: Included
  • GPRS Antenna: Included

• Vehicle tracking
• Asset tracking
• Remote monitoring systems
• IoT applications
• Security systems

1. Connect the Sim808 module to your microcontroller or computer using the appropriate serial interface.
2. Attach the included GPS and GPRS antennas to the module.
3. Insert a SIM card into the SIM card slot.
4. Power the module using a suitable power supply within the specified voltage range.
5. Use AT commands to communicate with the module for sending SMS, making calls, or obtaining GPS location data.
6. Integrate the module into your application for real-time tracking and communication.

• Ensure the power supply voltage is within the specified range to avoid damage.
• Handle the module with care to prevent static discharge and damage to the components.
• Use the included antennas for optimal signal reception and performance.
