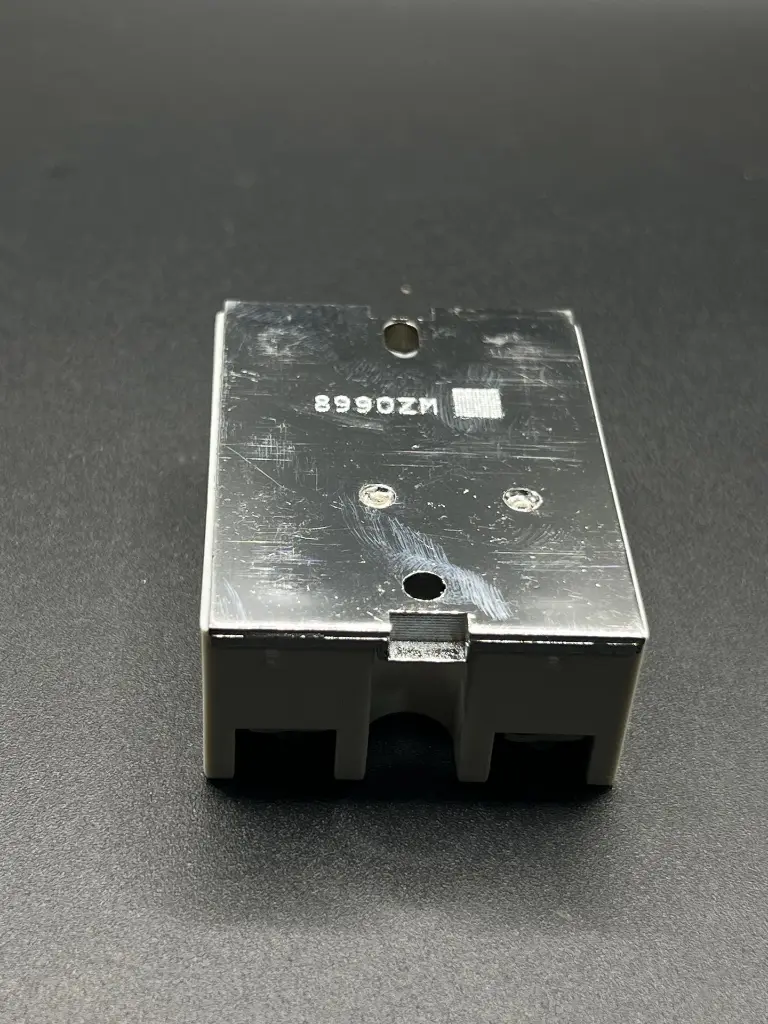

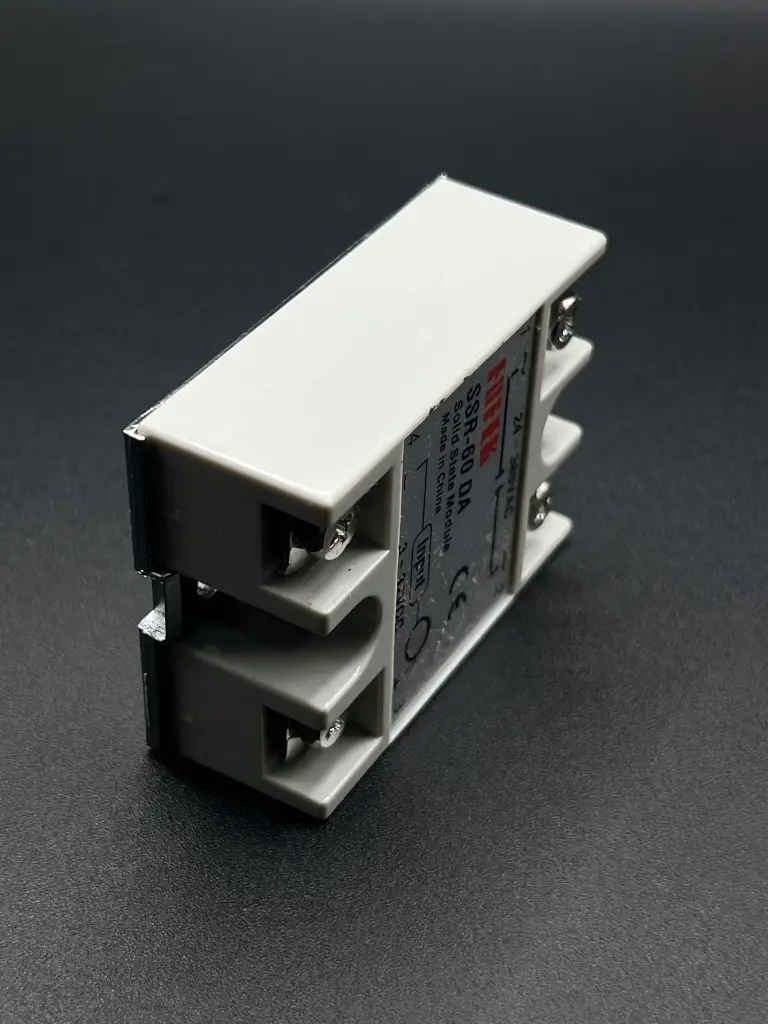

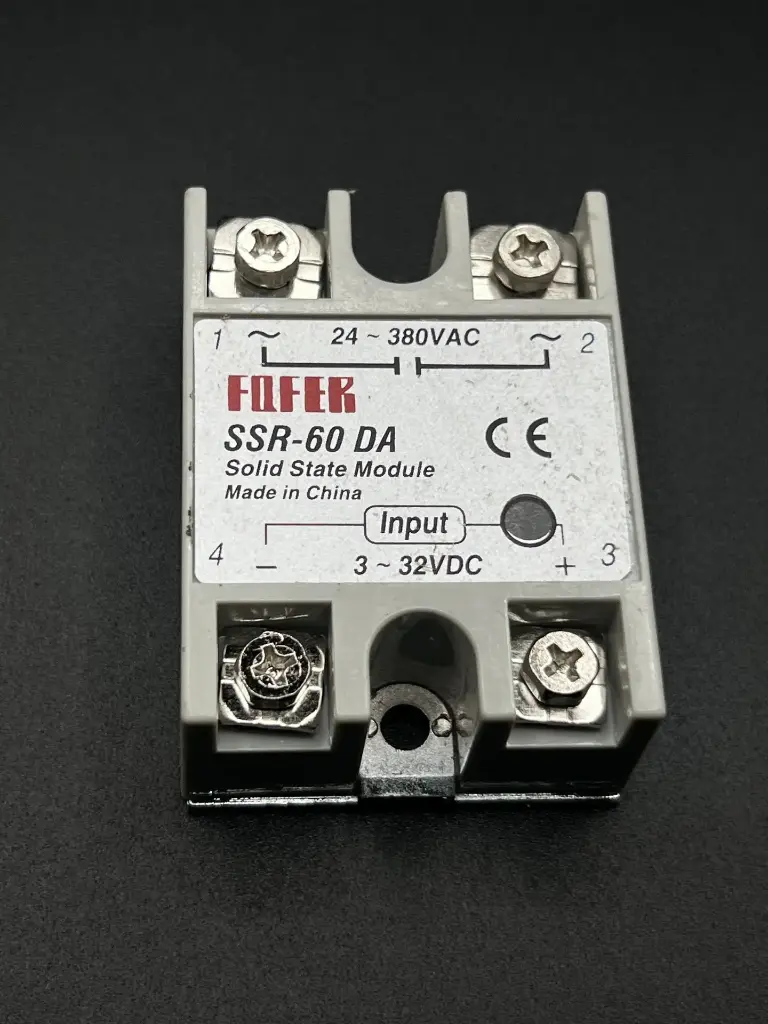

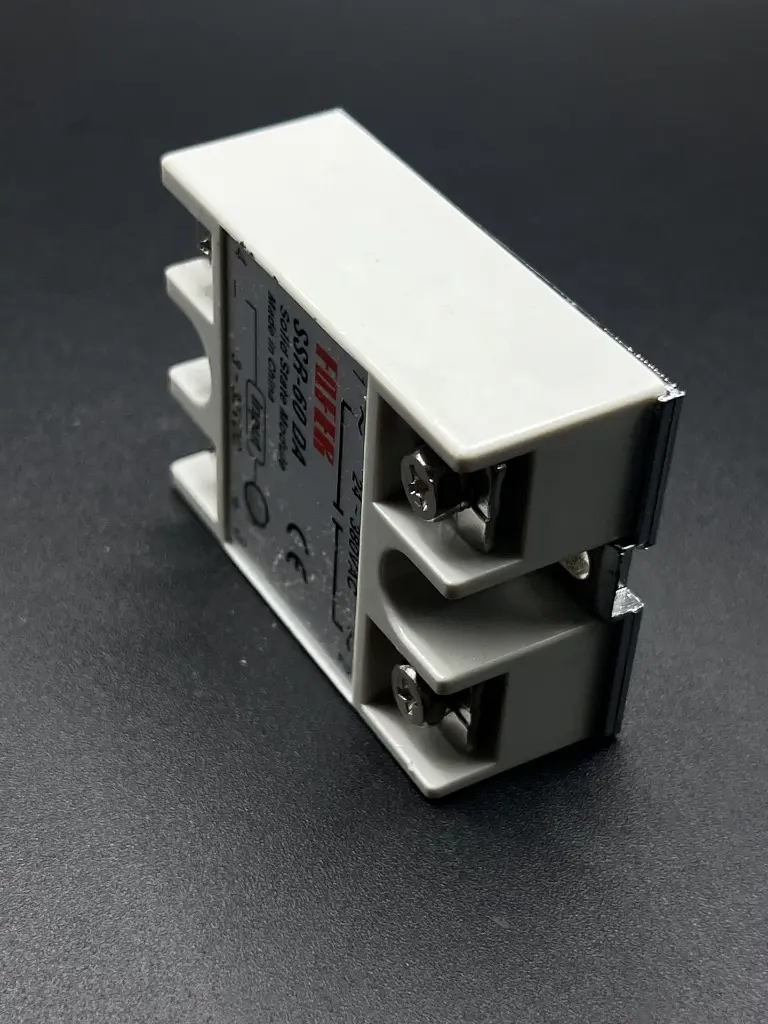

The 60A Solid State Relay (SSR) is an electronic switching device that uses semiconductor components to switch electrical loads. It provides a reliable and silent operation with no mechanical wear and tear, ideal for high current applications.
Key Features:
- High Current Capacity: Handles up to 60A of load current.
- No Mechanical Contacts: Provides reliable, silent operation with no moving parts.
- Fast Switching: Quick response time for efficient control.
- High Isolation: Offers electrical isolation between the control and load circuits.
- Durable Construction: Designed for long-term reliability in demanding environments.
- Load Current: 60A
- Control Voltage: 3-32V DC
- Load Voltage: 24-380V AC
- Switching Type: Zero-crossing (for resistive loads) or random (for inductive loads)
- Isolation Voltage: 4000V AC
- On-State Voltage Drop: ≤ 1.5V
- Turn-On Time: < 10ms
- Turn-Off Time: < 10ms
- Temperature Range: -40°C to +80°C
- Mounting Type: DIN rail or panel mount
- Industrial automation
- Heating control
- Motor control
- Lighting control
- AC load switching
- Connect the control input terminals to a DC control signal (3-32V DC).
- Connect the load terminals to the AC load circuit (24-380V AC).
- Ensure correct wiring and connections according to the relay specifications.
- Apply the control voltage to switch the AC load on or off.
- Ensure proper heat dissipation to avoid overheating.
- Follow the wiring diagram to prevent electrical hazards.
- Do not exceed the maximum load current and voltage ratings.
