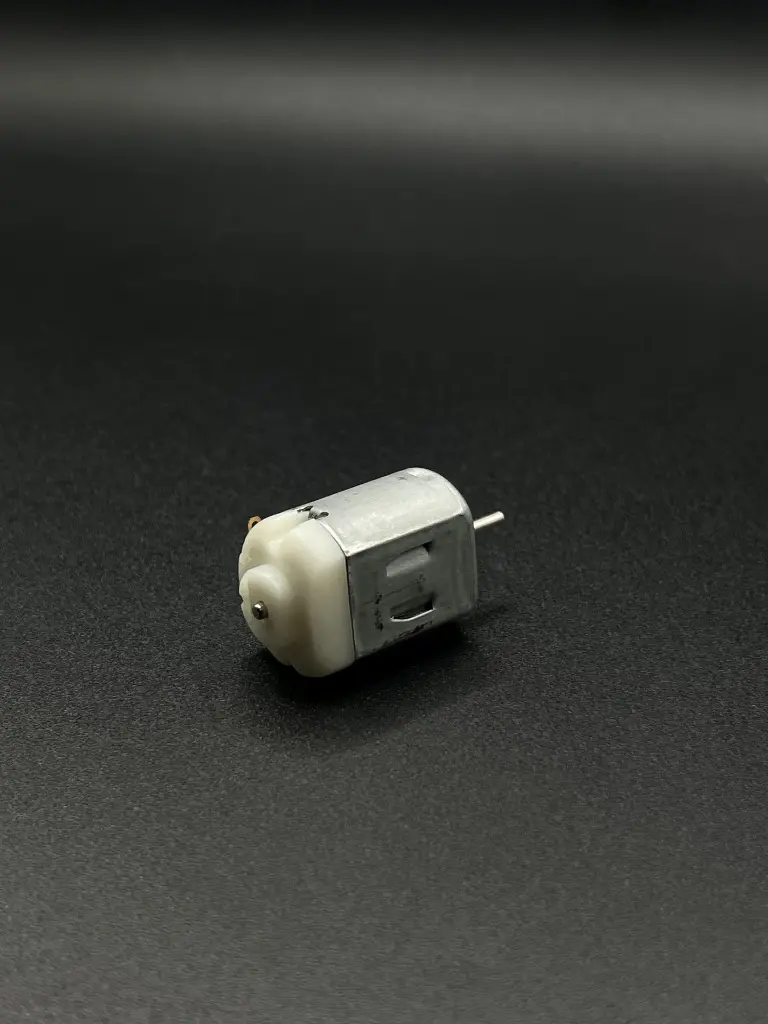

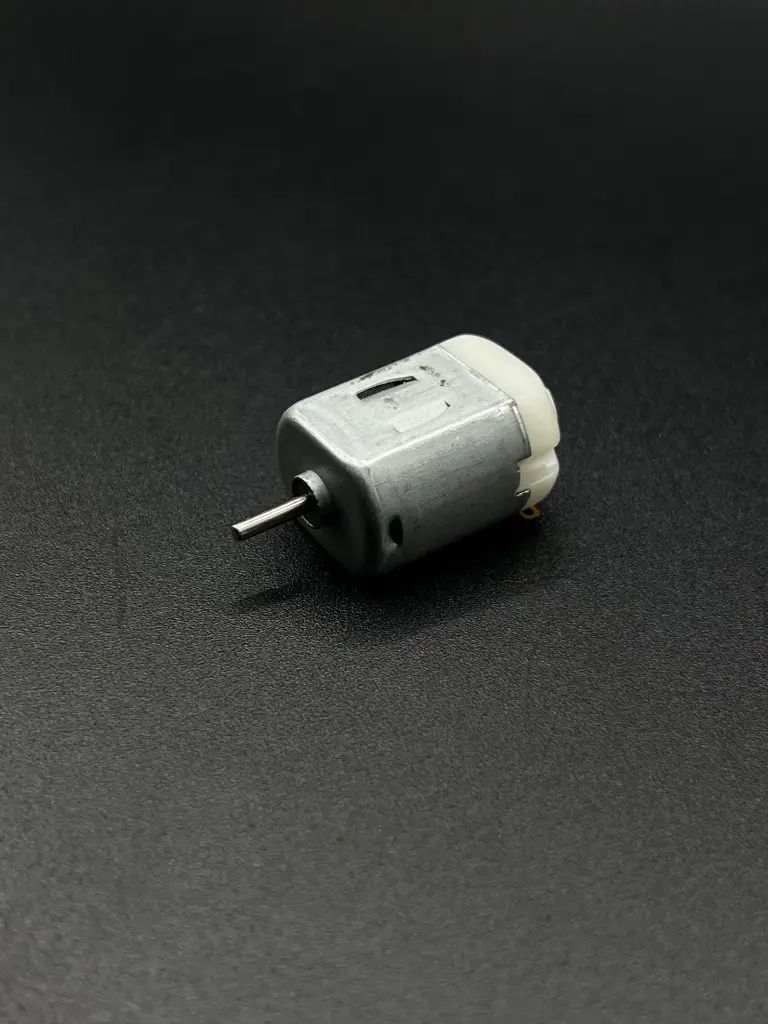

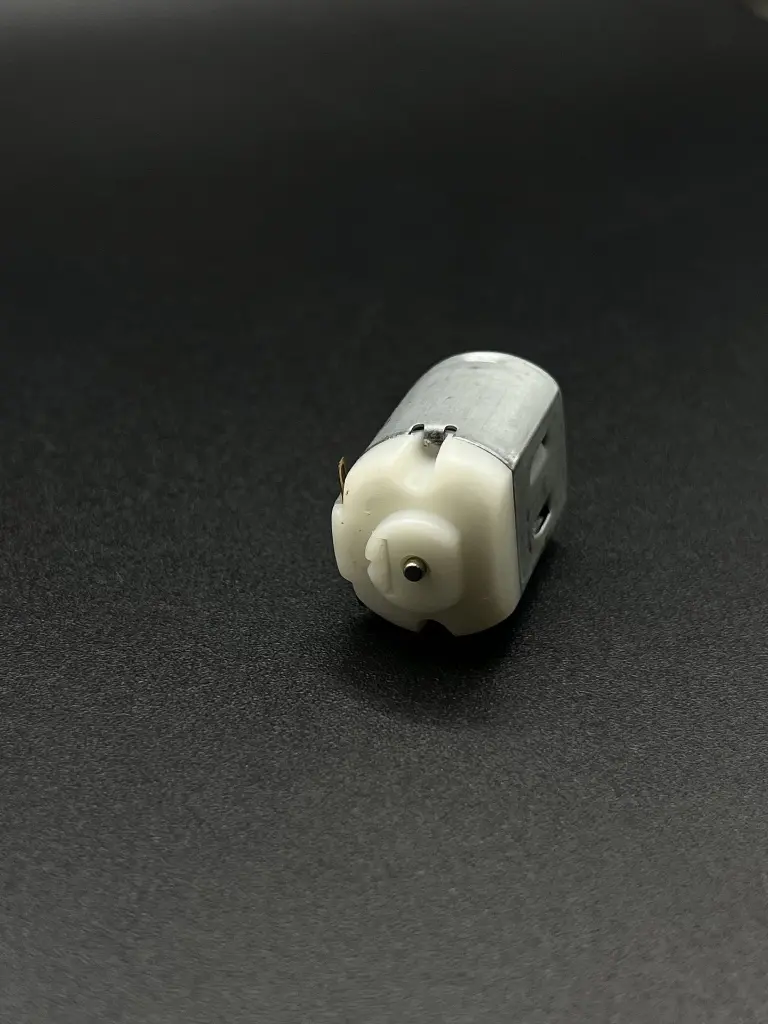

The 5V DC Motor is a small, efficient motor designed for low-voltage applications. It operates on a 5V DC power supply and is commonly used in various electronics projects, including robotics, toys, and small appliances. Its compact size and reliable performance make it suitable for a wide range of applications requiring precise and controlled movement.
Key Features:
- Operates on a 5V DC power supply
- Compact and lightweight design
- Low power consumption
- High efficiency and reliable performance
- Easy to integrate into various projects
- Available with different mounting options
- Operating Voltage: 5V DC
- No-Load Speed: 1000-3000 RPM (varies by model)
- No-Load Current: 50-100mA (varies by model)
- Stall Torque: 1.5-3.0 kg-cm (varies by model)
- Stall Current: 200-500mA (varies by model)
- Dimensions: 30mm x 25mm x 20mm (length x width x height, approximate)
- Weight: 30g (approximate)
- Shaft Diameter: 2mm to 3mm (varies by model)
- Operating Temperature Range: -10°C to +50°C
- Robotics: Used in small robots for driving wheels or actuators.
- Toys: Commonly found in battery-operated toys for movement.
- DIY Projects: Ideal for hobbyist projects requiring controlled motion.
- Model Railroads: Employed in model trains and accessories.
- Small Appliances: Used in devices such as fans, small pumps, and automatic gadgets.
