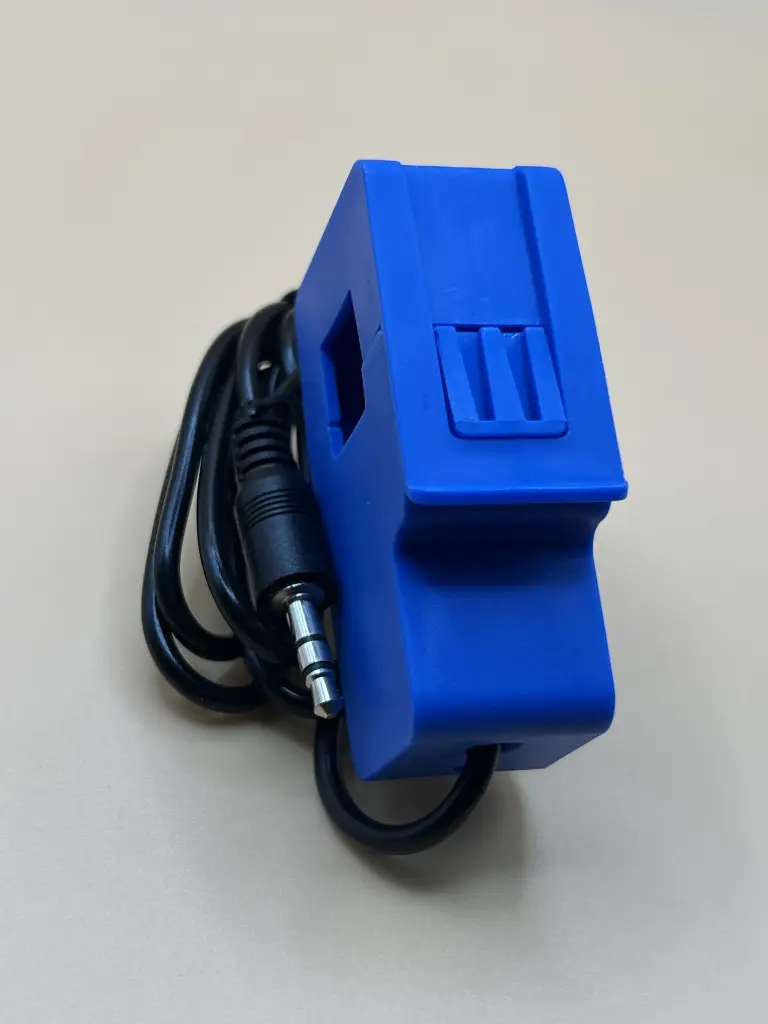

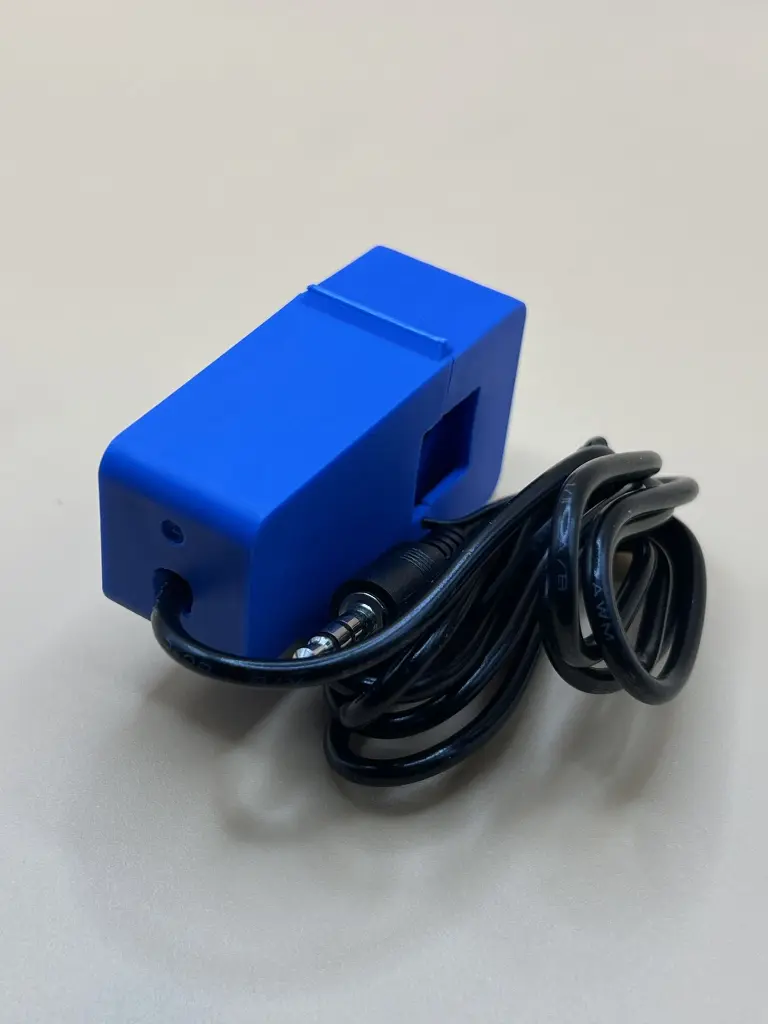

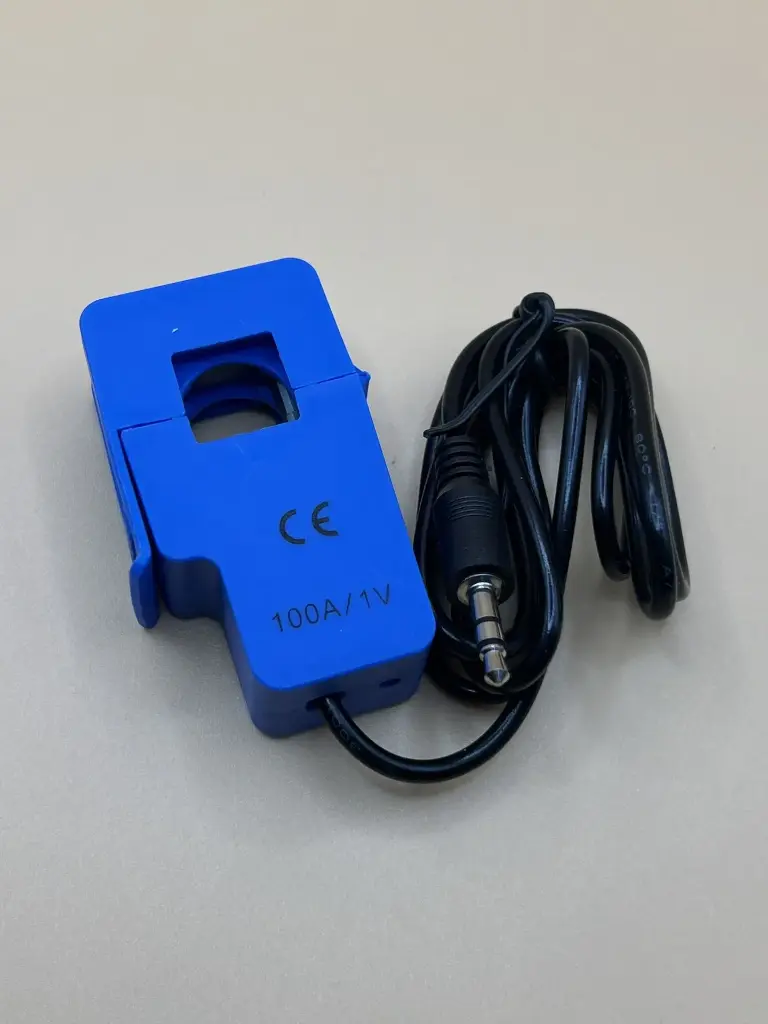

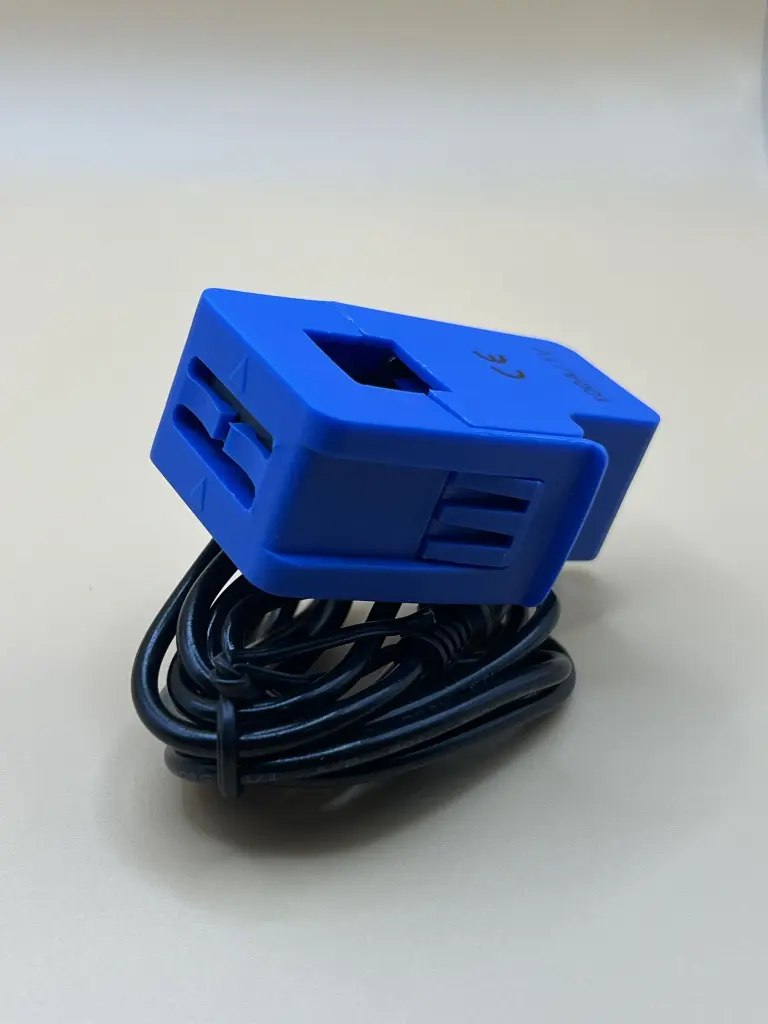

Current Transformer / sensor SCT-013 100A
9 sold in last 24 hours
The SCT-013 100A is an AC current transformer designed for measuring alternating current up to 100A. Its split-core design allows for easy installation around existing conductors, making it particularly suitable for DIY projects. It is compatible with microcontrollers such as Arduino and Raspberry Pi, making it ideal for energy monitoring, over-current protection, and various electrical measurement applications.
Key Features:
- Measures AC currents up to 100A
- Split-core design for easy installation and removal
- Compatible with Arduino and Raspberry Pi for DIY projects
- Provides isolation between high-current conductors and measurement circuits
- Suitable for various applications including energy monitoring and over-current protection
- Rated Current: 100A (AC)
- Output: 1V at rated current
- Burden Resistance: 10Ω
- Accuracy: ±1% (typically)
- Frequency Range: 50Hz to 60Hz
- Core Material: Ferrite
- Maximum Temperature Rating: 70°C
- Insulation Resistance: ≥100 MΩ at 500V DC
- Output Load Resistance: 10Ω (typical)
- Dimensions: 80mm x 60mm x 30mm (L x W x H)
- Energy monitoring systems
- Over-current protection devices
- Lighting equipment
- AC motors
- Air compressors
- Current measurement and monitoring
- Open the split-core and position it around the conductor carrying the current to be measured.
- Close the core securely to ensure accurate measurement.
- Connect the output terminals to your Arduino, Raspberry Pi, or other measurement devices.
- Configure your measurement device to interpret the output signal appropriately.
- Do not exceed the rated current to avoid damage.
- Ensure proper insulation and safety measures during installation.
- Follow the manufacturer's guidelines for installation and operation.
