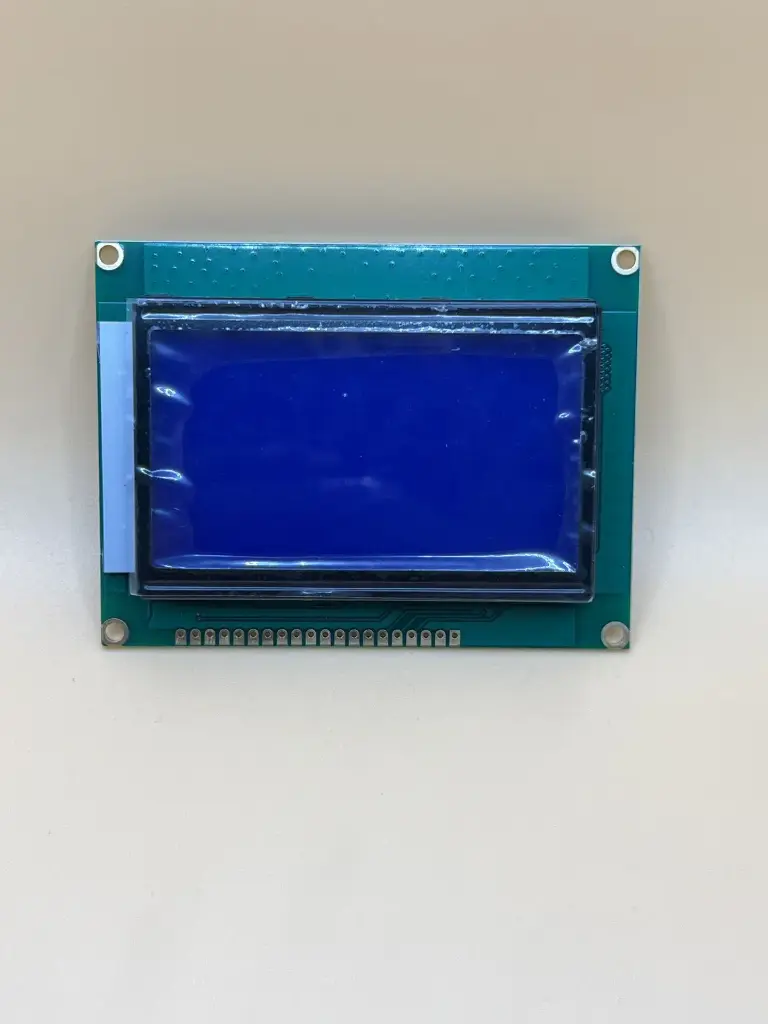

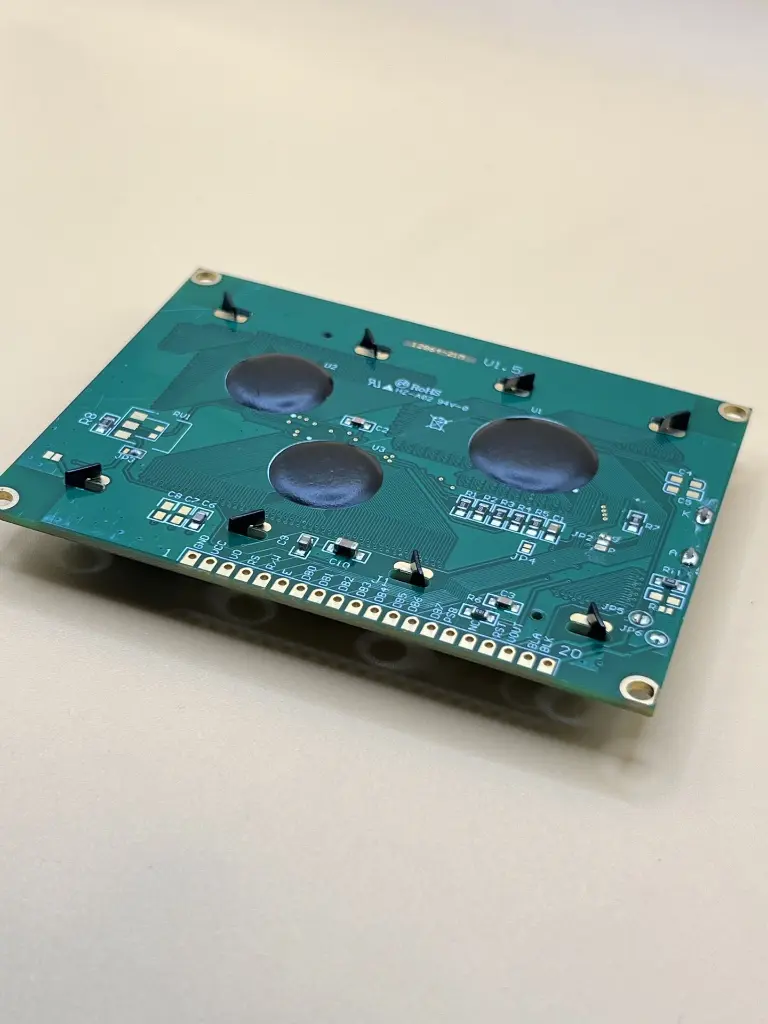

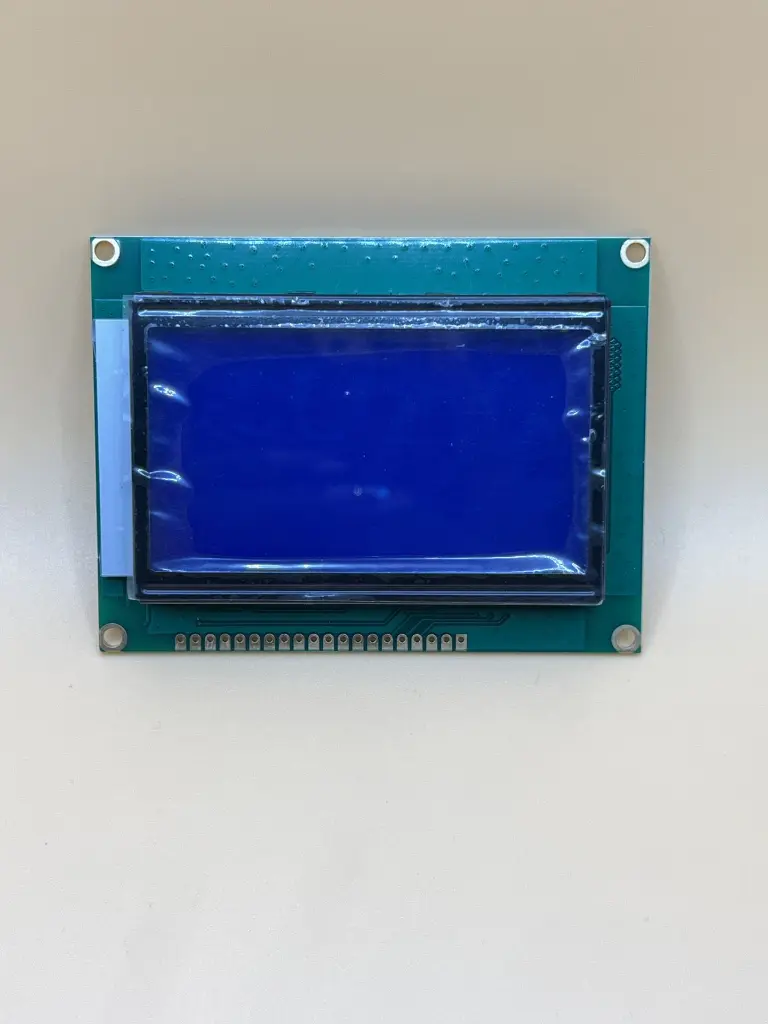

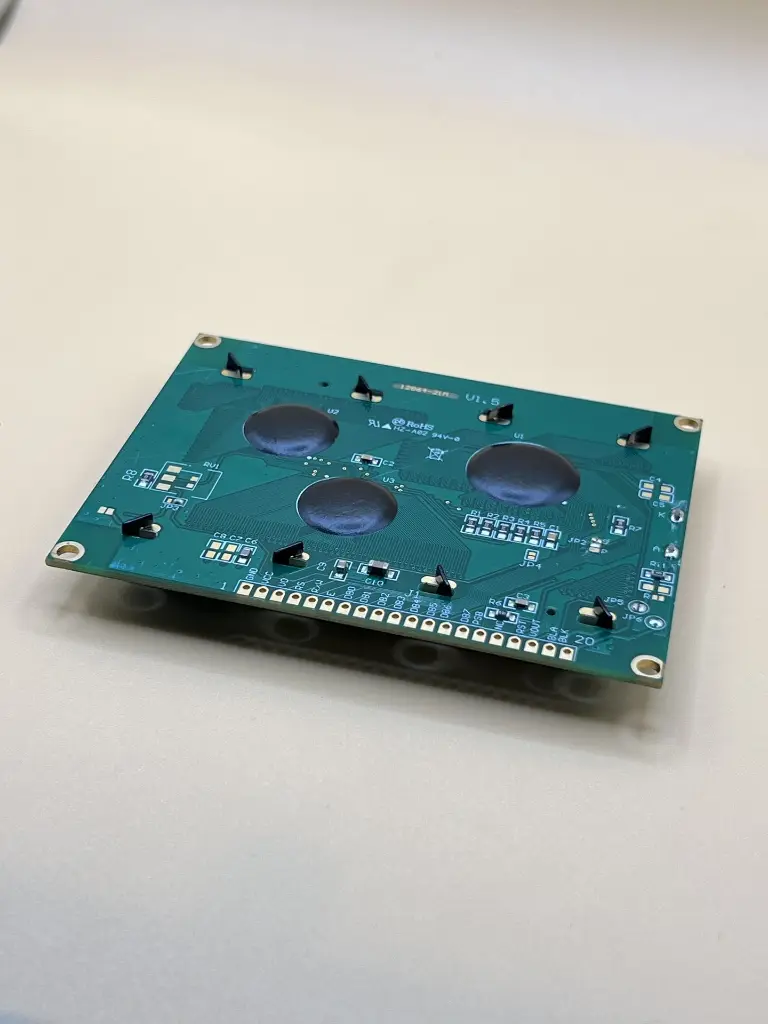

The GLCD 12864 is a 128x64 pixel graphical LCD display module, perfect for applications requiring clear and detailed visual output. Its high-contrast display with LED backlight support ensures excellent readability, making it suitable for industrial controls, medical devices, consumer electronics, and more.
Key Features:
High-resolution 128x64 pixel display
LED backlight (available in white or blue)
Wide viewing angle
Compact and lightweight design
Low power consumption
Technical Specifications:
Display Type: Graphical LCD
Resolution: 128x64 pixels
Backlight Type: LED (White or Blue)
Controller: KS0108 or equivalent
Interface: Parallel or Serial (SPI)
Viewing Area: 72.0mm x 40.0mm
Operating Voltage: 5V
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -30°C to +80°C
Applications:
Industrial control systems
Medical devices
Consumer electronics
Portable devices
Instrumentation panels
Automotive displays
Usage:
Connect the GLCD module to your microcontroller or development board using the appropriate interface (Parallel or SPI).
Initialize the display using the correct driver or library for the KS0108 controller or its equivalent.
Send commands and data to the display to render text, graphics, and images.
Adjust the backlight and contrast settings to optimize visibility according to the application’s environment.
Integrate the GLCD into your system for real-time display of information and user interface elements.
Caution:
Handle the display module with care to avoid damage to the LCD and backlight.
Ensure correct voltage levels are used to prevent damage to the module.
Avoid exposure to excessive moisture and extreme temperatures to maintain display quality and longevity.
Datasheet:
For detailed technical specifications, refer to the GLCD 12864 Datasheet.
