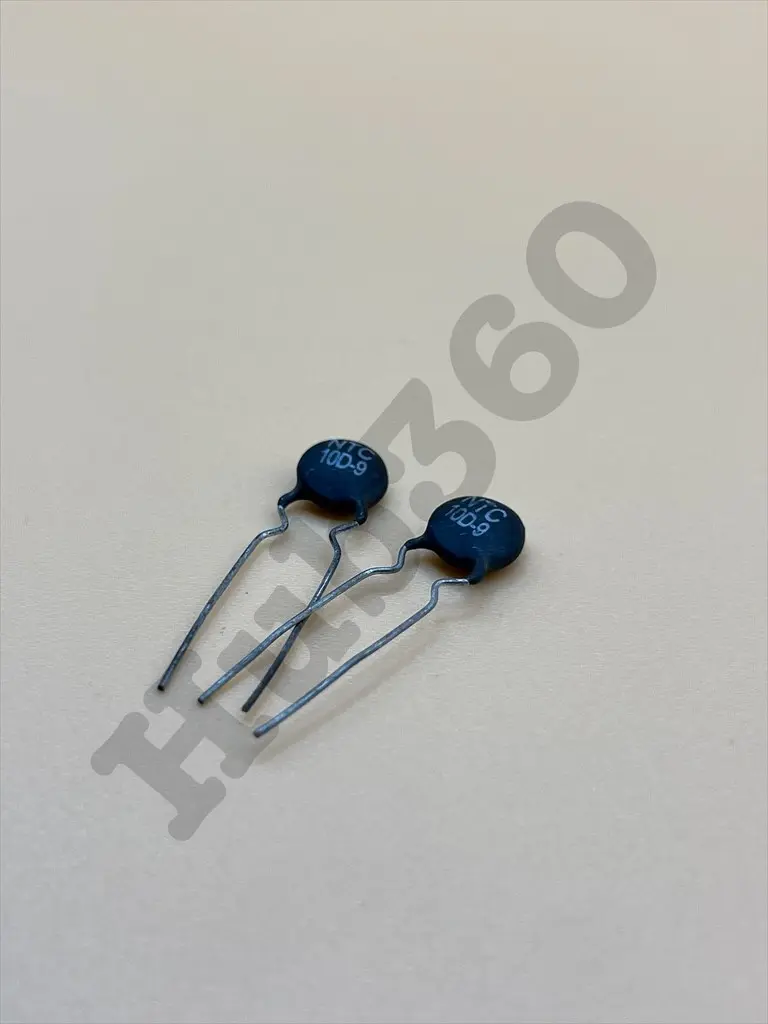

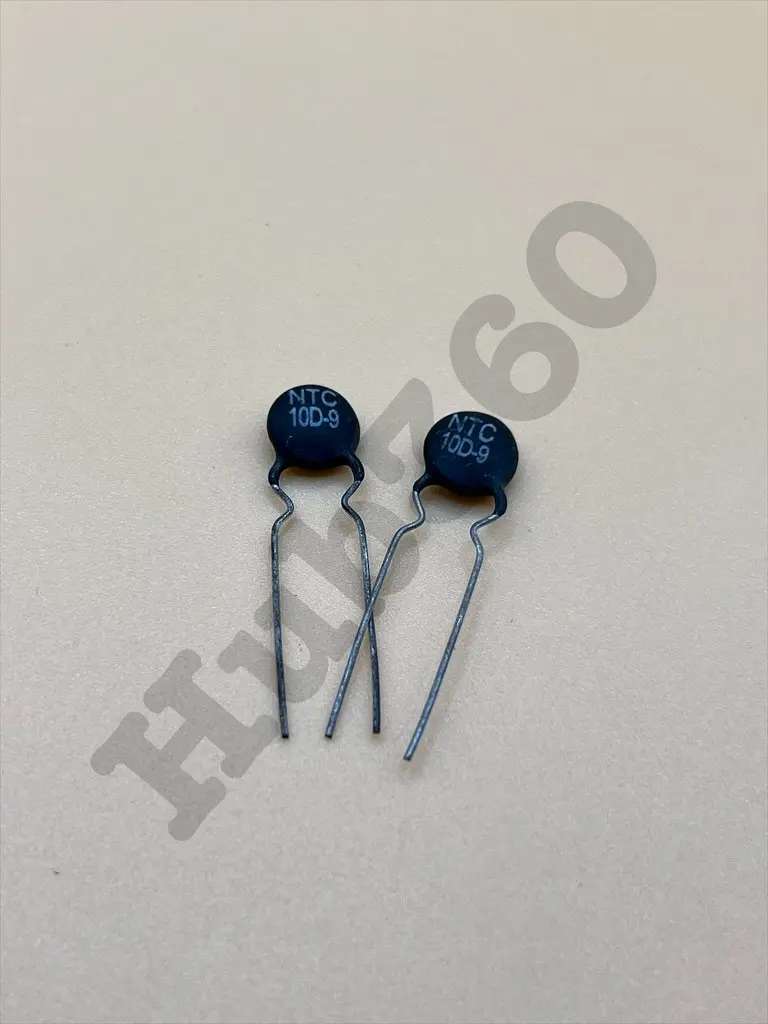

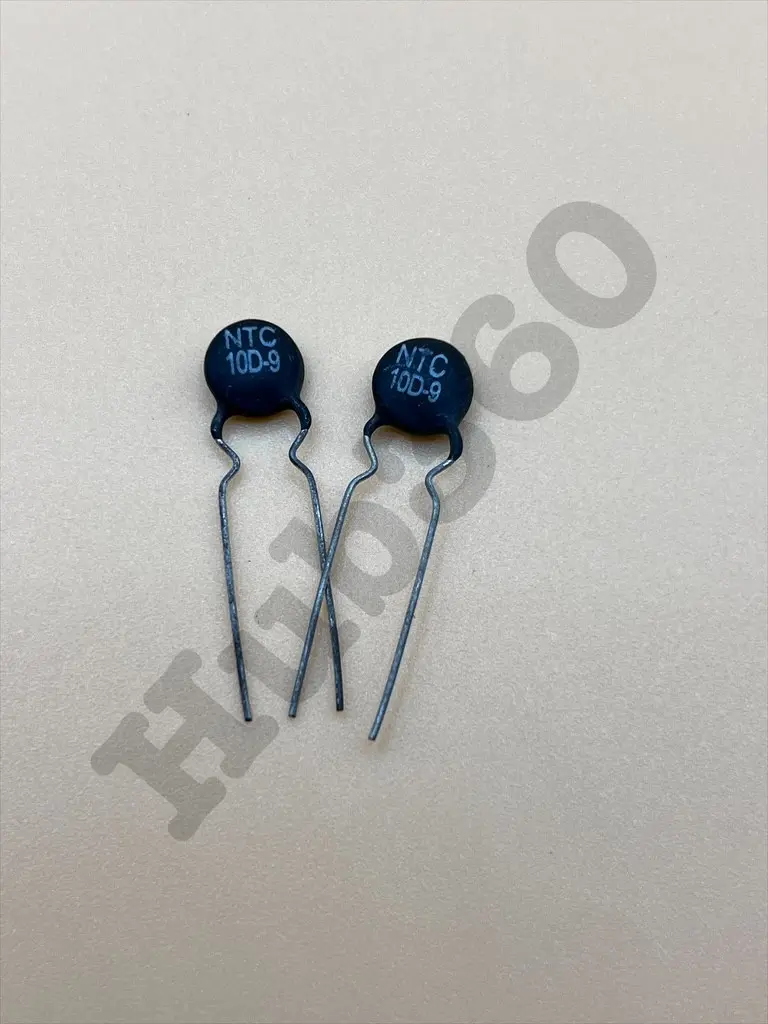

The NTC 10D-9 is a Negative Temperature Coefficient (NTC) thermistor designed for precise temperature measurement and control. Its resistance decreases as temperature increases, making it suitable for various temperature sensing and compensation applications. With its compact size and reliable performance, the NTC 10D-9 is ideal for use in consumer electronics, power supplies, and industrial equipment.
Key Features:
- Negative Temperature Coefficient (NTC) thermistor
- High precision and sensitivity
- Rapid response to temperature changes
- Compact and robust design
- Suitable for temperature measurement and compensation
- Wide operating temperature range
- Rated Zero Power Resistance @ 25°C: 10Ω ±20%
- Maximum Steady Current @ 25°C: 2A
- Residual Resistor at Maximum Steady Current @ 25°C: 0.458Ω
- B Value (25/50): 2800K ±10%
- Thermal Time Constant: <32s
- Heat Dissipation Coefficient: >11mW/°C
- Operating Temperature Range: -40°C to +175°C
- Diameter: 9mm
- Temperature sensing
- Temperature compensation
- Overcurrent protection
- Power supply circuits
- Consumer electronics
- Industrial equipment
- Integrate the NTC 10D-9 thermistor into your circuit for accurate temperature sensing or compensation.
- Connect the thermistor in series or parallel with other components as required by your application.
- Ensure proper calibration for precise temperature measurement.
- Monitor the thermistor’s response to temperature changes for optimal performance.
- Handle with care to avoid mechanical stress and damage.
- Verify the correct resistance and temperature coefficient values for your application.
- Follow the manufacturer’s guidelines for circuit design and integration.
