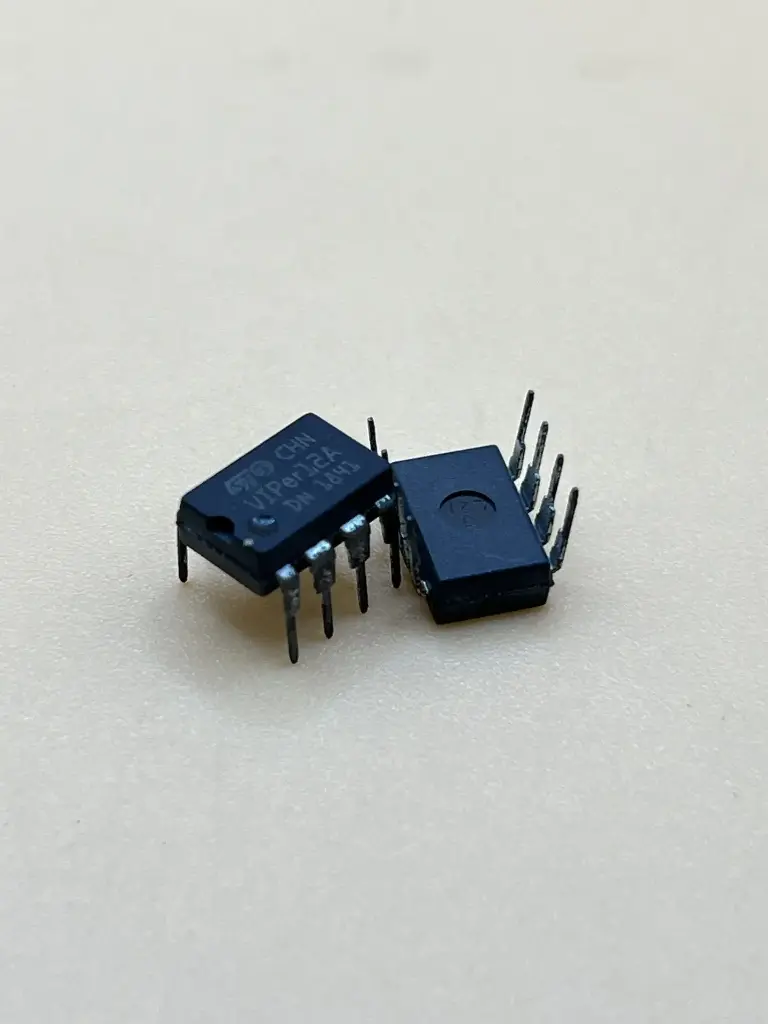

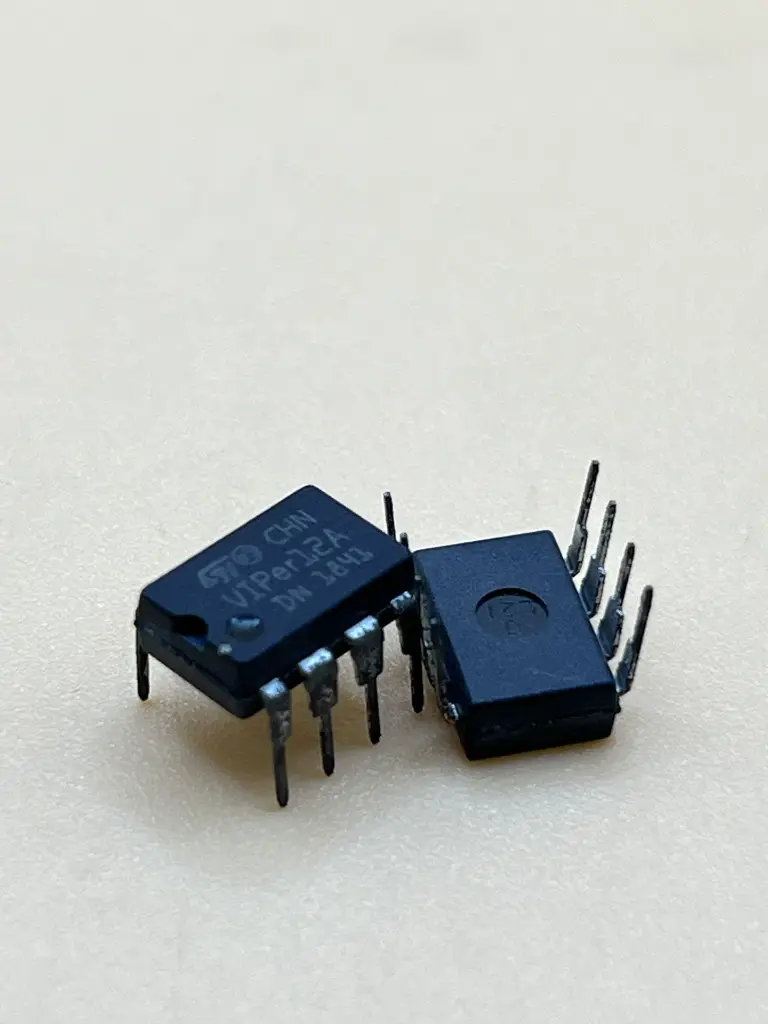

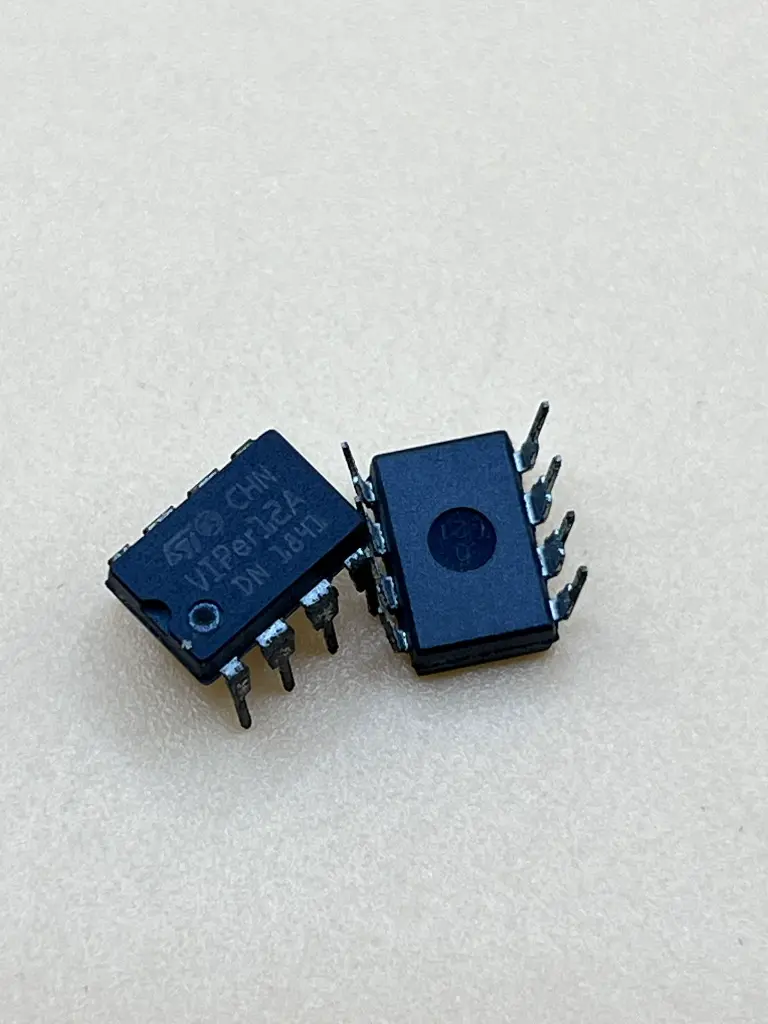

The VIPER12 is a high-performance integrated circuit designed for off-line power conversion applications. This versatile power chip integrates a high-voltage startup cell, a pulse-width modulation (PWM) controller, and a high-voltage power switch to deliver efficient and reliable power conversion. Ideal for use in a wide range of electronic devices, the VIPER12 ensures stable output with minimal external components.
Key Features:
- Integrated high-voltage startup cell and PWM controller
- High-voltage power switch for efficient operation
- High power density with minimal external components
- Adjustable output voltage and current
- Built-in protection features for enhanced reliability
- Low standby power consumption
- Wide input voltage range
- Input Voltage: 85V to 265V AC
- Output Voltage: Adjustable (typically 5V to 12V DC)
- Output Current: Up to 1A
- Power Rating: 10W to 15W
- Efficiency: Up to 85%
- Operating Temperature Range: -40°C to +125°C
- Protection Features: Overcurrent, overvoltage, thermal protection, and short-circuit protection
- Power adapters for consumer electronics
- Small home appliances
- Industrial power supplies
- Communication devices
- LED lighting systems
- Connect the input power to the VIPER12 within the specified voltage range.
- Adjust the output voltage to the desired level using external components.
- Ensure proper cooling and ventilation to maintain optimal operating temperature.
- Integrate the power chip into your design for efficient power conversion.
- Verify input voltage before connecting to prevent damage.
- Avoid exposure to excessive heat or moisture.
- Handle with caution to prevent electrical shock or component damage.
