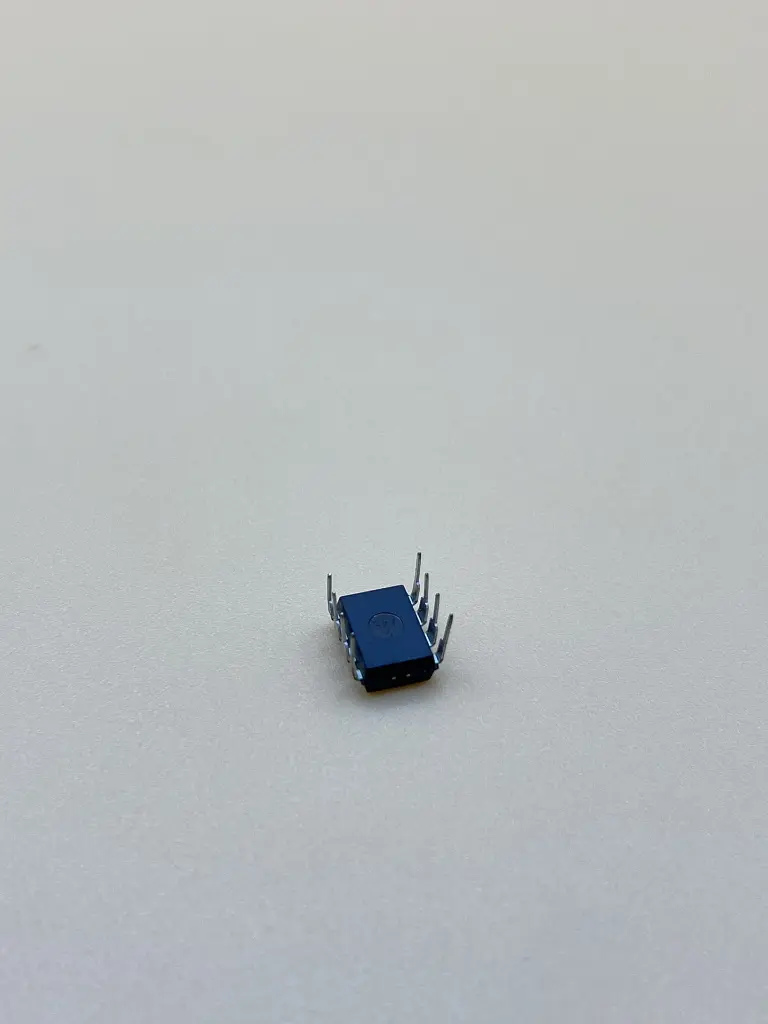

The PCF8563 is a real-time clock (RTC) IC designed by NXP Semiconductors for accurate timekeeping in a variety of electronic devices. It provides precise time and date information, including hours, minutes, seconds, day, date, month, and year. The PCF8563 features a low power consumption design, making it suitable for battery-operated applications.
Key Features:
- Accurate real-time clock with time and date functions
- Integrated calendar with day of the week, date, month, and year
- Low power consumption for battery-operated devices
- I²C-compatible interface for easy communication with microcontrollers
- Integrated oscillator with 32.768 kHz crystal for timekeeping
- Programmable alarms and timekeeping functions
- Built-in power fail detection and backup battery support
- Power Supply Voltage: 1.8V to 5.5V
- Clock Accuracy: ±2 minutes per month (typical)
- Interface: I²C (up to 400 kHz)
- Oscillator Frequency: 32.768 kHz
- Operating Temperature Range: -40°C to +85°C
- Clock Functions: Hours, minutes, seconds, day, date, month, year
- Alarm Functions: Programmable alarms with interrupt output
- Backup Battery: Supported for maintaining time during power outages
- Timekeeping in electronic devices
- Digital clocks and watches
- Data loggers and event recorders
- Consumer electronics with time-based functions
- Battery-operated devices requiring accurate timekeeping
- Connect the PCF8563 to your microcontroller using the I²C interface.
- Initialize the RTC and set the current time and date as required.
- Use the alarm functions and interrupts to handle time-based events.
- Ensure that a backup battery is connected if continuous timekeeping during power outages is necessary.
- Verify the power supply voltage is within the specified range to avoid damage to the IC.
- Properly handle the I²C communication to ensure accurate time data transmission.
- Ensure the 32.768 kHz crystal is correctly connected for accurate timekeeping.
