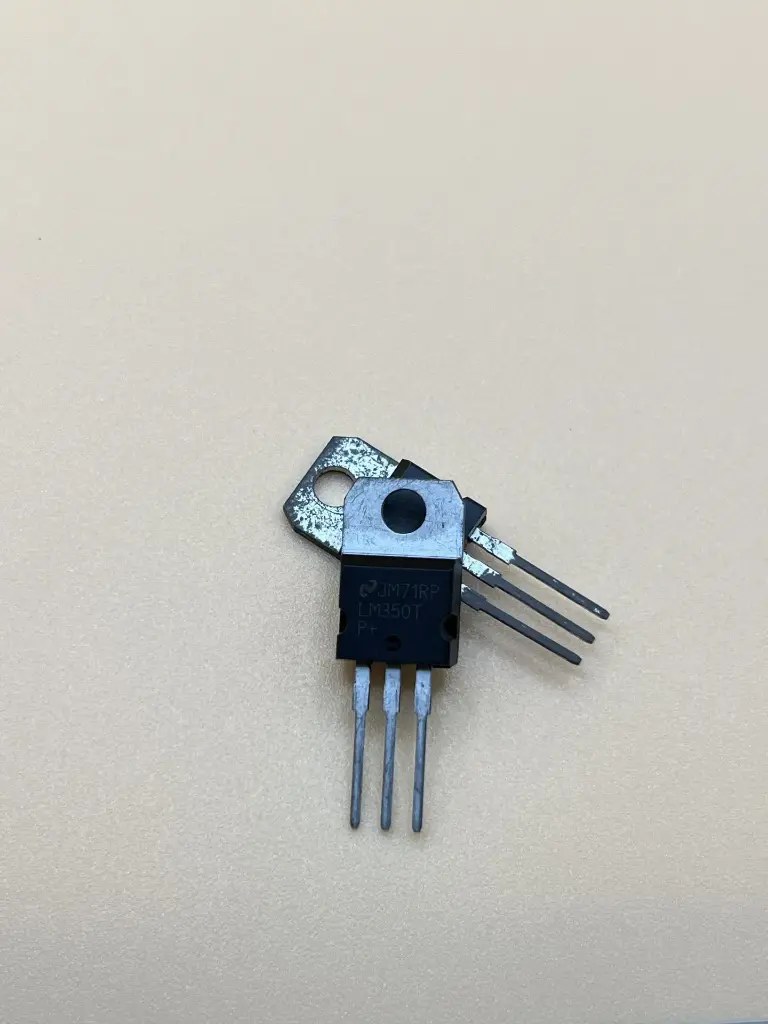

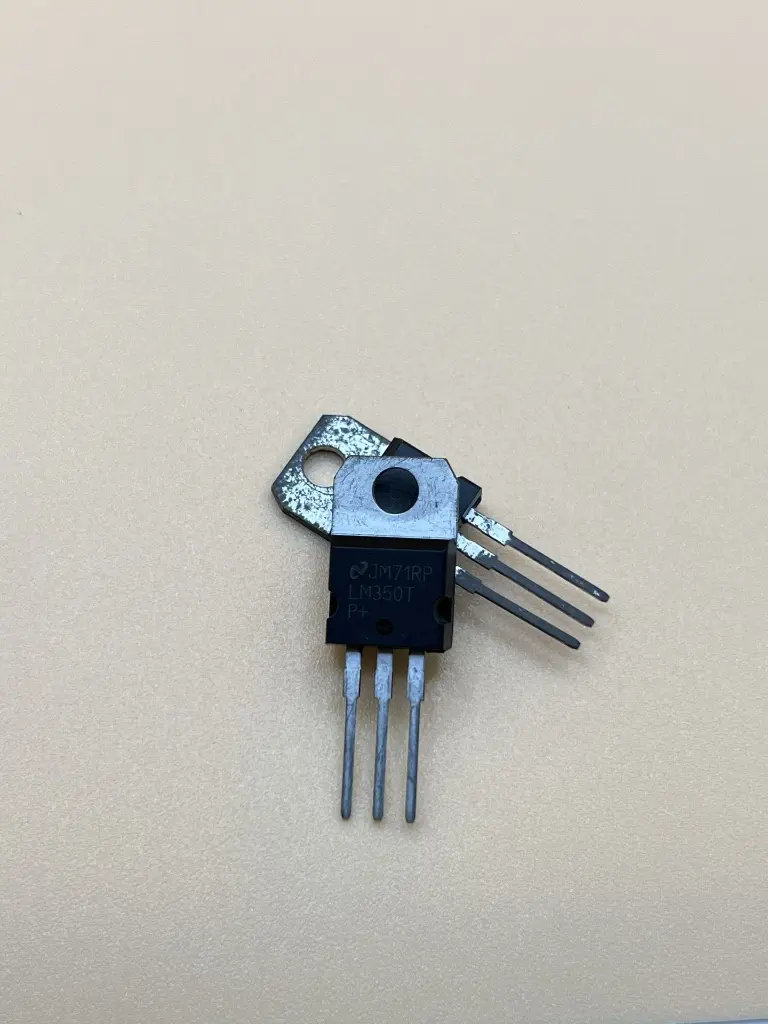

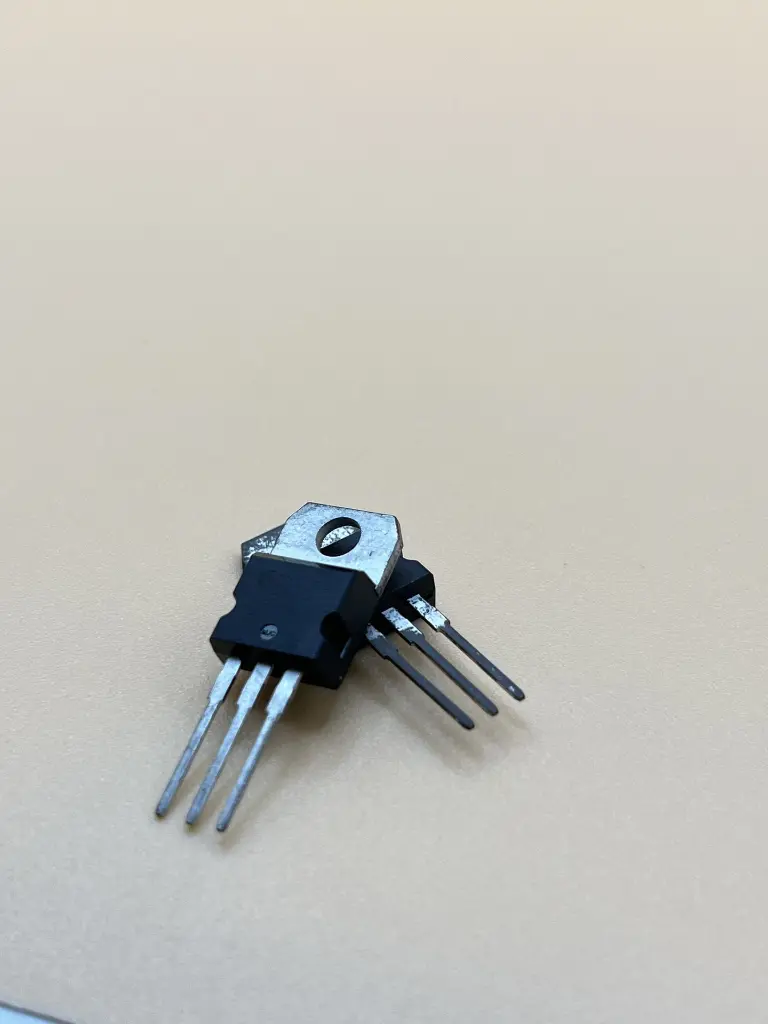

The LM350 is a robust and versatile adjustable voltage regulator capable of providing a stable output with up to 3A of current. It is designed to offer adjustable output voltages for flexible power supply solutions. The LM350 is well-suited for a variety of applications requiring precise voltage regulation and high current output, including power supplies for electronic devices, battery chargers, and other power management systems.
Key Features:
- Adjustable output voltage for flexibility in various applications
- High current capability up to 3A
- Low dropout voltage for efficient performance
- Built-in thermal overload protection and short-circuit protection
- Simple external component design for ease of use
- Compatible with a wide range of input and output voltages
- Input Voltage Range: Up to 40V
- Output Voltage Range: Adjustable from 1.25V to 37V
- Output Current: Up to 3A
- Dropout Voltage: Typically 2.5V (depends on output current and temperature)
- Line Regulation: Typically 0.01%/V
- Load Regulation: Typically 0.1% (at 3A load)
- Thermal Overload Protection: Integrated
- Short-Circuit Protection: Integrated
- Package Type: Available in TO-220 and other packages
- Power supplies for electronic devices
- Adjustable voltage regulators
- Battery chargers
- Voltage regulation in DC-DC converters
- Laboratory power supplies
- Testing and prototyping
- Connect the input voltage to the appropriate pins of the LM350, ensuring the input voltage is within the specified range.
- Use external resistors to set the desired output voltage according to the formula provided in the datasheet.
- Connect the load to the output and ensure that the current requirements do not exceed the regulator's maximum capacity.
- Implement appropriate heat sinking if operating at high currents to ensure thermal stability and prevent overheating.
- Verify that the input and output voltage ratings are within the specified limits to avoid damage.
- Properly size and place external components (e.g., capacitors, resistors) to achieve desired performance and stability.
- Ensure adequate cooling and heat dissipation to prevent thermal shutdown and ensure reliable operation.
