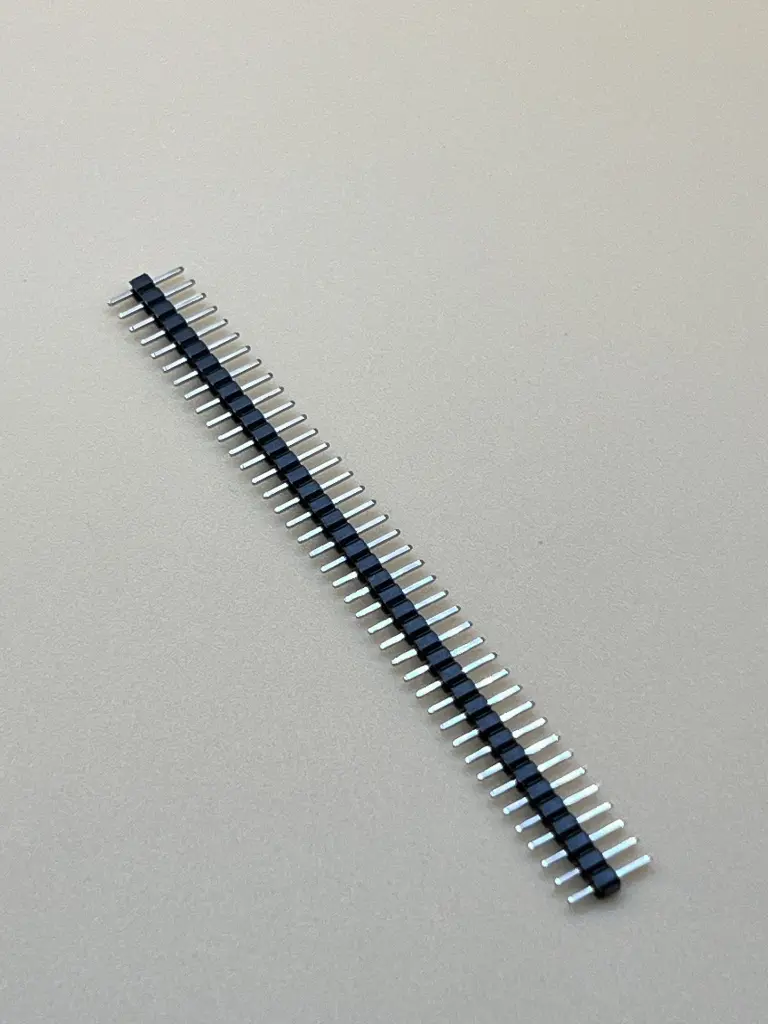

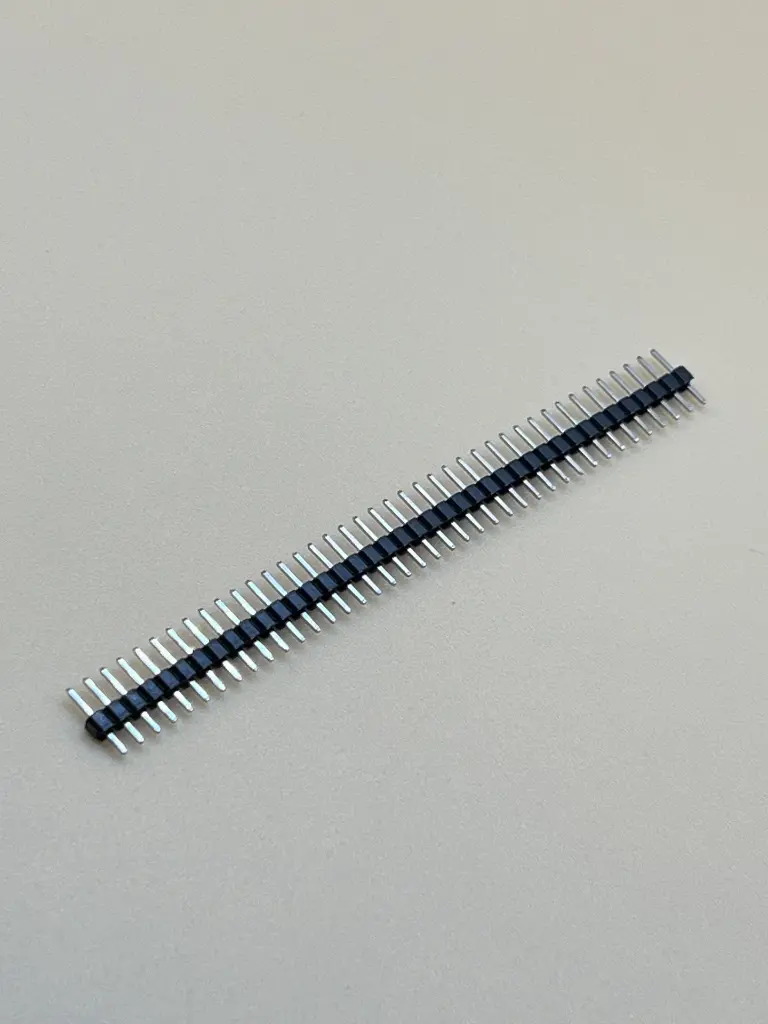

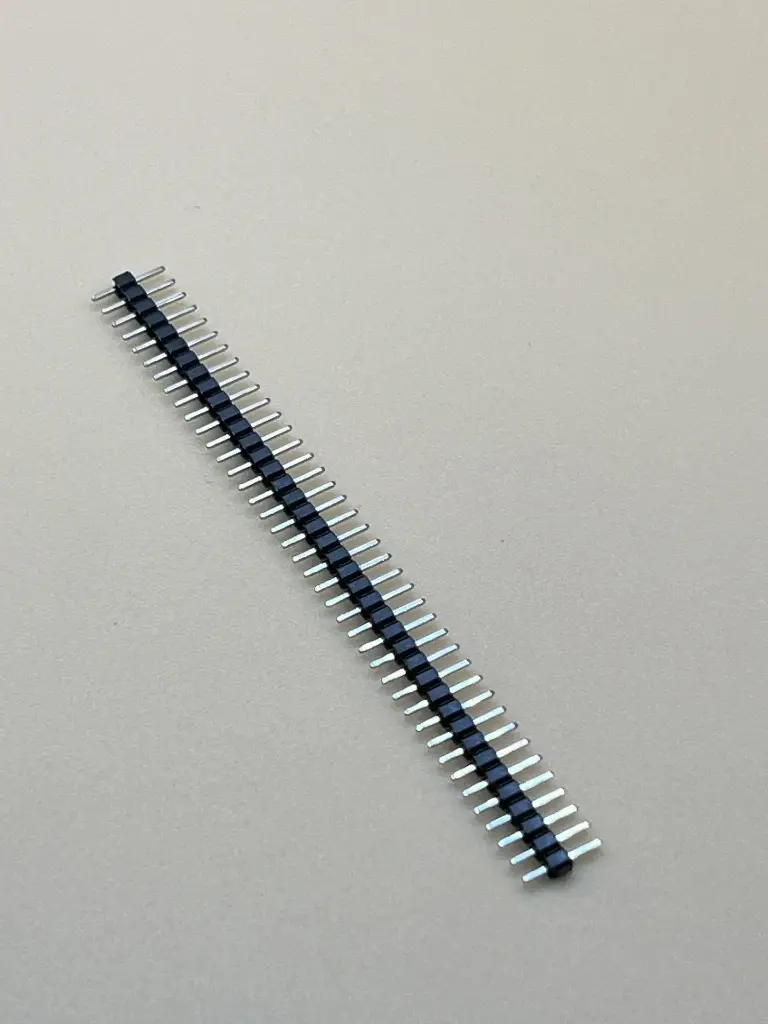

40pin 2mm single in line(SIL) male header

The 40-pin 2mm Single In-Line (SIL) Male Header is a precision connector designed for making electrical connections between a printed circuit board (PCB) and other components. It features a single row of 40 male pins with a 2mm pitch, providing a compact and space-efficient solution for a variety of electronic applications. This male header is often used in conjunction with a female header or connector for reliable and secure connections. Key Features:

• 40-pin configuration with a single row layout
• 2mm pitch for compact and space-saving design
• Male header type for mating with female connectors or headers
• High durability with reliable electrical contact
• Suitable for applications where space is limited
• Typically made from high-quality materials for robust performance

Technical Specifications:

• Pin Count: 40
• Pitch: 2mm
• Type: Male Header
• Row Configuration: Single row
• Material: Typically plastic with metal pins
• Contact Resistance: Typically <20mΩ
• Insulation Resistance: Typically >100MΩ
• Operating Temperature Range: -40°C to +85°C (varies by model)

Applications:

• PCB-to-PCB connections
• Connecting components and modules to a PCB
• Signal and power distribution in compact electronics
• Prototyping and development
• Consumer electronics and industrial applications

Usage:

1. Solder the 40-pin SIL male header onto the PCB at the designated location.
2. Ensure proper alignment and secure solder joints to ensure reliable connections.
3. Mate the header with a compatible female header or connector as required.
4. Verify the connection to ensure proper functionality and avoid misalignment or shorts.

Caution:

• Handle with care to avoid bending or damaging the pins.
• Ensure the pin pitch and count match your design requirements to avoid connectivity issues.
• Follow proper soldering techniques to avoid damage to the PCB or header.

Datasheet: For detailed technical specifications, refer to the 40-pin 2mm SIL Male Header Datasheet.
