BTA20-600B triac

Price:

GH¢ 3.00
                          ​ ​ ​ ​ ​ info@hub360.cc     059 676 4151


    2. Shop
    3. BTA20-600B triac
    CD4017 counter
    CD4017 counter
    GH¢ 3.00
    GH¢ 3.00

    BTA20-600B triac

    https://gh.hub360.cc/web/image/product.template/10681/image_1920?unique=1c4a6b4
    8 sold in last 24 hours

    GH¢ 3.00 3.0 GHS GH¢ 3.00

    ₦ 440.00

    Not Available For Sale

    (GH¢ 0.00 / Units)
    2 people are viewing this right now

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

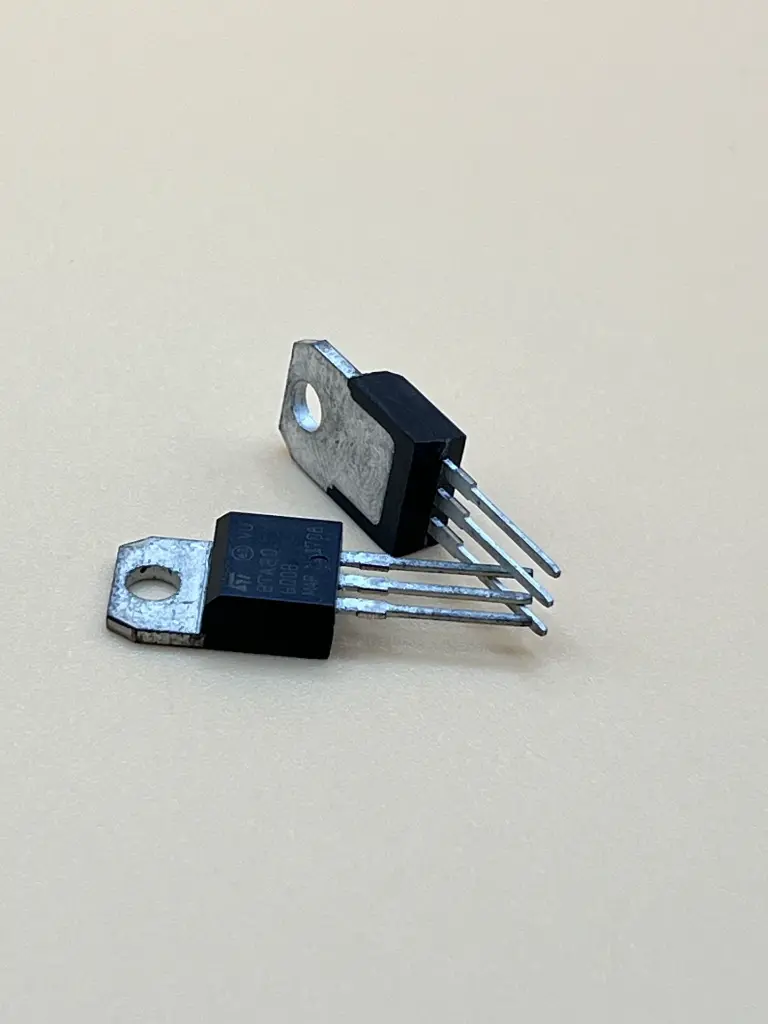

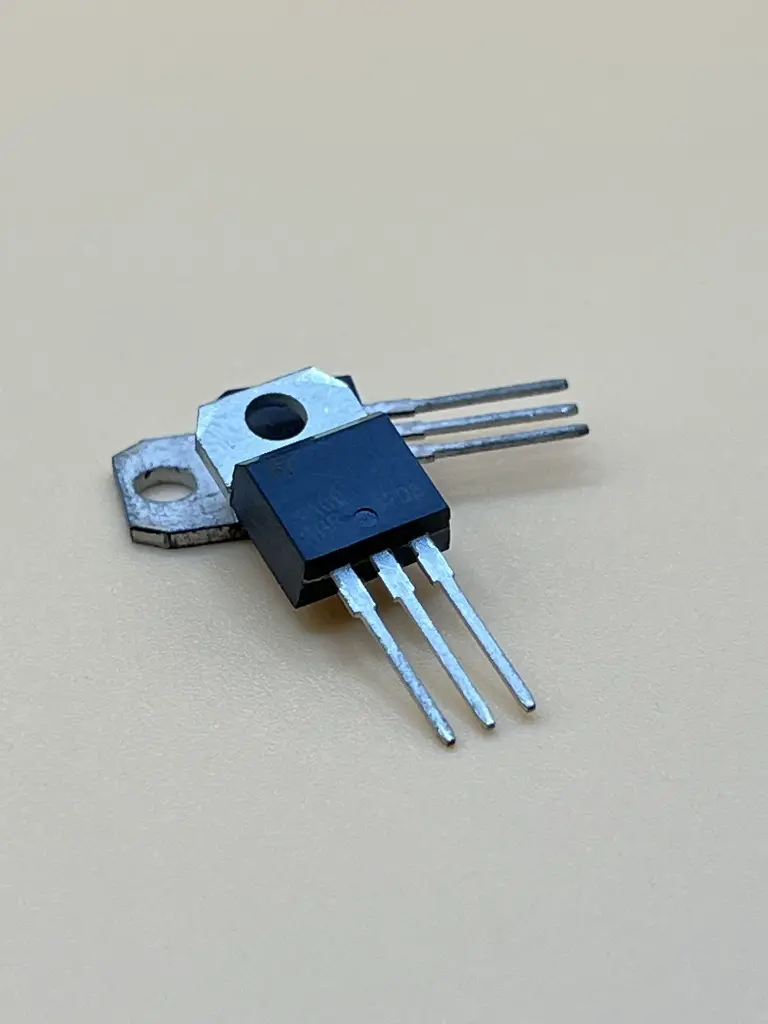

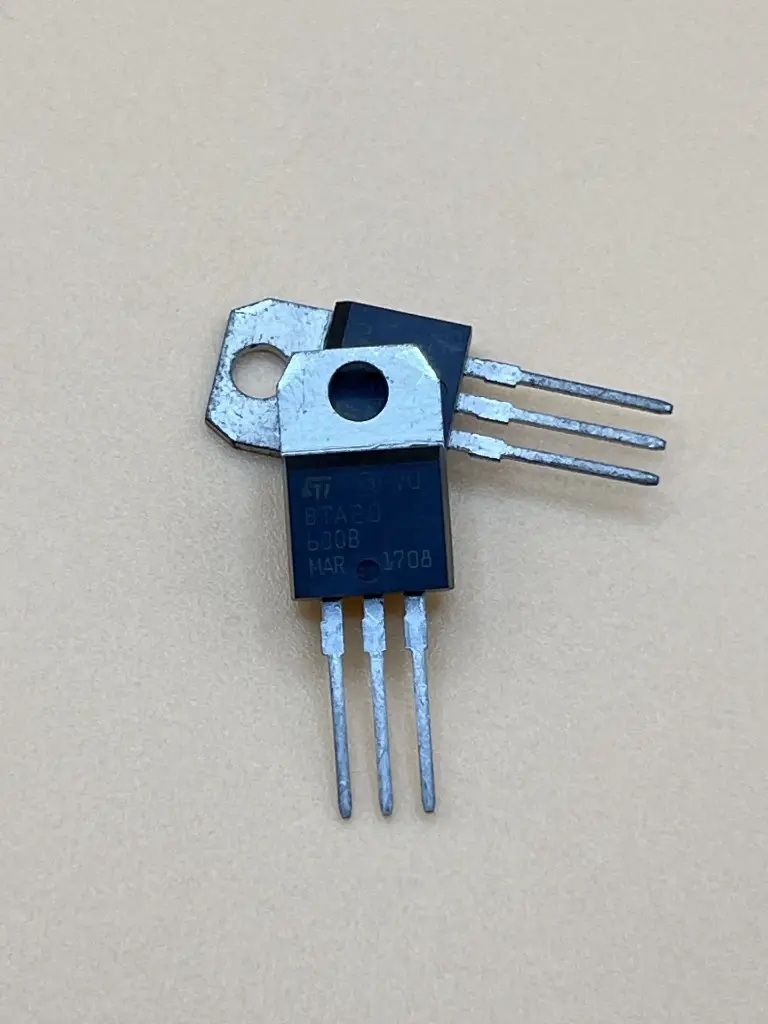

    The BTA20-600B is a high-power Triac designed for AC switching and phase control applications. With a high current handling capability of 20A and a voltage rating of 600V, it is suitable for controlling both inductive and resistive loads. Encased in an insulated TO-220 package, the BTA20-600B offers reliable and efficient performance, making it ideal for a variety of industrial and consumer applications. Key Features:
    • High current handling capability (20A)
    • Voltage rating of 600V
    • Gate trigger current of 50mA maximum
    • Insulated package for improved thermal performance and safety
    • Suitable for AC switching and phase control
    • Designed to handle high inrush currents
    • Low gate trigger current sensitivity
    Technical Specifications:
    • Package Type: TO-220
    • Repetitive Peak Off-State Voltage (VDRM): 600V
    • RMS On-State Current (IT(RMS)): 20A
    • Non-Repetitive Surge Peak On-State Current (ITSM): 210A (10ms)
    • Gate Trigger Current (IGT): 50mA max
    • Gate Trigger Voltage (VGT): 1.3V max
    • Holding Current (IH): 50mA max
    • Critical Rate of Rise of On-State Current (dI/dt): 50A/µs
    • Operating Temperature Range: -40°C to +125°C
    Applications:
    • Light dimmers
    • Motor speed controls
    • Heating control systems
    • Solid-state relays
    • AC switching in domestic appliances
    • Industrial control systems
    Usage:
    1. Mount the BTA20-600B Triac on a heatsink if necessary to manage thermal dissipation.
    2. Connect the load and power supply to the main terminals (MT1 and MT2) of the Triac.
    3. Connect the gate terminal (G) to the control circuit, ensuring the gate trigger current and voltage requirements are met.
    4. Design the control circuit to provide appropriate triggering signals based on the desired switching or phase control application.
    5. Verify the connections and functionality before applying full power to the circuit.
    Caution:
    • Ensure proper thermal management to avoid overheating and potential damage.
    • Avoid exceeding the specified voltage and current ratings to ensure reliable operation.
    • Use adequate insulation and safety measures when working with high voltage AC circuits.
    Datasheet: For detailed technical specifications, refer to the BTA20-600B Triac Datasheet.
