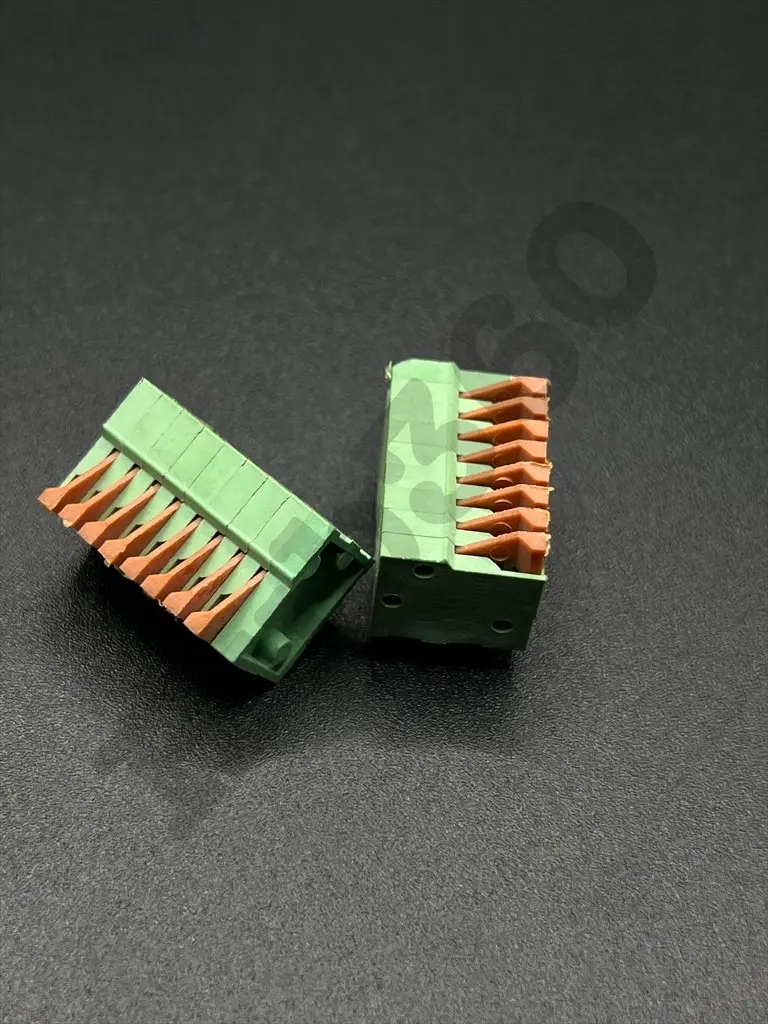

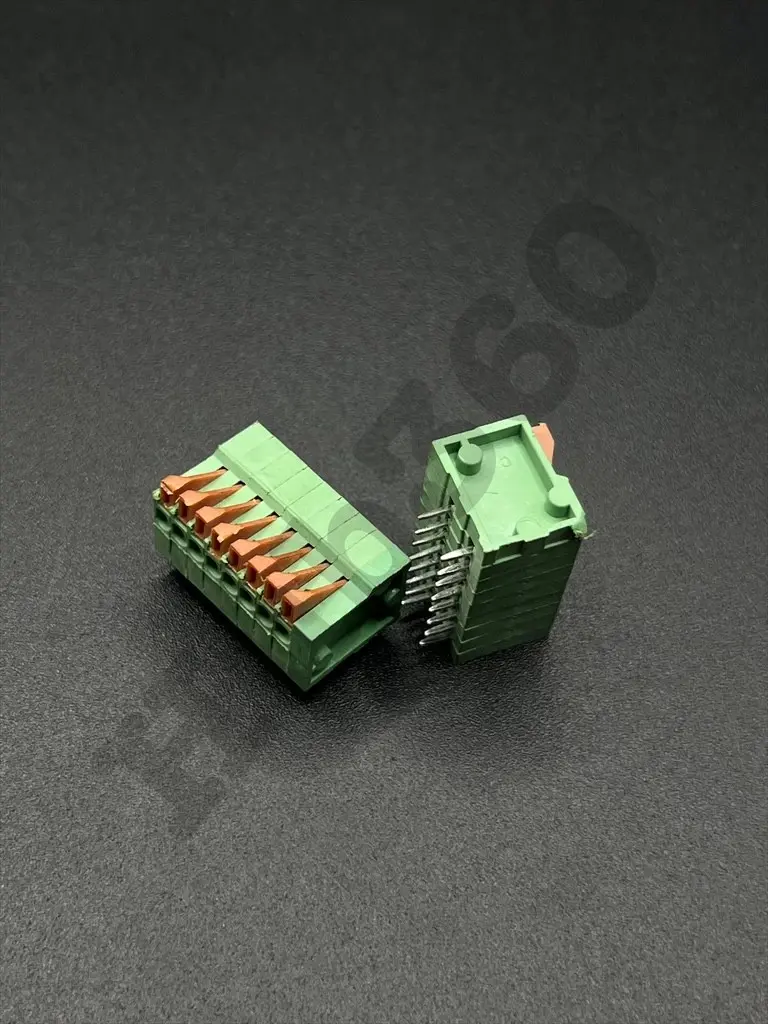

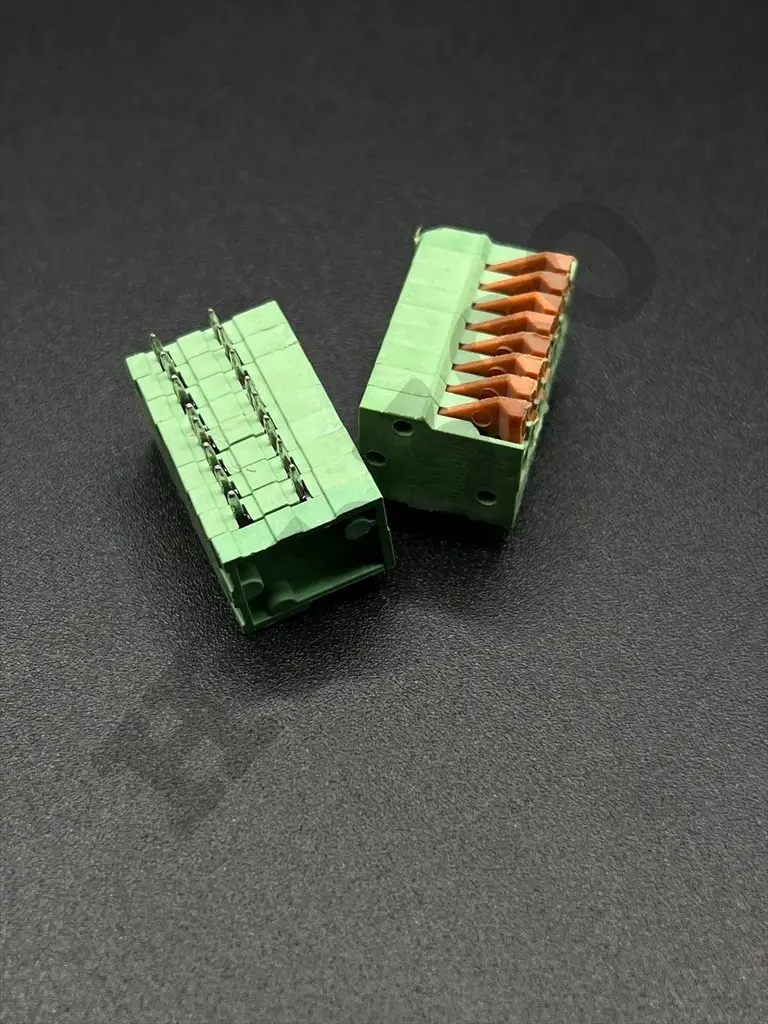

PCB spring terminal KF141R-2.54mm 8pin
9 sold in last 24 hours
The PCB Spring Terminal KF141R-2.54mm 8pin is a compact and reliable connector designed for printed circuit boards (PCBs). Featuring a spring-loaded mechanism, this terminal block provides a secure and easy way to connect and disconnect wires without the need for soldering. The 2.54mm pitch and 8-pin configuration make it suitable for a variety of electronic applications, ensuring a strong and stable electrical connection.
Key Features:
- 8-pin spring terminal block for PCBs
- 2.54mm pitch between pins
- Spring-loaded mechanism for secure wire connections
- Easy to connect and disconnect without soldering
- Compact and durable design
- Suitable for a wide range of electronic applications
- Number of Pins: 8
- Pitch: 2.54mm
- Connection Type: Spring terminal
- Material: High-quality plastic housing and metal contacts
- Current Rating: Typically up to 10A
- Voltage Rating: Typically up to 250V
- Operating Temperature Range: -40°C to +105°C
- Dimensions: Approximately 20mm x 10mm x 8mm
- Weight: Approximately 5 grams
- Connecting wires to PCBs in electronic projects
- Prototype and development boards
- Industrial control systems
- Signal and power distribution
- DIY electronics and hobby projects
- Insert the terminal block into the PCB, ensuring proper alignment with the corresponding holes.
- Solder the terminal block pins to the PCB pads for a secure mechanical and electrical connection.
- Strip the insulation from the end of the wire to be connected.
- Press down on the spring-loaded lever of the terminal block and insert the stripped wire into the opening.
- Release the lever to secure the wire in place, ensuring a firm and stable connection.
- Repeat for additional wires as needed.
- Ensure the wire gauge is compatible with the terminal block specifications.
- Avoid applying excessive force to the spring lever to prevent damage.
- Verify correct polarity and connections to prevent short circuits.
