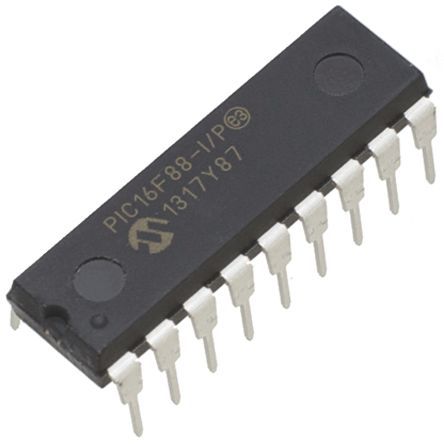

The PIC16F88 is an 8-bit microcontroller from Microchip Technology, designed for low-power and versatile applications. It features a range of integrated peripherals and is suitable for use in various embedded systems, including consumer electronics, automotive applications, and industrial control.
Key Features:
- 8-bit microcontroller with a 14-bit instruction set
- 14-bit instruction set architecture
- Integrated peripherals including timers, ADC, and I/O ports
- Low power consumption with multiple sleep modes
- Flash memory for program storage and EEPROM for non-volatile data storage
- On-chip oscillator and watchdog timer
- Architecture: 8-bit
- Instruction Set: 14-bit
- Flash Memory: 7 kB
- SRAM: 368 B
- EEPROM: 256 B
- I/O Pins: 12
- Timers: 1 x 8-bit Timer, 1 x 16-bit Timer
- ADC: 10-bit ADC with 8 channels
- Oscillator Frequency: Up to 20 MHz
- Operating Voltage: 2.0V to 5.5V
- Operating Temperature Range: -40°C to +125°C
- Package Type: 14-pin PDIP, SOIC, SSOP
- Consumer electronics
- Automotive control systems
- Industrial automation
- Low-power embedded systems
- Remote controls
- Measurement and monitoring systems
- Program the PIC16F88 using a compatible programmer or development kit.
- Connect the necessary peripherals and sensors to the microcontroller’s I/O pins.
- Configure the microcontroller’s settings and features via software.
- Integrate the microcontroller into your electronic circuit for specific tasks and control functions.
- Handle the microcontroller carefully to avoid damage from electrostatic discharge (ESD).
- Verify correct power supply voltage and connections before powering the device.
- Follow the manufacturer’s guidelines for programming and operation.
