Description

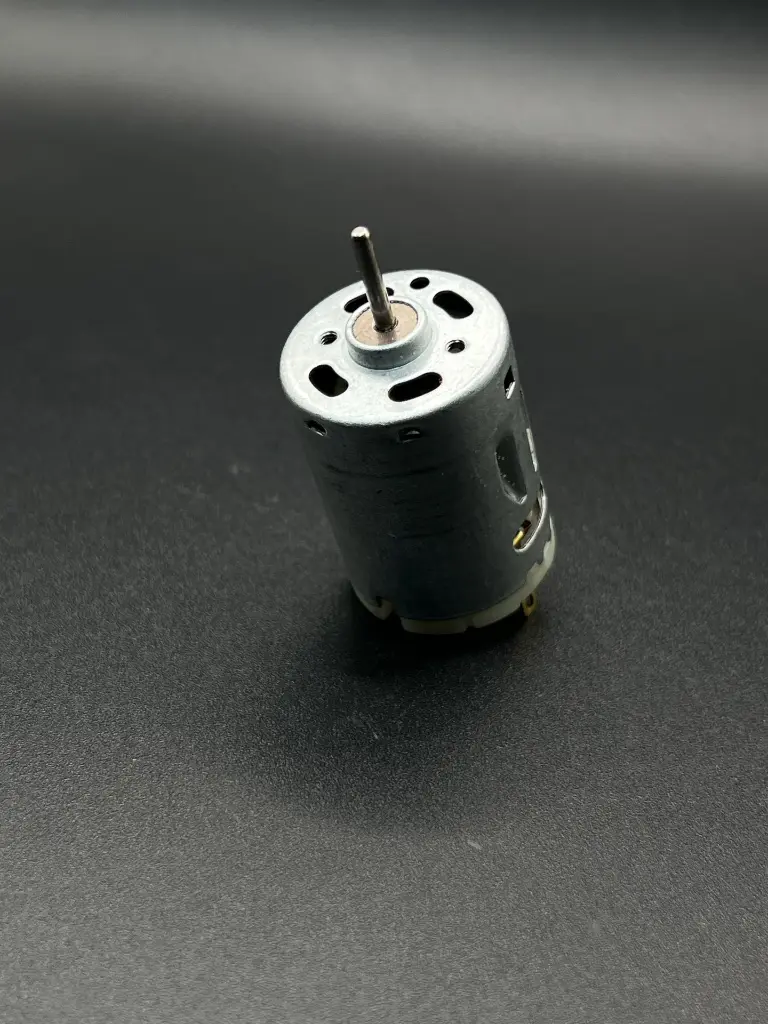

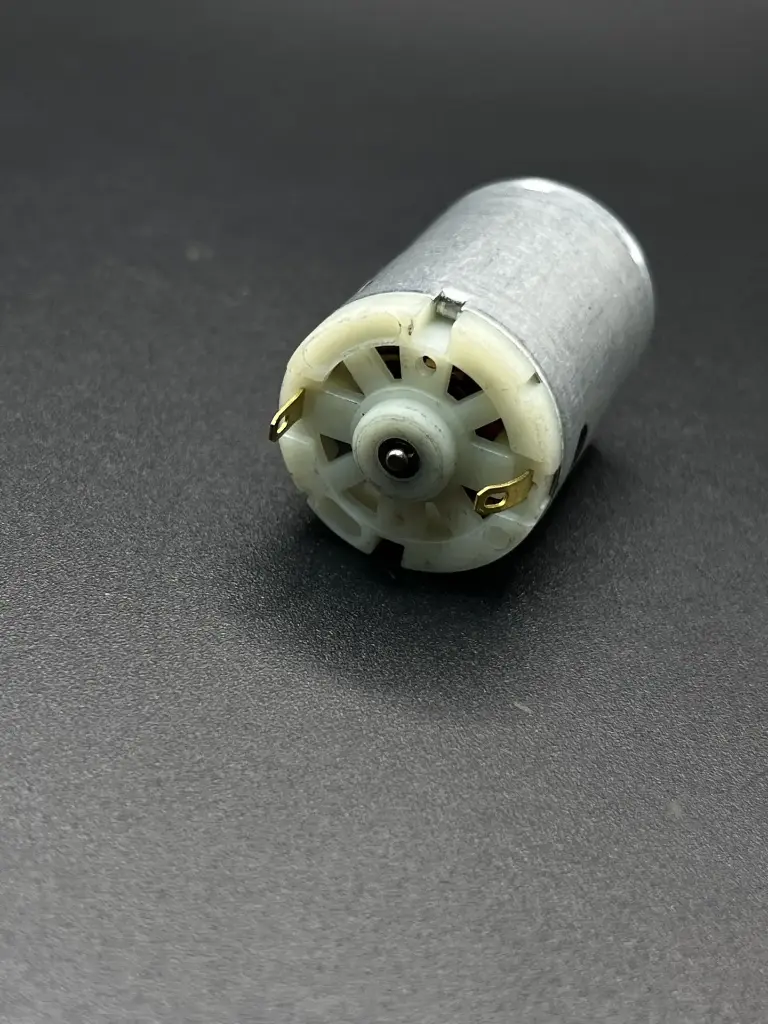

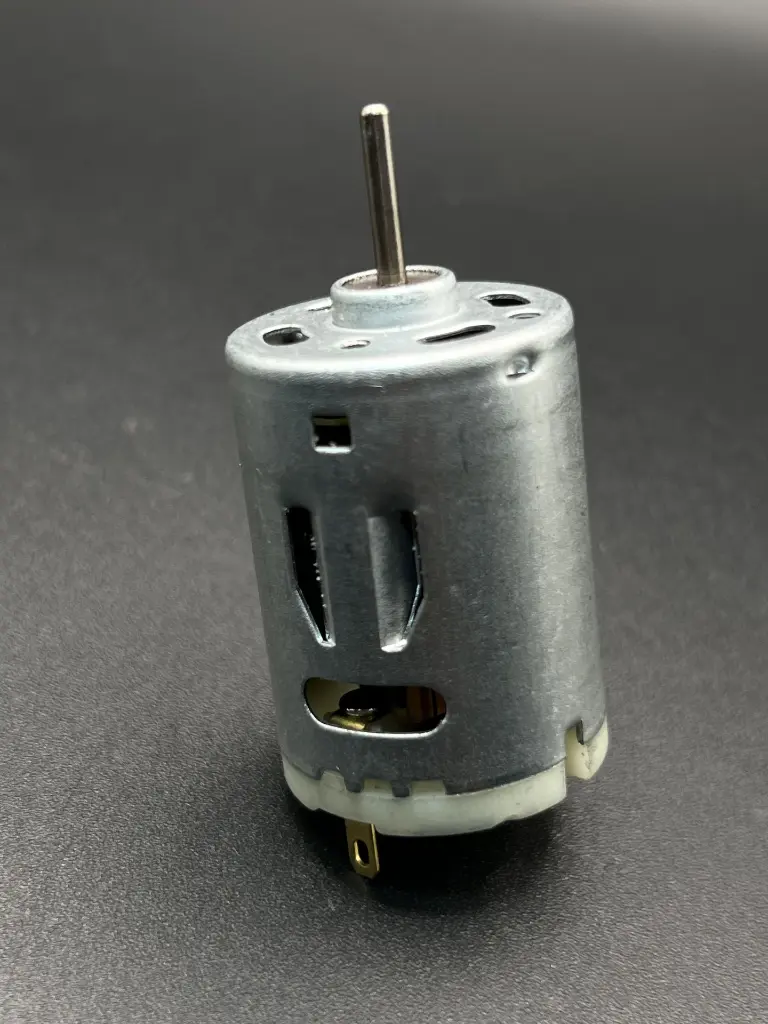

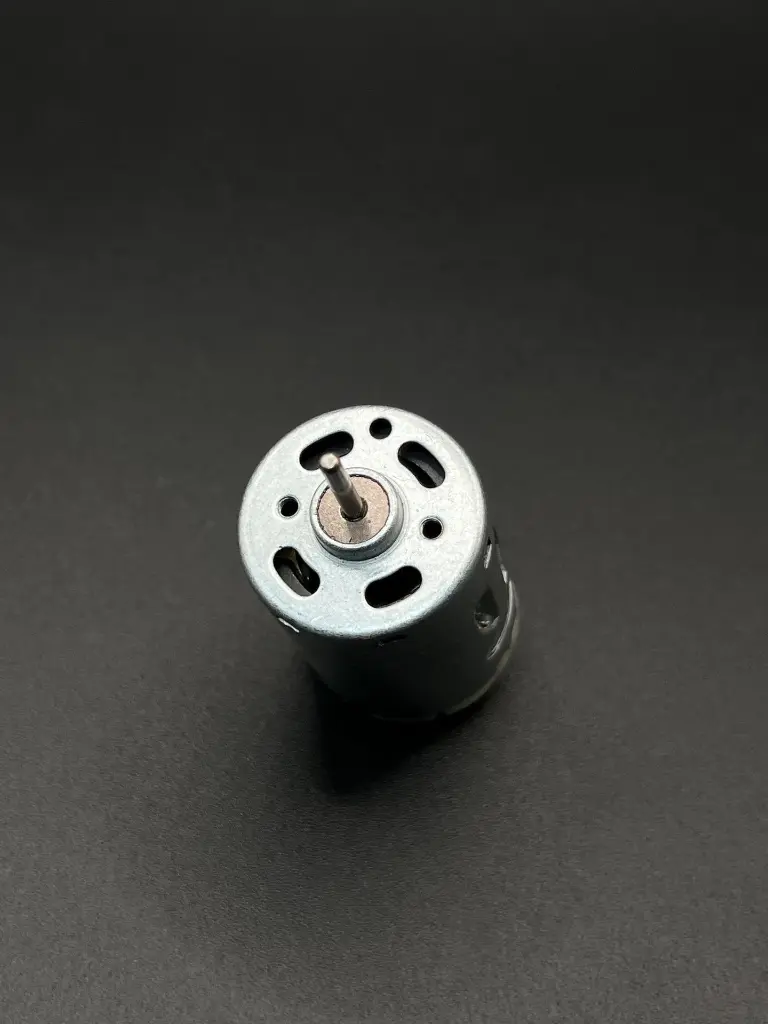

The 12V DC 385 motor is a compact yet powerful brushed DC motor widely used in DIY projects, robotics, small appliances, and automation systems. Known for its durability and stable performance, this motor delivers reliable speed and torque, making it suitable for applications that require continuous and dependable rotation.
Key Features
- Operates on 12V DC, compatible with standard power supplies
- High torque with stable and reliable performance
- Compact and lightweight design
- Durable metal housing for extended lifespan
- Low maintenance brushed DC motor
- Easy to mount and integrate into various projects
Specification
- Rated Voltage: 12V DC
- No-Load Speed: 7000 RPM
- No-Load Current: 0.1A
- Stall Torque: 1.5 kg·cm
- Stall Current: 3.2A
- Motor Type: Brushed DC motor
- Shaft Diameter: 2.3mm
- Shaft Length: 12mm
- Body Dimensions: 38mm (length) × 24mm (diameter)
- Weight: 75g
- Operating Temperature: –10°C to +60°C
Application
- Robotics and automation projects
- Small electric tools and appliances
- Model cars, boats, and aircraft
- DIY electronics and hobby builds
Usage:
- Determine the appropriate motor placement in your project.
- Secure the motor using screws or mounting brackets.
- Connect the motor leads to a 12V DC power supply, ensuring proper polarity.
- Integrate motor control using a suitable driver or controller for desired operations.
- Test the motor operation and adjust as necessary for optimal performance.
- Ensure the power supply matches the motor’s voltage and current specifications.
- Avoid running the motor at stall current for extended periods to prevent overheating.
- Handle with care to avoid damaging the motor’s shaft or internal components.
Datasheet: For detailed technical specifications, refer to the 12V DC 385 Motor Datasheet.
