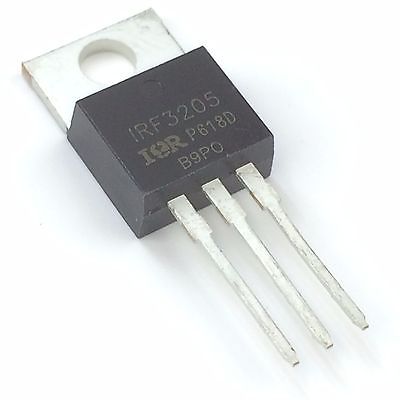

The IRF3205 is a high-performance N-channel MOSFET designed for applications requiring high current and low on-resistance. It is ideal for power switching and amplification in a variety of high-power electronic circuits, including power supplies and motor control systems.
Key Features:
- N-channel enhancement mode MOSFET
- High current rating: 110A
- Low on-resistance for efficient switching
- High voltage rating: 55V
- Fast switching speed
- Robust construction for reliable performance
- Suitable for high-frequency applications
- Type: N-channel MOSFET
- Drain-Source Voltage (Vds): 55V
- Continuous Drain Current (Id): 110A
- Pulsed Drain Current (Id, Pulse): 220A
- Gate-Source Voltage (Vgs): ±20V
- Rds(on): 0.015Ω (maximum) at Vgs = 10V
- Total Gate Charge (Qg): 240nC (typical)
- Gate-Source Threshold Voltage (Vgs(th)): 2.0V - 4.0V
- Power Dissipation (Pd): 94W
- Operating Temperature Range: -55°C to +175°C
- Package Type: TO-220
- Power supplies (SMPS)
- Motor control circuits
- DC-DC converters
- Inverters and amplifiers
- Load switches
- Power management systems
- Automotive electronics
- Connect the drain terminal to the high-voltage load.
- Connect the source terminal to the ground or low-side of the circuit.
- Apply a suitable gate voltage (Vgs) to control the switching operation.
- Use a gate resistor if needed to manage switching speed and reduce noise.
- Ensure proper heat sinking to handle power dissipation and prevent overheating.
- Handle the MOSFET with care to avoid damage from electrostatic discharge (ESD).
- Verify the voltage and current ratings to ensure compatibility with your circuit.
- Ensure adequate cooling and heat dissipation to prevent thermal overload.
