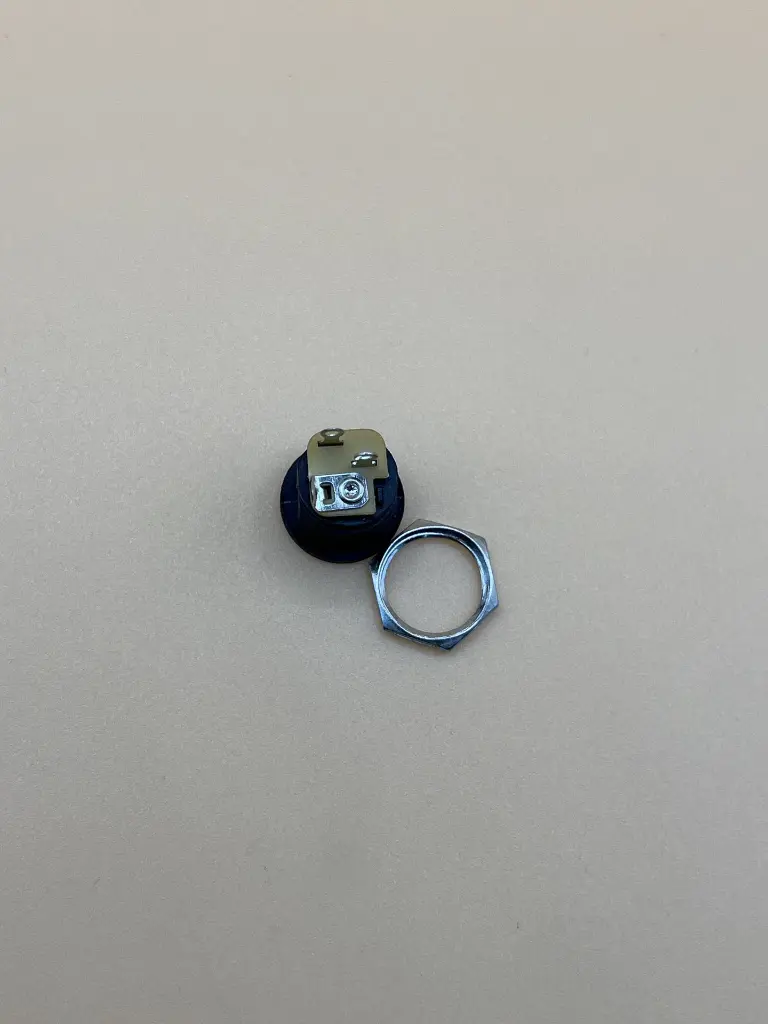

The DC Power Socket with Nut DC-022 is a reliable and durable connector designed for various DC power applications. Featuring a secure nut fastening mechanism, it ensures a stable connection and is suitable for use in a wide range of electronic devices and projects.
Key Features:
- Standard DC power socket
- Compatible with 2.1mm x 5.5mm plugs
- Nut fastening for secure and stable connection
- Durable construction for long-lasting use
- Easy to install and replace
- Suitable for various DC power applications
- Connector Type: DC power socket
- Compatibility: 2.1mm x 5.5mm plugs
- Material: Plastic and metal
- Mounting Type: Panel mount with nut fastening
- Current Rating: 2A
- Voltage Rating: 12V DC
- Contact Resistance: ≤0.03Ω
- Insulation Resistance: ≥100MΩ
- Operating Temperature Range: -25°C to +85°C
- Power supply connections for electronic devices
- DIY electronics projects
- Power adapters and chargers
- Embedded systems
- Prototyping and development boards
- Drill a hole in the panel where the socket will be mounted.
- Insert the DC power socket into the hole.
- Secure the socket in place using the provided nut.
- Connect the power wires to the appropriate terminals of the socket.
- Ensure a stable and secure connection by tightening the nut.
- Ensure proper alignment and connection to avoid short circuits.
- Verify the voltage and current ratings before use to prevent damage.
- Handle with care to avoid damaging the connector pins.
