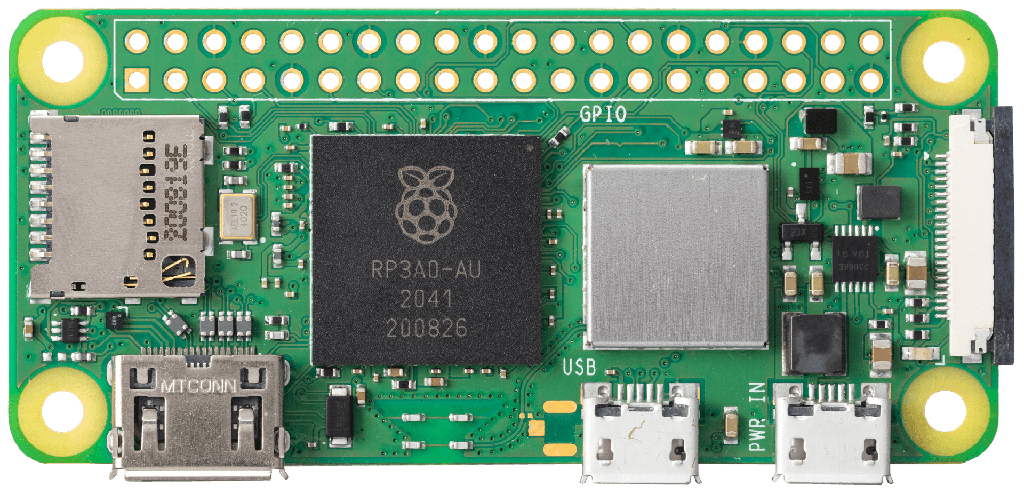

The Raspberry Pi Zero 2 W is a compact and powerful single-board computer designed for various applications, from IoT projects to educational tools. It combines the small form factor of the original Raspberry Pi Zero with significant performance improvements, making it an ideal choice for projects requiring both compact size and computing power. The Zero 2 W features a quad-core ARM Cortex-A53 CPU, offering a balance of efficiency and capability.
Key Features:
- Processor: Broadcom BCM2710A1, quad-core 64-bit ARM Cortex-A53
- Clock Speed: 1 GHz
- RAM: 512 MB LPDDR2 SDRAM
- Wireless:
- 802.11 b/g/n wireless LAN
- Bluetooth 4.2
- Bluetooth Low Energy (BLE)
- Connectivity:
- 1x Mini HDMI port
- 2x Micro USB ports (1 for power, 1 for data)
- 1x Micro USB On-The-Go (OTG) port
- 1x MicroSD card slot
- HAT-compatible 40-pin header
- Composite video and reset headers
- Power: 5V, 2.5A power via micro USB
- Operating System: Compatible with Raspberry Pi OS and other Linux-based systems
- Dimensions: 65 mm x 30 mm x 5 mm
- Weight: Approximately 9 g
- GPU: VideoCore IV, capable of 1080p60 H.264 decode
- Power Consumption: Typically around 0.5W to 1W
- Operating Temperature: 0°C to +50°C
- GPIO: 40-pin GPIO header, identical pinout to Model A+/B+/2B/3B/4B
- Video Output: Mini HDMI for 1080p output
- Audio Output: HDMI and composite
- IoT Projects: Ideal for Internet of Things (IoT) applications due to its small size and wireless capabilities.
- Education: Used in classrooms for teaching programming and electronics.
- Prototyping: Suitable for developing and testing electronic projects.
- Embedded Systems: Perfect for integrating into custom embedded systems and devices.
- Media Center: Can be used to create a compact and affordable media center.
