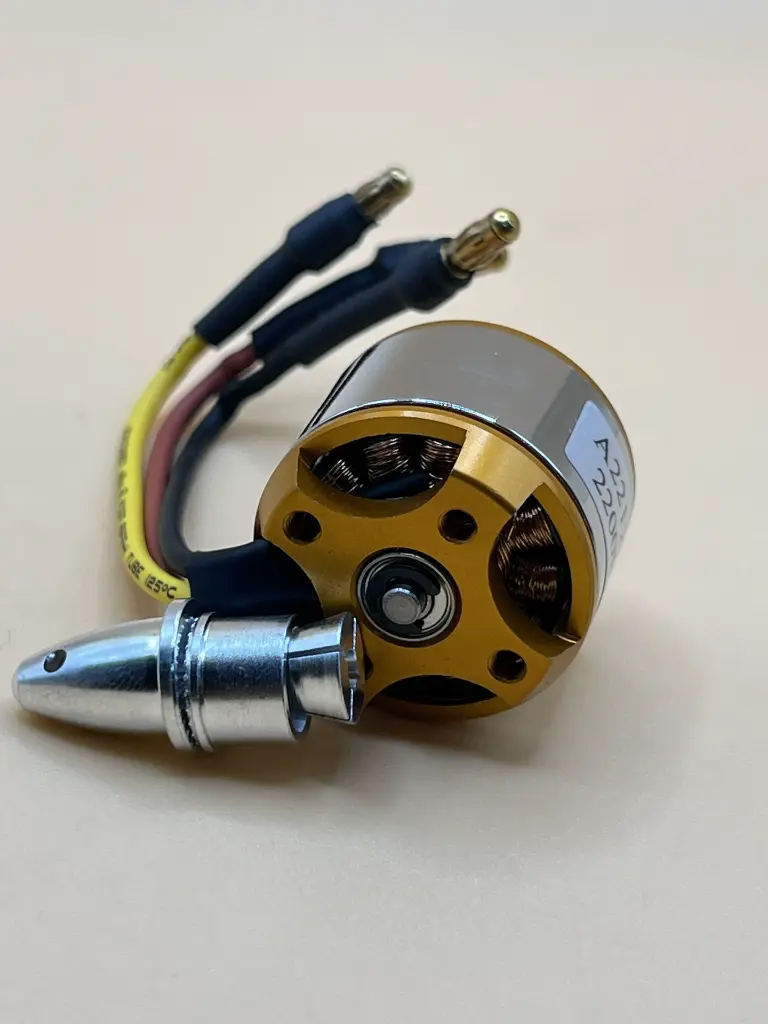

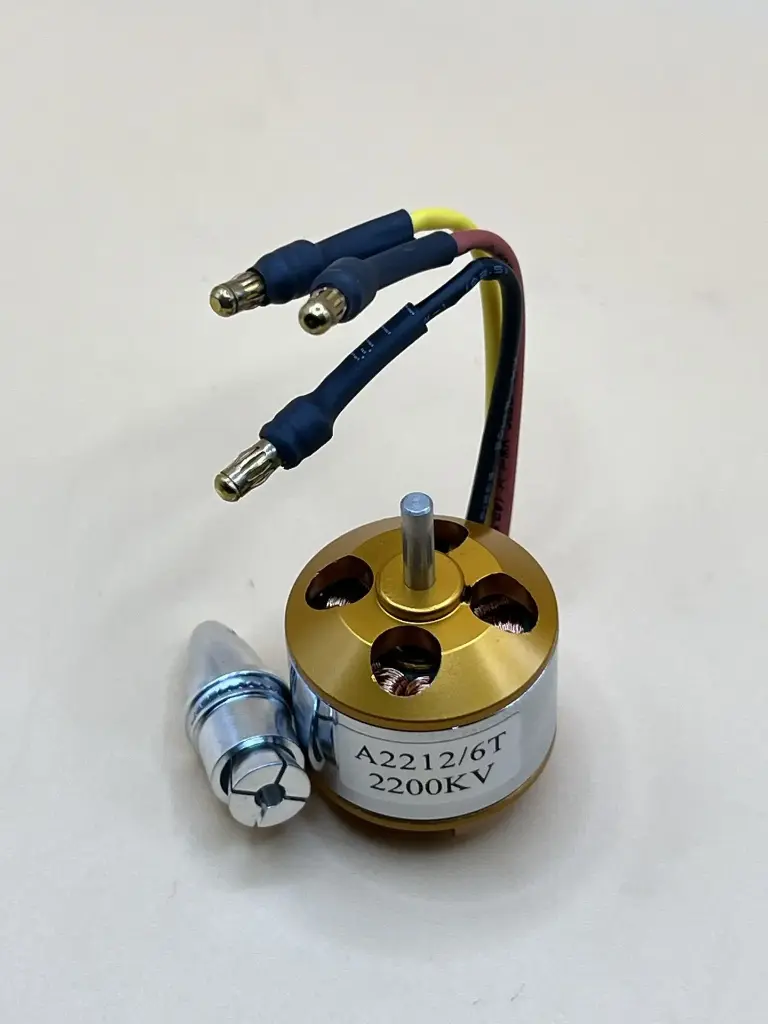

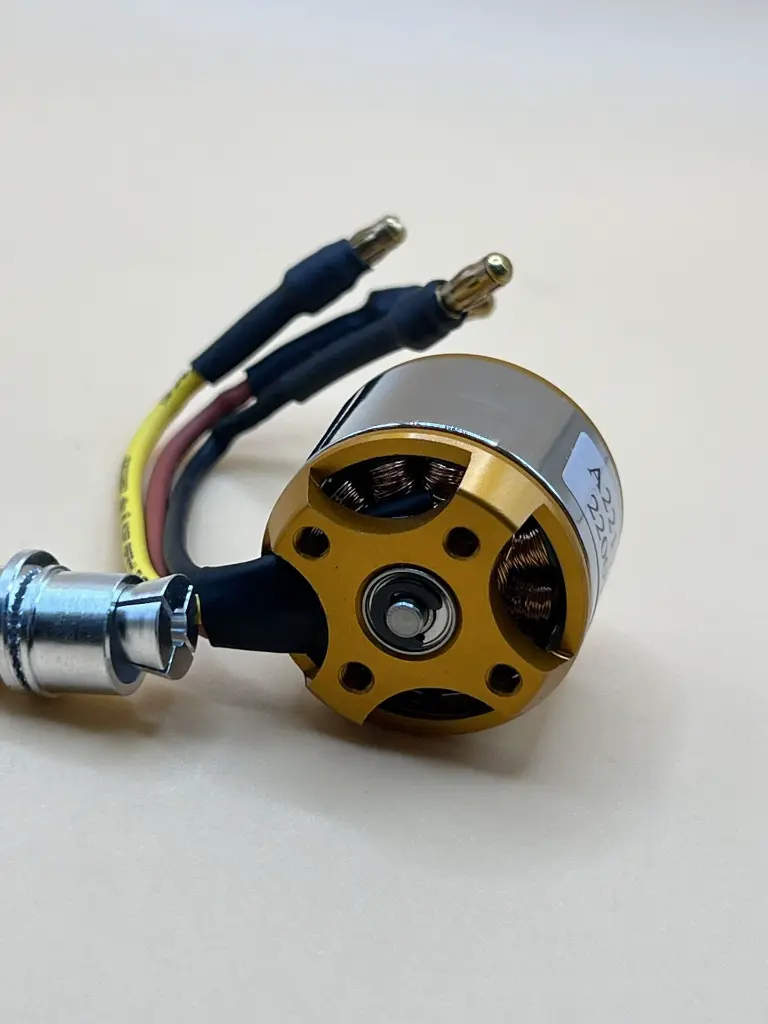

The Brushless Motor A2212 2200KV is a high-performance brushless DC motor designed for use in various applications, including drones, RC aircraft, and other high-speed hobby projects. It features a 2200KV rating, indicating its high rotational speed per volt applied, making it suitable for applications requiring high RPM and efficiency.
Key Features:
- Motor Type: Brushless DC motor
- KV Rating: 2200KV (RPM per volt)
- Operating Voltage: Typically 7.4V to 11.1V (2S to 3S LiPo battery)
- Power Output: Up to 200W
- Mounting Type: Standard 28mm x 12mm mounting pattern
- Cooling: Designed for efficient heat dissipation
- Efficiency: High efficiency with minimal power loss
- Dimensions:
- Diameter: 28 mm
- Length: 12 mm (excluding shaft)
- Weight: Approximately 50 g
- KV Rating: 2200KV
- Operating Voltage: 7.4V to 11.1V (2S to 3S LiPo battery)
- Power Output: Up to 200W
- Current Rating: Typically 15A to 20A
- Shaft Diameter: 3.17 mm (1/8 inch)
- No. of Poles: 14
- No. of Stator Slots: 12
- Drones: Used in multirotor drones for providing high-speed thrust and control.
- RC Aircraft: Ideal for radio-controlled airplanes and helicopters requiring high RPM.
- DIY Projects: Suitable for hobbyist projects requiring high-speed brushless motors.
- Robotics: Used in robotic applications for precise and efficient movement.
- Model Aircraft: Perfect for various model aircraft needing reliable and high-performance motors.
