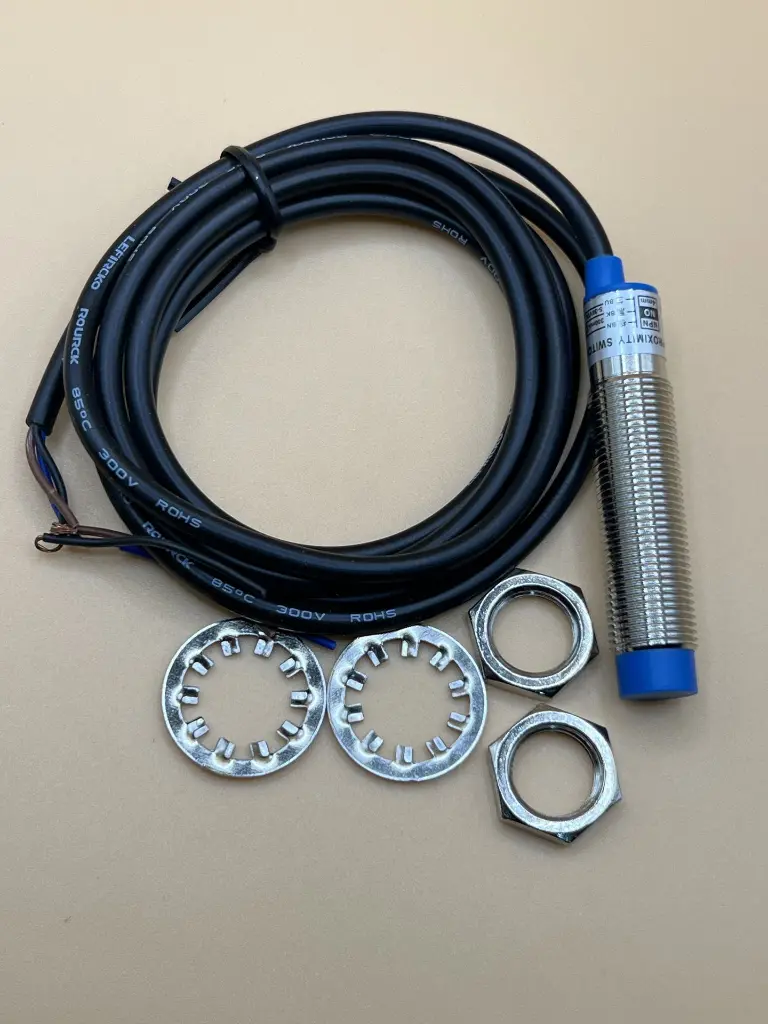

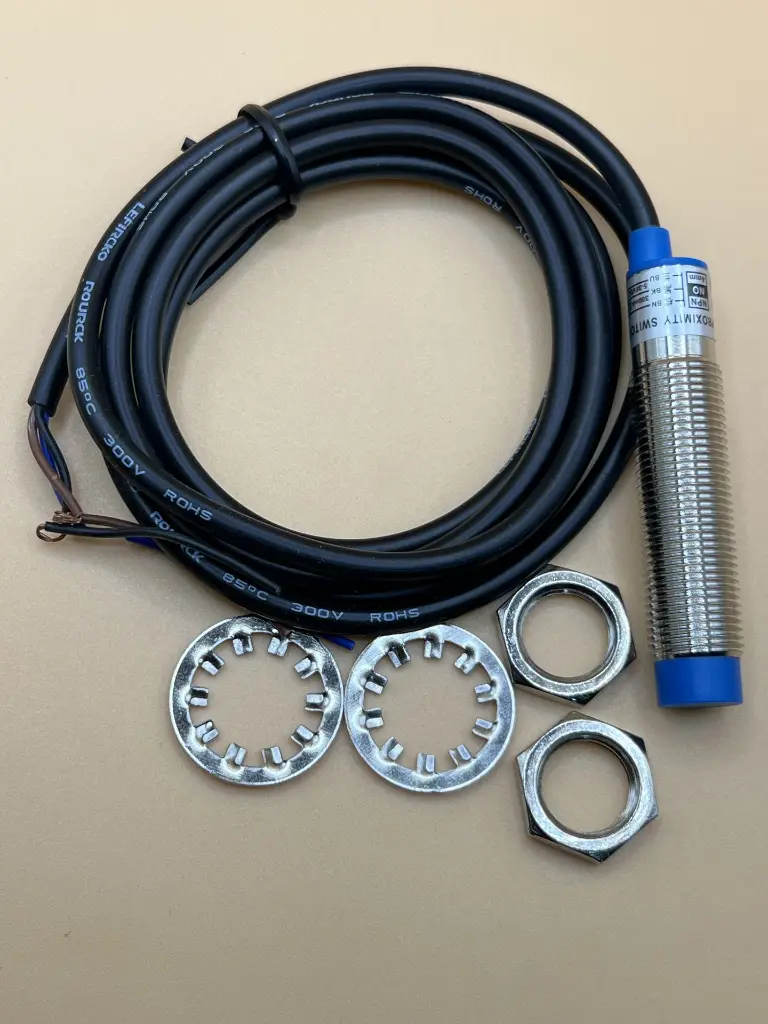

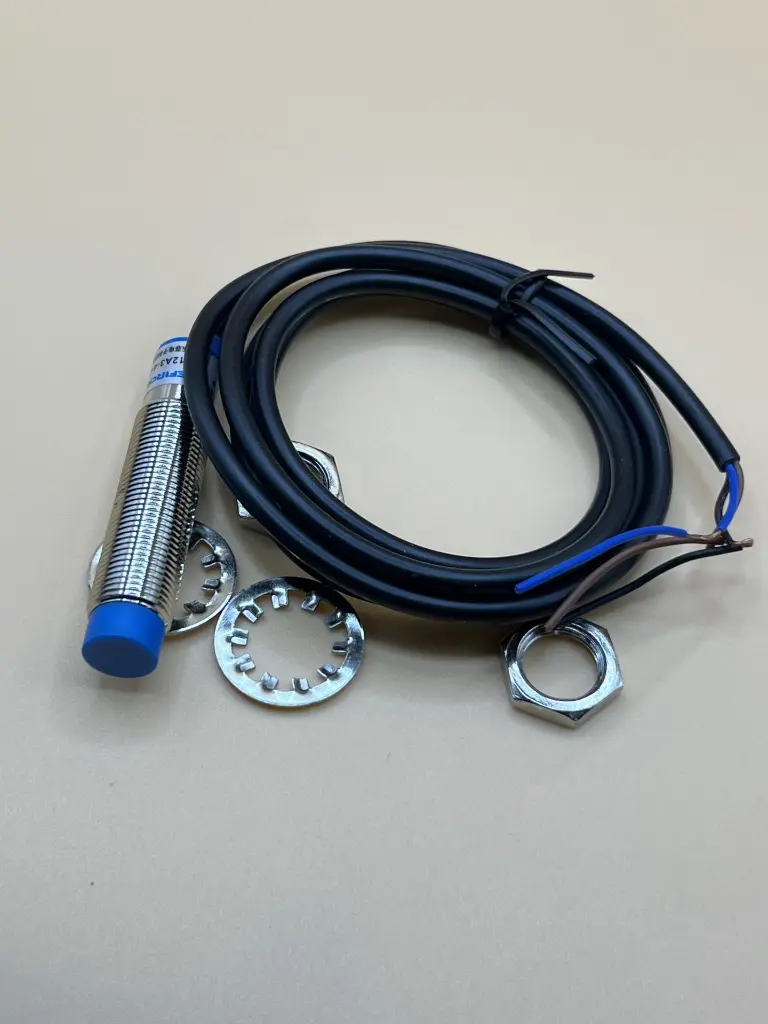

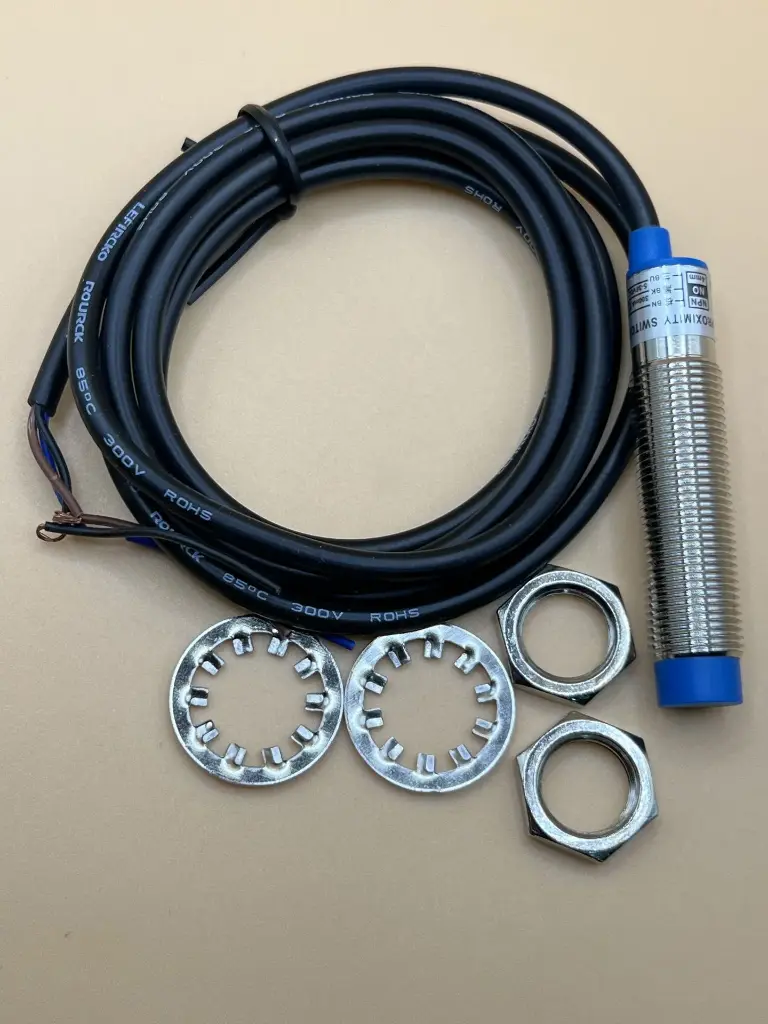

Photoelectric Metal Sensor LJ12A34

The Photoelectric Metal Sensor LJ12A34 is an industrial-grade proximity sensor designed to detect metal objects within a specified range. This sensor uses photoelectric technology to detect the presence of metallic items without making physical contact, making it ideal for applications where non-contact detection is essential. It is widely used in automation, manufacturing, robotics, and various industrial applications. Key Features:

• Detection Method: Photoelectric proximity detection
• Sensing Distance: Up to 4mm for metallic objects
• Output Type: NPN normally open (NO)
• Operating Voltage: 6-36V DC
• Response Time: Fast response time for real-time detection
• Indicator: Built-in LED indicator for detection status
• Durability: Robust construction for industrial environments
• Installation: Easy mounting with threaded barrel design

Technical Specifications:

• Dimensions:
  • Sensor Diameter: 12 mm
  • Length: 60 mm
• Weight: Approximately 30 g
• Sensing Distance: 4 mm (for iron)
• Output Current: 300 mA max
• Operating Temperature: -25°C to +70°C
• Humidity: 35% to 95% RH
• Response Frequency: 1 kHz
• Material: Metal housing with plastic sensing face
• Cable Length: 1.2 meters

Applications:

• Automation: Used in automated systems to detect the presence of metal parts.
• Manufacturing: Ideal for production lines to ensure the correct placement of metal components.
• Robotics: Used in robots for object detection and avoidance.
• Safety Systems: Integrated into safety systems to detect the presence or absence of metal objects.
• Quality Control: Helps in quality control processes by detecting metal parts during manufacturing.

Datasheet: For detailed technical information, refer to the Photoelectric Metal Sensor LJ12A34 Datasheet.
