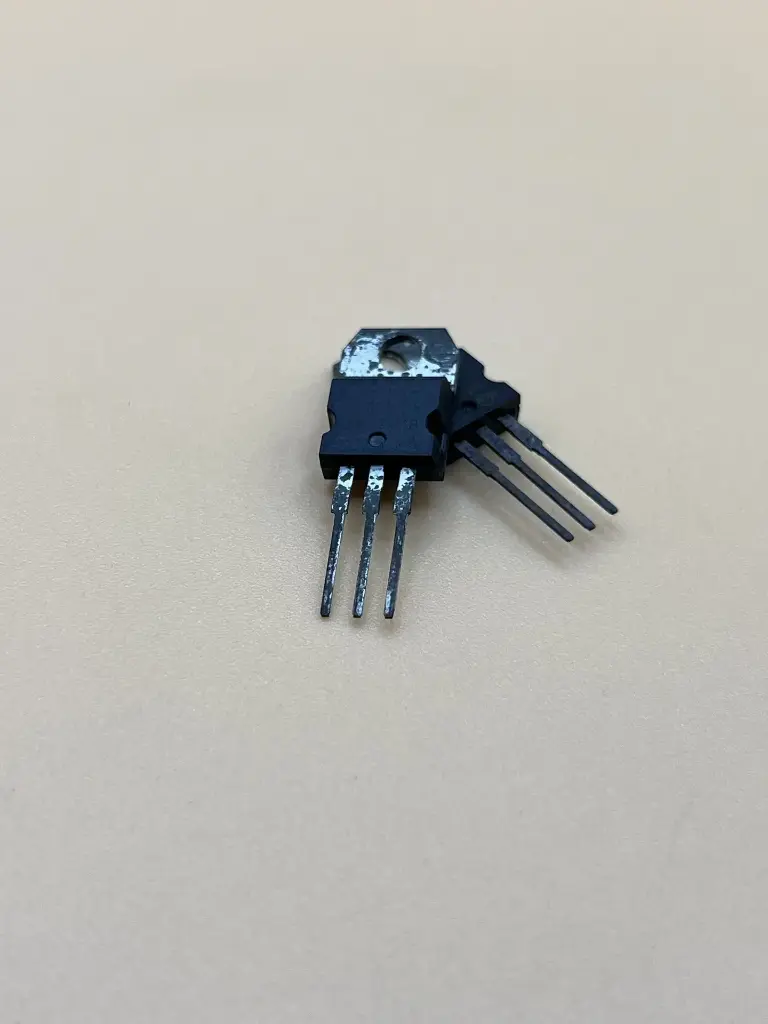

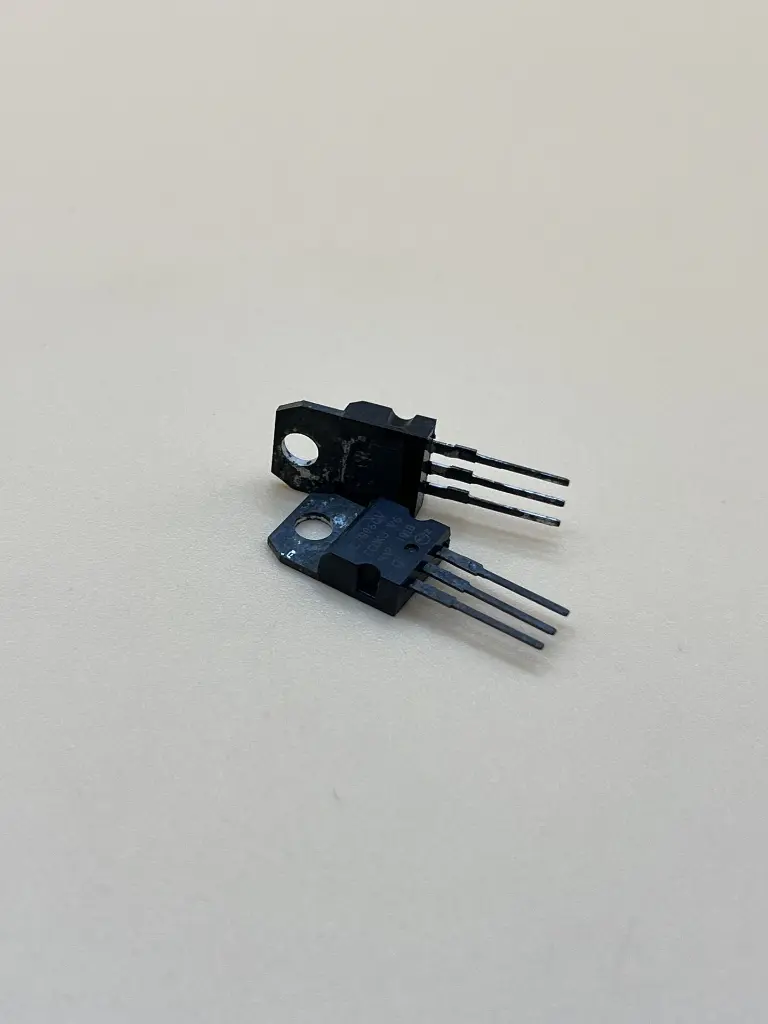

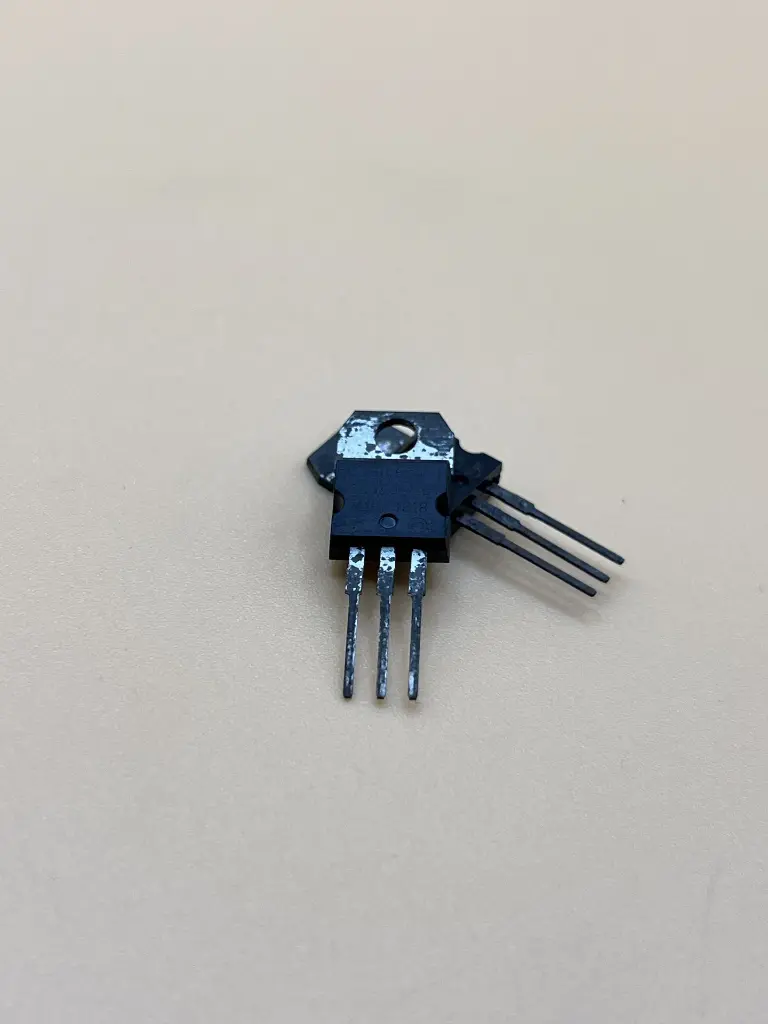

The L7806 is a three-terminal positive voltage regulator that provides a fixed output voltage of 6V with a maximum output current of 1.5A. This refurbished component is designed for applications requiring a stable and reliable power supply, making it suitable for various electronics projects and circuits. Despite being refurbished, the L7806 maintains the same high-quality performance as a new component, ensuring cost-effective and efficient voltage regulation.
Key Features:
- Fixed Output Voltage: 6V
- Output Current: Up to 1.5A
- Thermal Overload Protection: Prevents overheating
- Short-Circuit Protection: Ensures safety in case of a short circuit
- Safe Operating Area Protection: Maintains safe operation under various conditions
- Dropout Voltage: Typically 2V at full load
- Dimensions: TO-220 package (10.4 mm x 4.6 mm x 9.15 mm excluding leads)
- Weight: Approximately 2 g
- Input Voltage Range: 8V to 25V
- Output Voltage Tolerance: ±2%
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance: Junction-to-case (RθJC): 5°C/W, Junction-to-ambient (RθJA): 50°C/W
- Output Noise Voltage: 40 µV (10 Hz to 100 kHz)
- Line Regulation: 0.01%/V
- Load Regulation: 0.1%
- Power Supplies: Used in regulated power supplies for various electronic circuits.
- Embedded Systems: Provides stable voltage for microcontrollers and other components.
- DIY Projects: Suitable for hobbyist electronics projects requiring a 6V regulated power supply.
- Industrial Applications: Ensures reliable power regulation in industrial control systems.
- Consumer Electronics: Powers various consumer electronic devices with a stable voltage.
