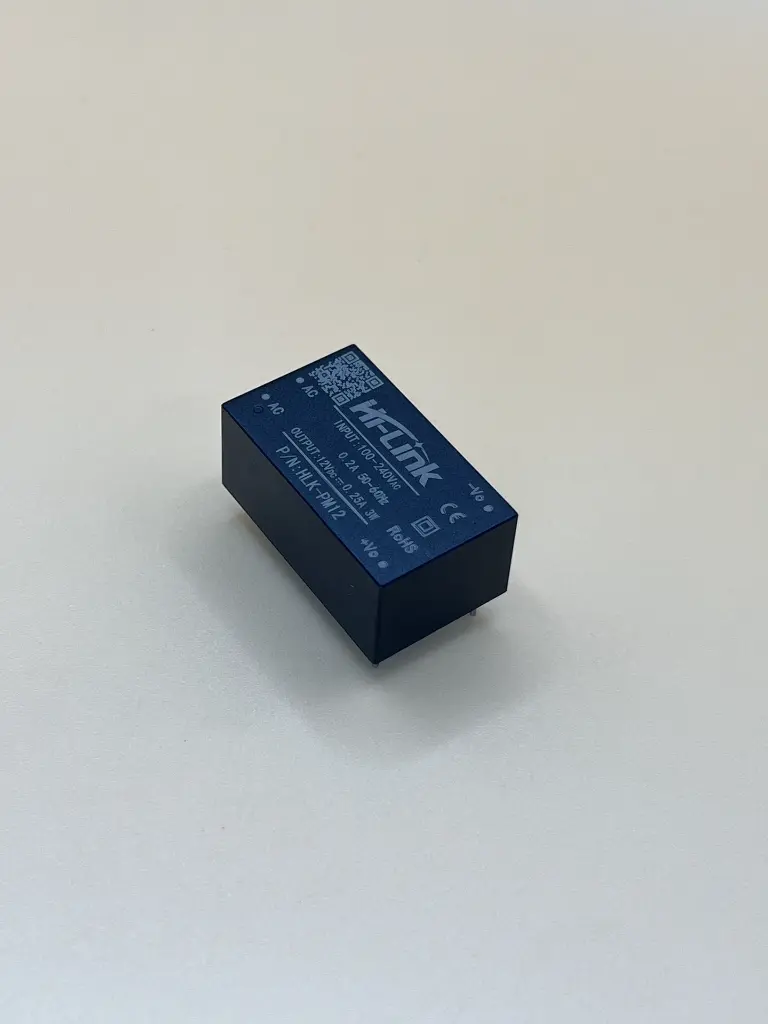

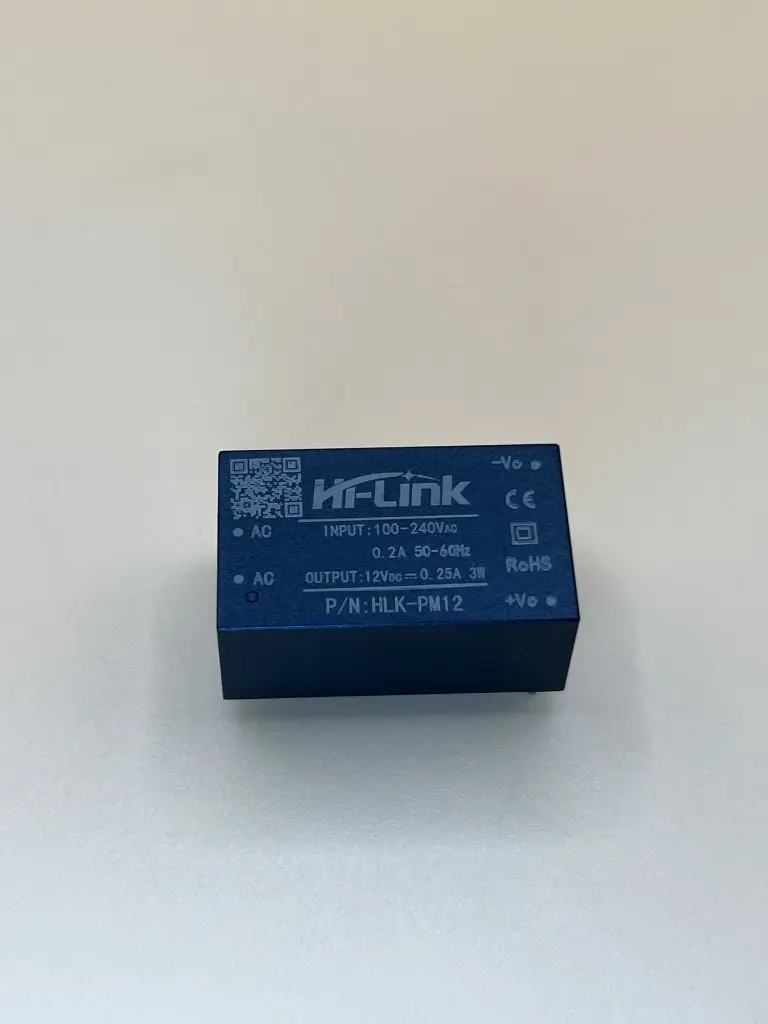

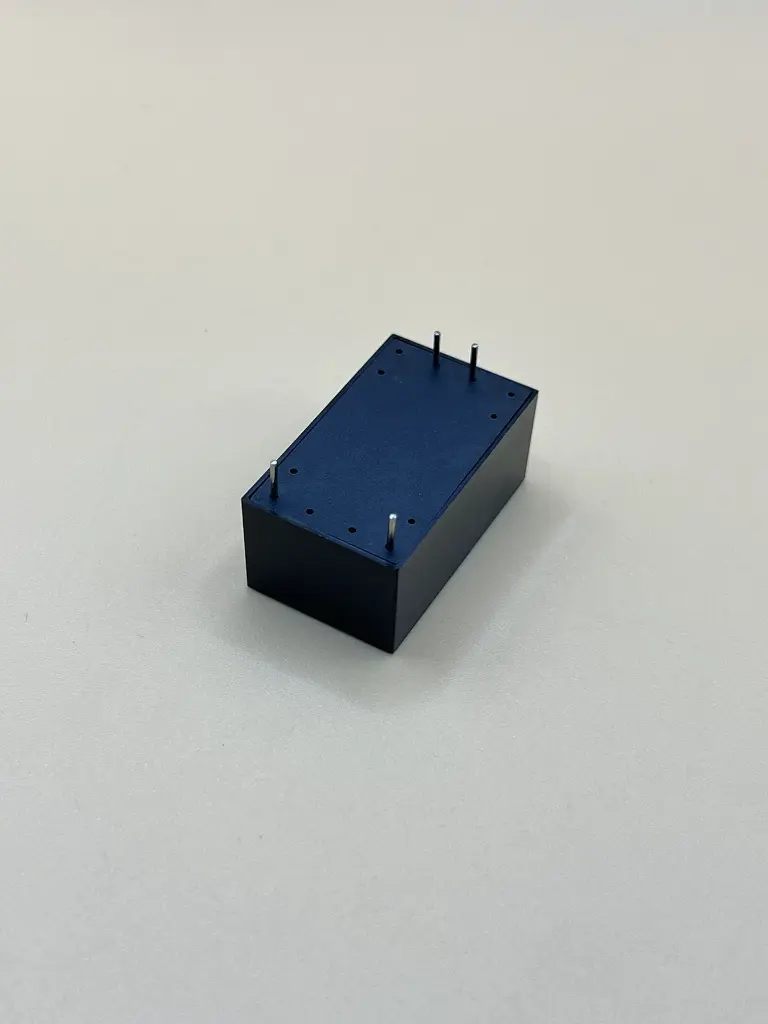

AC-DC Isolated Power Module 220VAC-12VDC

The AC-DC Isolated Power Module 220VAC-12VDC is a high-efficiency power conversion device designed to provide a stable 12V DC output from a standard 220V AC mains supply. This module features electrical isolation between the input and output, enhancing safety and protection in various applications. It is widely used in industrial automation, instrumentation, home appliances, and other electronics that require reliable and isolated power. Key Features:

• Input Voltage: 220V AC (nominal)
• Output Voltage: 12V DC
• Isolation: Electrical isolation between input and output for enhanced safety
• Efficiency: High efficiency for energy saving
• Protection: Overload, overvoltage, and short-circuit protection
• Compact Size: Small form factor for easy integration
• Mounting: PCB mountable or screw terminals for flexible installation

Technical Specifications:

• Dimensions: Varies by model (e.g., 50 mm x 25 mm x 20 mm)
• Weight: Approximately 30 g
• Input Voltage Range: 85V to 265V AC
• Output Current: Up to 1A (12W)
• Ripple and Noise: ≤ 120mV
• Isolation Voltage: 3000V AC
• Operating Temperature: -25°C to +70°C
• Humidity: 10% to 90% RH (non-condensing)
• Connector Types: PCB pins or screw terminals

Applications:

• Industrial Automation: Provides isolated power for control systems and machinery.
• Instrumentation: Powers sensitive measurement devices with stable and isolated output.
• Home Appliances: Suitable for powering low-voltage electronics in household devices.
• Embedded Systems: Supplies isolated power to embedded circuits and microcontrollers.
• General Electronics: Ideal for projects and devices requiring a reliable 12V DC supply from an AC source.

Datasheet: For detailed technical information, refer to the AC-DC Isolated Power Module 220VAC-12VDC Datasheet.
