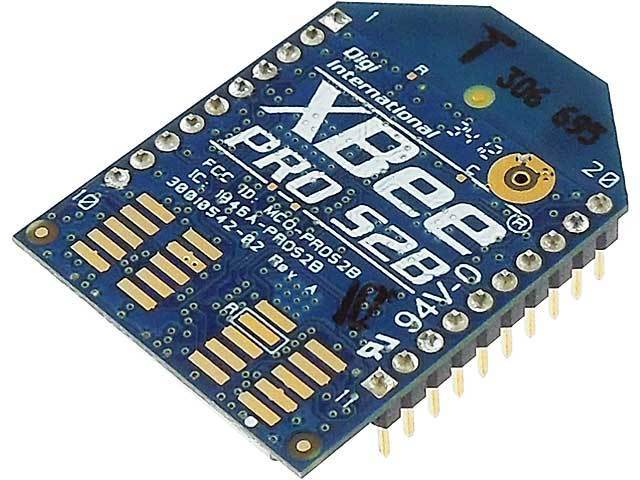

The Xbee Pro S2B is a high-performance, low-power Zigbee module designed for reliable wireless communication in a variety of applications. It offers enhanced range and power capabilities, making it suitable for complex mesh networks and long-distance communication. This module is commonly used in IoT applications, home automation, industrial control, and wireless sensor networks due to its robust performance and easy integration.
Key Features:
- Protocol: Zigbee (IEEE 802.15.4)
- Frequency: 2.4 GHz
- Range: Up to 1 mile (1.6 km) line-of-sight
- Transmit Power: 63 mW (18 dBm)
- Receiver Sensitivity: -102 dBm
- Data Rate: Up to 250 kbps
- Networking Topologies: Point-to-point, point-to-multipoint, and mesh
- Security: 128-bit AES encryption
- Antenna Options: U.FL connector, RPSMA connector, and wire antenna
- Dimensions: 24.38 mm x 32.94 mm
- Weight: Approximately 3.4 g
- Communication: UART, SPI
- On-board LEDs: Association, Receive, and Transmit indicators
- Power:
- Supply Voltage: 2.7V to 3.6V
- Transmit Current: 215 mA
- Receive Current: 55 mA
- Sleep Current: <10 µA
- Connectors:
- 20-pin through-hole interface
- U.FL or RPSMA connector for external antenna
- Home Automation: Enables wireless control and monitoring of home appliances and systems.
- Industrial Control: Facilitates remote monitoring and control in industrial environments.
- IoT Projects: Ideal for creating and managing IoT networks and applications.
- Wireless Sensor Networks: Supports deployment of wireless sensors for data collection and monitoring.
- Embedded Systems: Integrates easily into embedded systems requiring reliable wireless communication.
