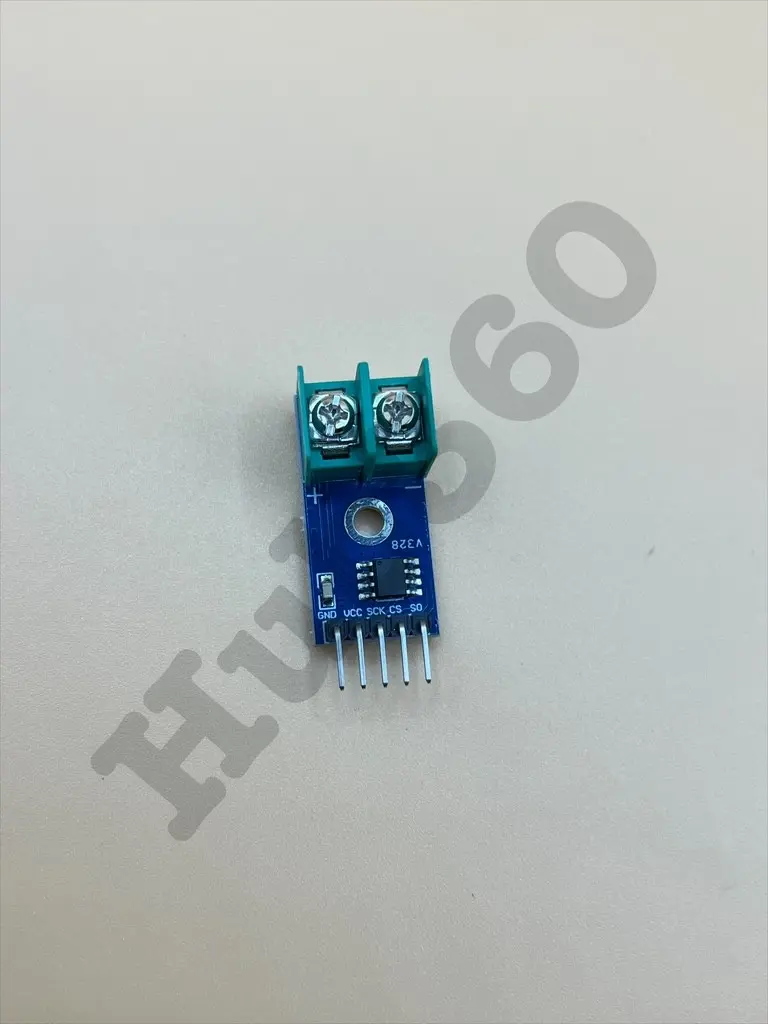

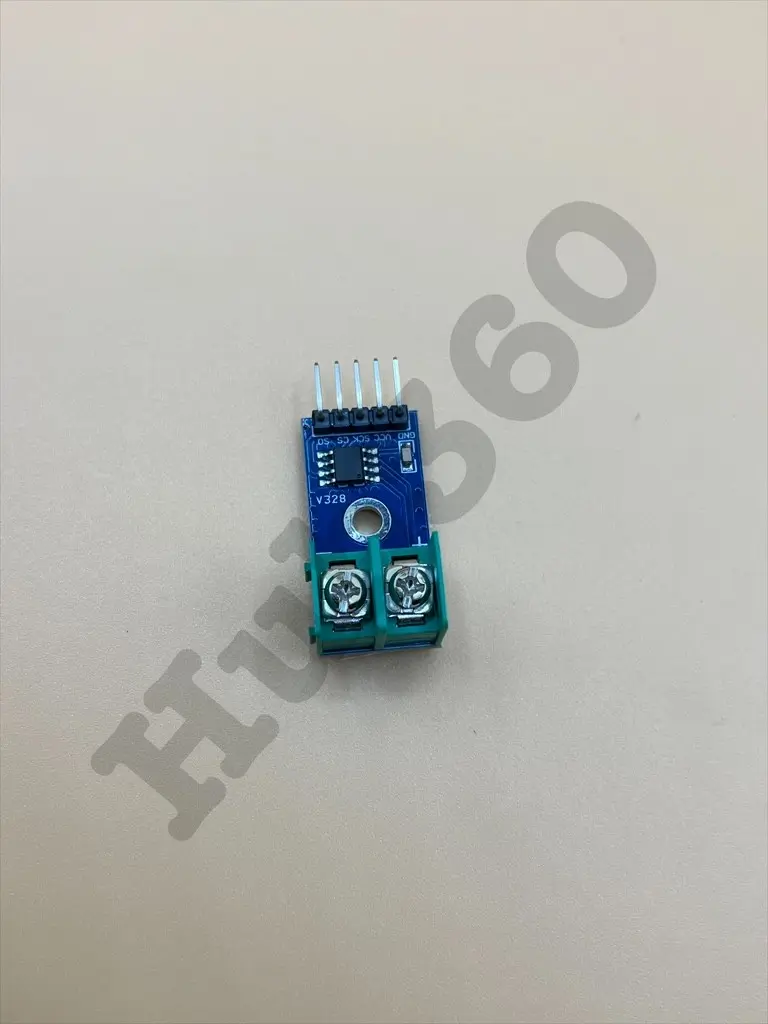

The MAX6675 thermocouple module is a sophisticated temperature-sensing device that interfaces with a K-type thermocouple to provide accurate temperature readings. It converts the thermocouple's analog signals to digital data, which can be easily read by a microcontroller through an SPI interface. This module is ideal for applications requiring precise temperature measurements and is commonly used in industrial, laboratory, and home automation projects.
Key Features:
- Thermocouple Compatibility: K-type
- Temperature Range: 0°C to 1024°C
- Resolution: 0.25°C
- Interface: SPI (Serial Peripheral Interface)
- Accuracy: ±2°C for temperatures ranging from 0°C to 700°C
- Integrated Cold-Junction Compensation: Ensures accurate temperature readings by compensating for the temperature at the thermocouple's reference junction
- Operating Voltage: 3.0V to 5.5V
- Temperature Range: 0°C to 1024°C
- Resolution: 12-bit (0.25°C resolution)
- Accuracy: ±2°C (0°C to 700°C)
- Cold-Junction Compensation: Integrated
- SPI Clock Frequency: Up to 4.3 MHz
- Package: 8-pin SOIC (MAX6675 chip), module size typically 20 mm x 15 mm
- Industrial: Temperature monitoring in furnaces, kilns, and other high-temperature environments.
- Laboratory: Precise temperature measurement in scientific experiments and research.
- Home Automation: Used in heating systems, ovens, and other appliances that require temperature regulation.
- Electronics Projects: Ideal for DIY electronics projects that need temperature sensing capabilities.
- Automotive: Temperature sensing in engines and other automotive components.
