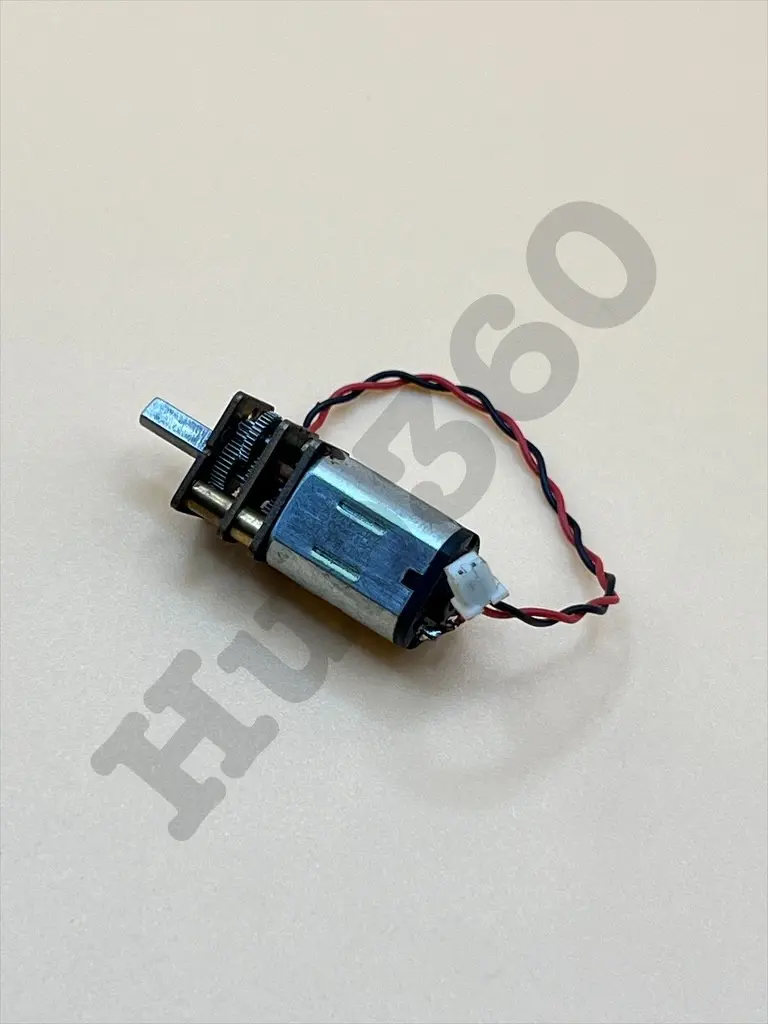

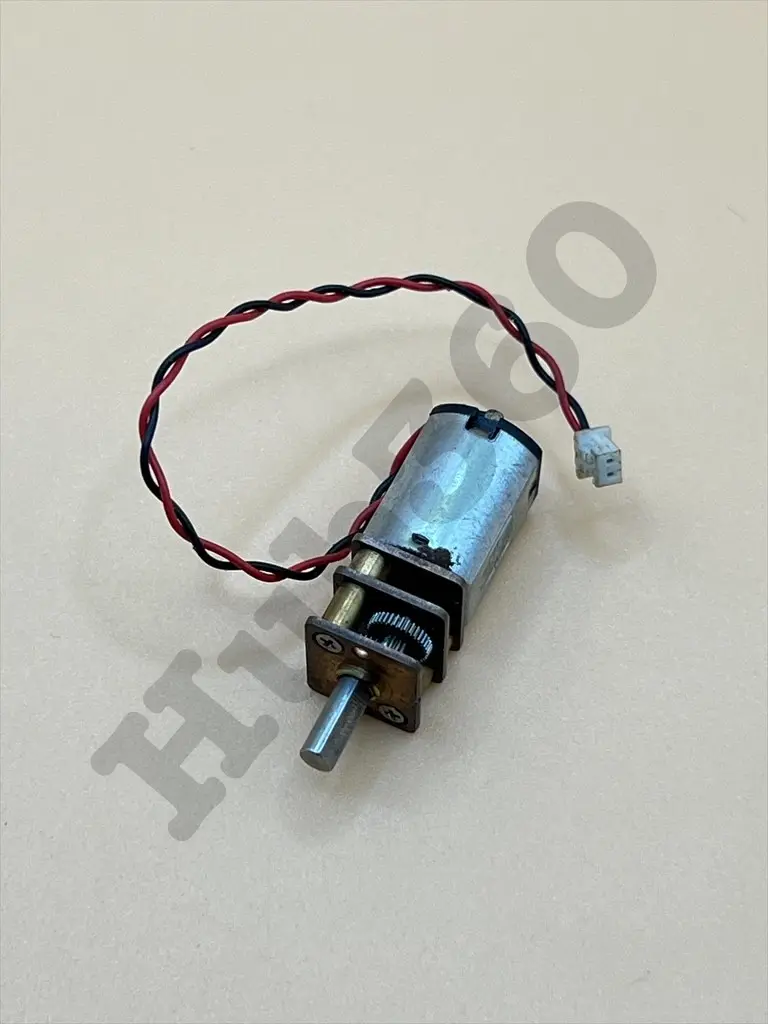

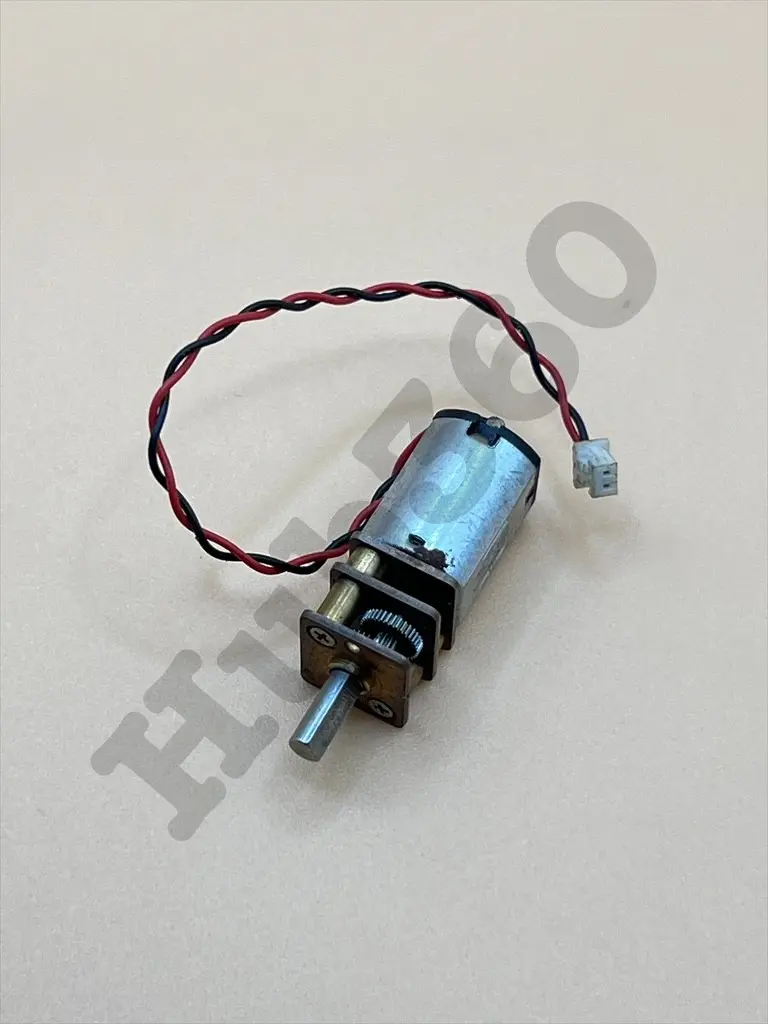

The N20 Geared Motor 6V is a small, high-torque DC motor with an integrated gearbox, designed for precise and efficient mechanical movement. Its compact size and robust performance make it ideal for a variety of applications, including robotics, DIY projects, automation systems, and model vehicles. The motor operates on a 6V power supply and offers a balance of speed and torque suitable for light-duty mechanical tasks.
Key Features:
- Compact and lightweight design
- High torque output
- Low power consumption
- Durable metal gears
- Suitable for precise and efficient mechanical movement
- Easy to integrate into various projects
- Voltage: 6V DC
- No-load Speed: 300 RPM
- No-load Current: 40 mA
- Stall Torque: 0.8 kg.cm
- Stall Current: 1.6A
- Gear Ratio: 1:50
- Motor Dimensions: 12mm x 10mm x 15mm
- Shaft Diameter: 3mm
- Shaft Length: 10mm
- Weight: 10g
- Robotics
- DIY electronics projects
- Model vehicles
- Automation systems
- Precision mechanical devices
- Small-scale conveyor systems
- Connect the motor to a 6V DC power supply.
- Integrate the motor into your project, ensuring it is securely mounted.
- Connect the output shaft to your mechanical system.
- Control the motor speed and direction using a suitable motor driver or controller.
- Avoid stall conditions to prevent damage to the motor.
- Ensure proper voltage and current supply.
- Use appropriate mounting techniques to secure the motor.
- Avoid exposure to water and excessive dust.
