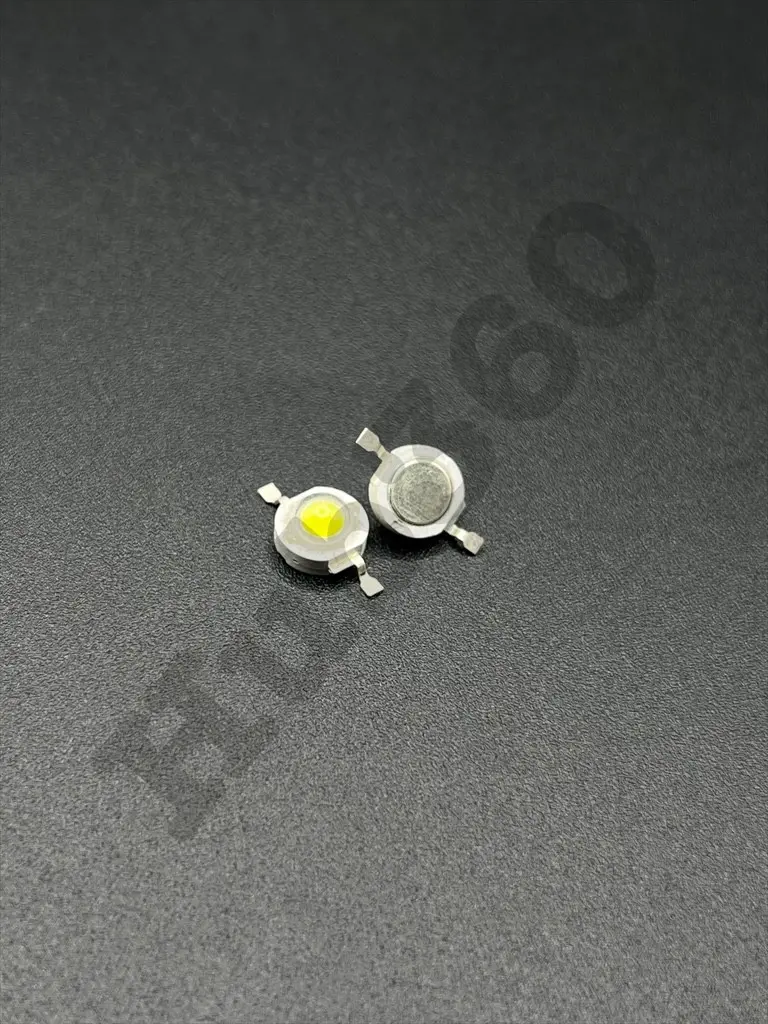

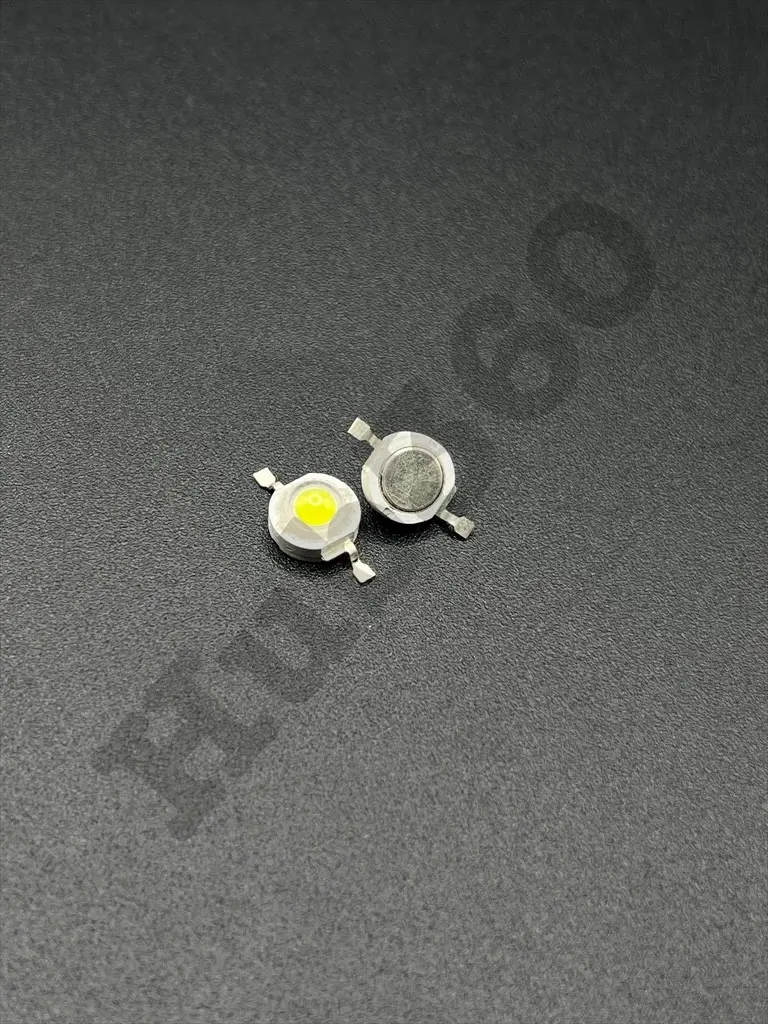

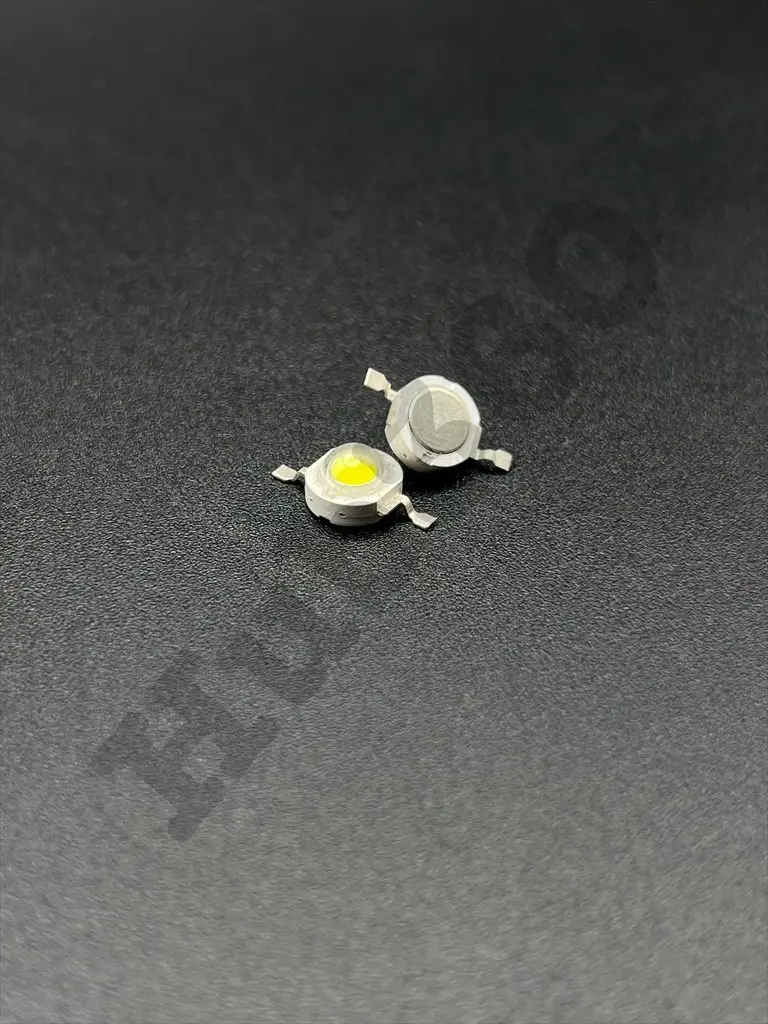

The 1W White High Power LED is a powerful and energy-efficient light source designed for a wide range of lighting applications. It provides bright white light with high luminous efficacy and long-lasting performance. The LED is ideal for use in flashlights, spotlights, automotive lighting, and other illumination projects where high brightness and reliability are required.
Key Features:
Key Features:
- High luminous efficacy
- Low power consumption
- Long lifespan
- High brightness output
- Compact and robust design
- Wide viewing angle
- Low thermal resistance
- Power Consumption: 1W
- Forward Voltage: 3.0V - 3.4V
- Forward Current: 350mA
- Luminous Flux: 80-100 lm
- Color Temperature: 6000K - 6500K (Cool White)
- Viewing Angle: 120°
- Thermal Resistance: < 10°C/W
- Lifespan: > 50,000 hours
- Operating Temperature: -40°C to +85°C
- Dimensions: 6mm x 6mm x 4mm
- Weight: 1g
- Flashlights and torches
- Spotlights and downlights
- Automotive lighting
- Street and outdoor lighting
- Decorative lighting
- DIY lighting projects
- Emergency lighting
- Connect the LED to a suitable constant current driver to ensure stable operation.
- Mount the LED on a heatsink to manage thermal dissipation.
- Solder the anode (+) and cathode (-) to the appropriate terminals.
- Integrate the LED into your lighting fixture or project.
- Handle with care to avoid damage to the LED.
- Ensure proper thermal management to prevent overheating.
- Do not exceed the recommended forward current and voltage.
- Use a suitable constant current driver for optimal performance.
