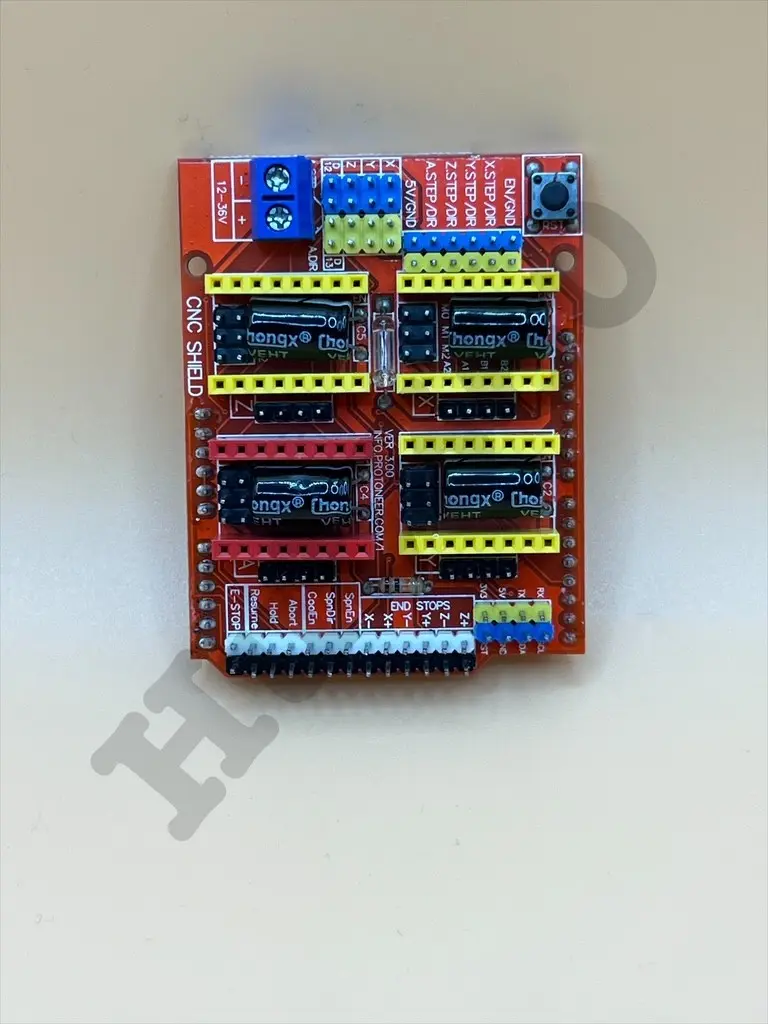

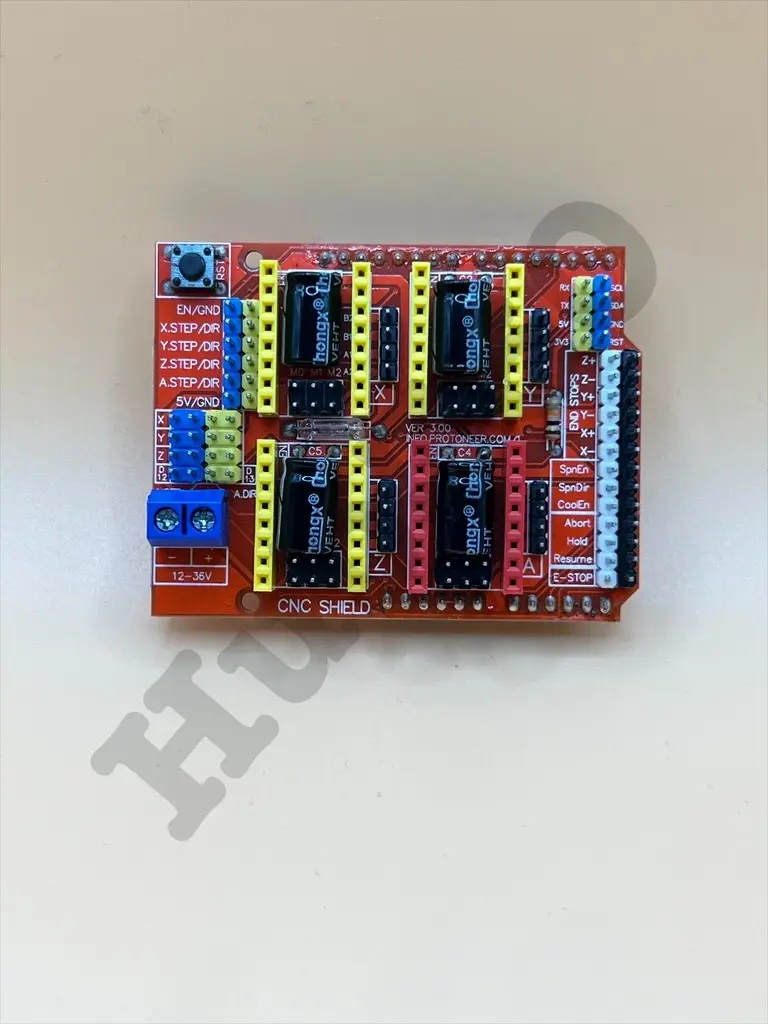

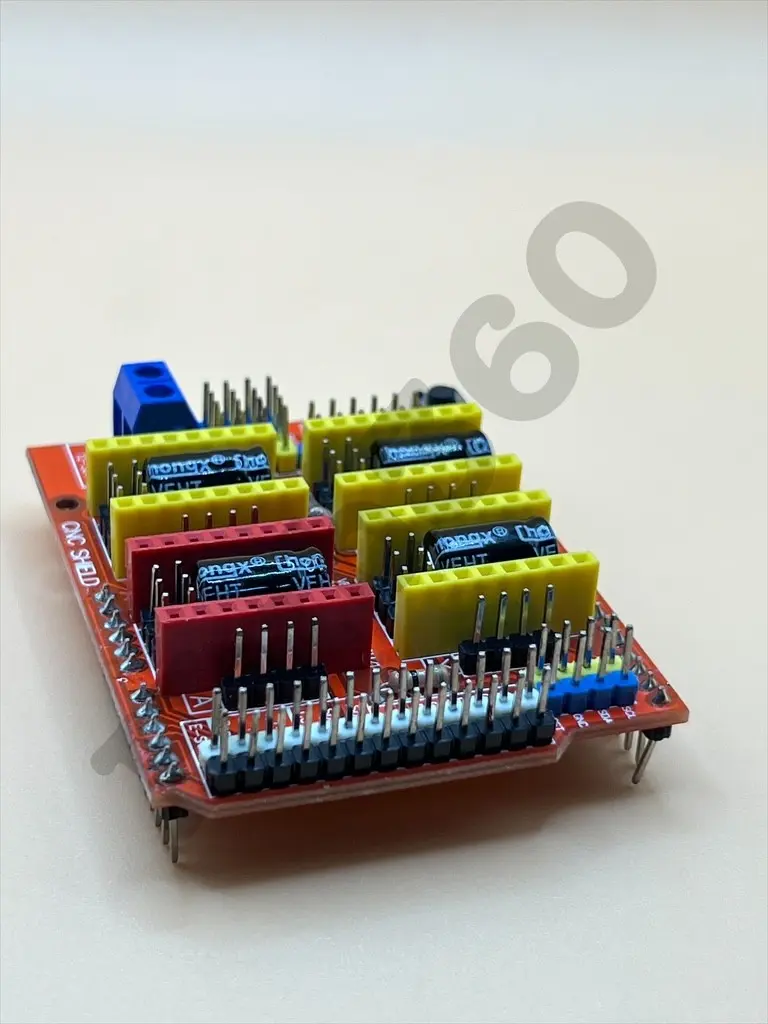

The CNC Shield V3 is an expansion board for the Arduino Uno that allows you to easily control a CNC (Computer Numerical Control) machine. It is designed to be compatible with GRBL firmware, making it ideal for DIY CNC projects. This shield can control up to four stepper motors and includes sockets for A4988 or DRV8825 stepper motor drivers.
Key Features:
- Compatible with Arduino Uno
- Supports GRBL firmware
- Controls up to 4 stepper motors (X, Y, Z, A axis)
- Sockets for A4988 or DRV8825 stepper motor drivers
- Adjustable microstepping settings
- Compact and easy to install
- Integrated heat sink for motor drivers
- Screw terminals for easy connection
- Reset and Enable buttons for easy operation
- Input Voltage: 12-36V DC
- Supported Stepper Drivers: A4988, DRV8825
- Number of Axes: 4 (X, Y, Z, A)
- Microstepping Settings: Full step, half step, 1/4 step, 1/8 step, 1/16 step
- Compatible Microcontroller: Arduino Uno
- Dimensions: 68 x 53 mm
- DIY CNC machines
- 3D printers
- Laser cutters
- Engraving machines
- Robotics projects
