Description

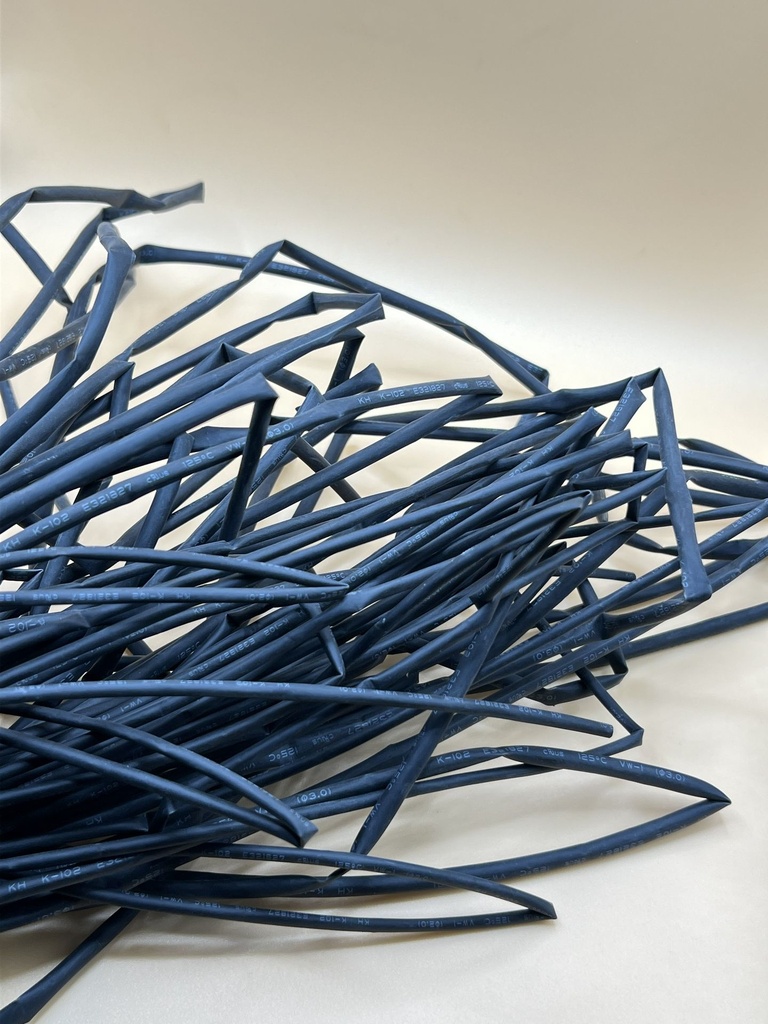

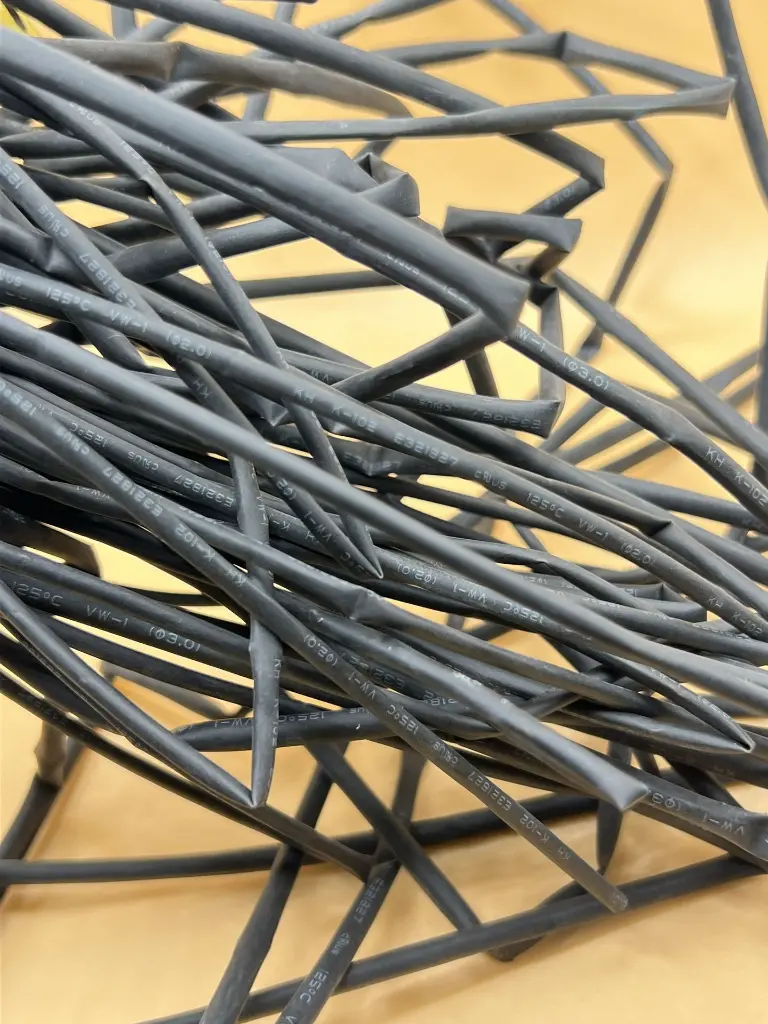

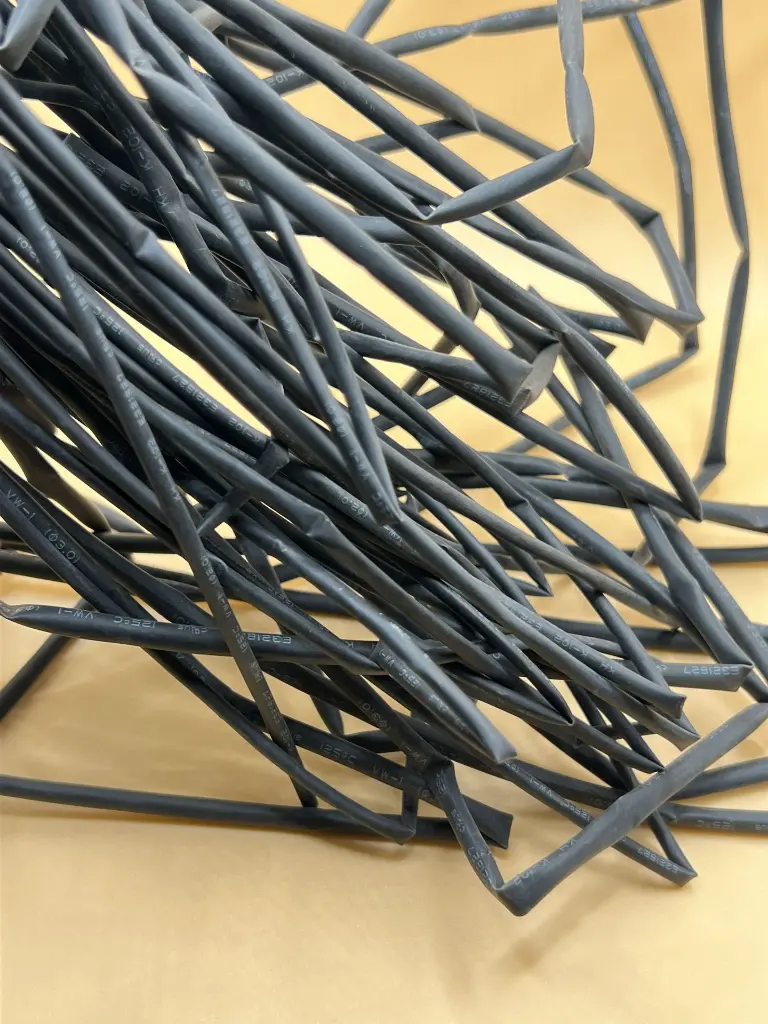

The Heat Shrinkable Tube 3mm is a reliable and versatile solution for insulating, protecting, and organizing wires and electrical components. Made from high-quality polyolefin, this tubing provides excellent electrical insulation, mechanical protection, and resistance to environmental factors.
Key Features
- High-Quality Material – Made from durable and flexible polyolefin.
- 2:1 Shrink Ratio – Shrinks to half its original diameter when heated.
- Excellent Insulation – Provides electrical insulation and mechanical protection.
- Wide Temperature Range – Operates in extreme temperatures.
- Chemical Resistance – Resistant to oils, solvents, and common chemicals.
- Multiple Colors Available – Suitable for wire identification and color coding.
- Easy to Use – Shrinks quickly using a heat gun or lighter.
Specification
- Inner Diameter (Before Shrinking): 3mm
- Inner Diameter (After Shrinking): 1.5mm
- Shrink Ratio: 2:1
- Wall Thickness (After Shrinking): 0.45mm – 0.75mm
- Operating Temperature Range: -55°C to 125°C
- Shrink Temperature: Starts at 70°C, fully shrinks at 125°C
- Material: Polyolefin
Usage Instructions
- Cut to Length – Cut the heat shrink tube to the required length.
- Slide Over Connection – Place the tube over the wire or joint.
- Apply Heat – Use a heat gun or lighter to heat evenly.
- Shrink and Secure – The tube will shrink tightly around the connection.
Application
- Electrical wire insulation
- Protecting electrical connections
- Strain relief for soldered or crimped joints
- Cable bundling and cable management
- Environmental protection against dust and moisture
- Repairing damaged wire insulation
- Electronics and DIY projects
