Description

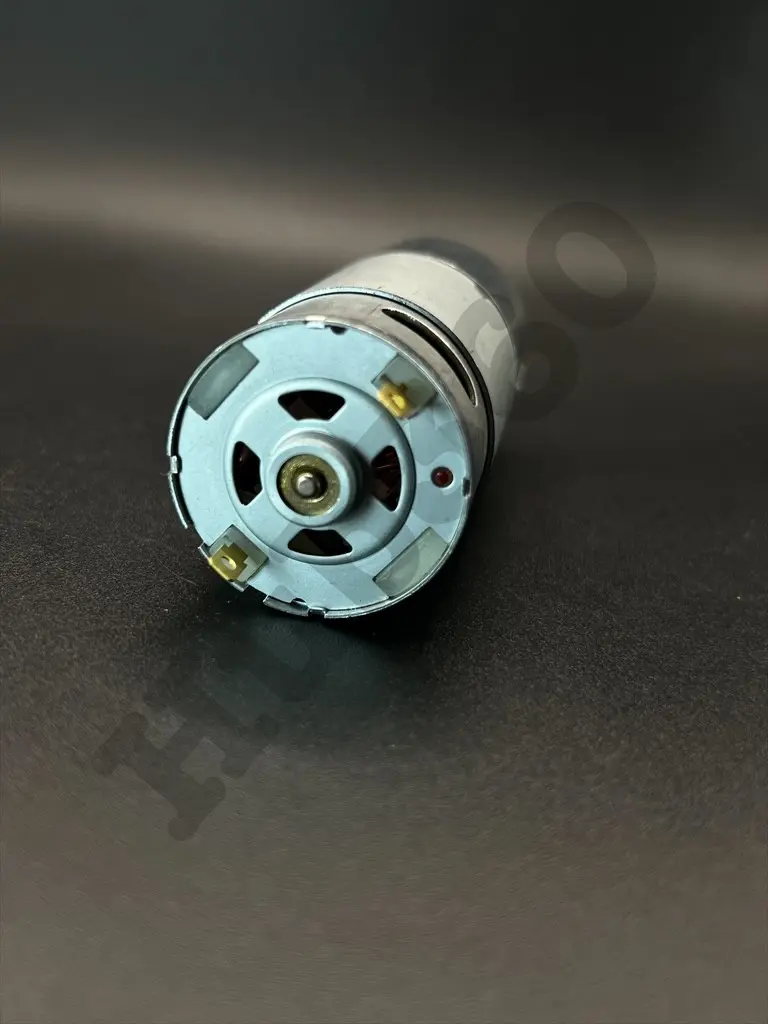

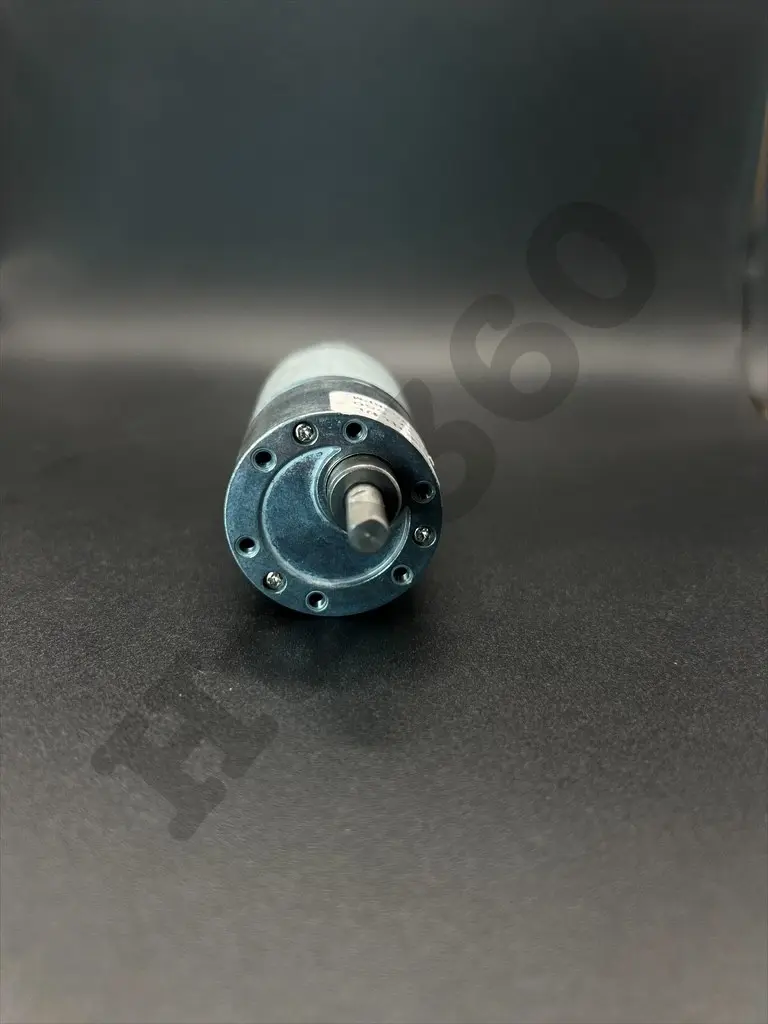

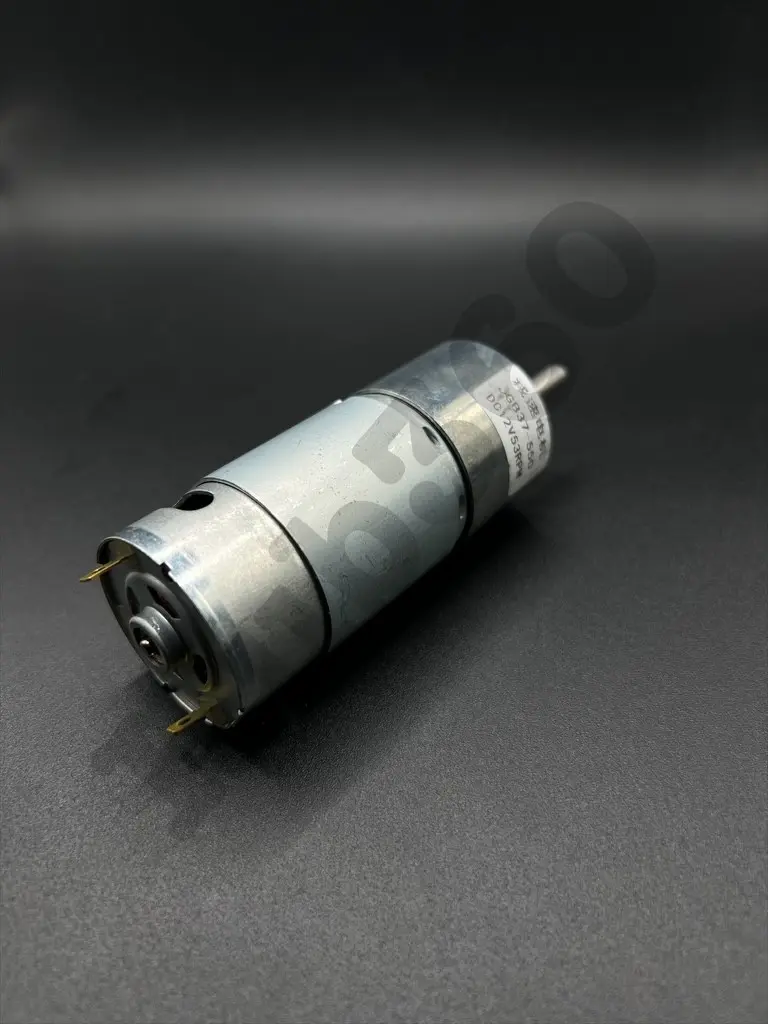

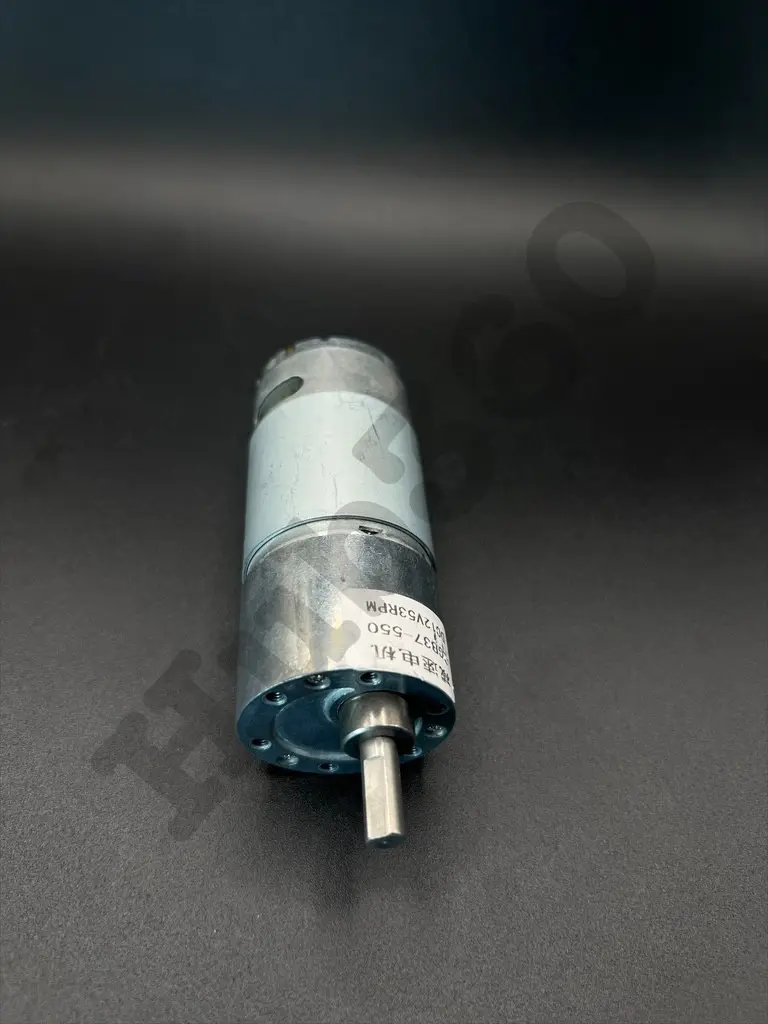

The 550 High Torque 12V DC Geared Motor (53RPM) is a robust and powerful motor designed for applications requiring high torque, low-speed operation, and reliable performance. Its integrated gearbox delivers enhanced torque while maintaining stable rotational speed, making it ideal for robotics, automation, and mechanical drive systems.
Key Features
- High Torque Output: Provides strong torque suitable for heavy-duty and load-bearing applications.
- 12V DC Operation: Optimized for 12V DC power supplies and battery systems.
- 53 RPM Output Speed: Low-speed geared output for precise and controlled movement.
- Integrated Gearbox: Improves torque while reducing motor speed efficiently.
- Durable Construction: Built using high-quality metal components for long operational life.
- Compact Design: Suitable for space-constrained mechanical and robotic assemblies.
- Reversible Rotation: Direction can be changed by reversing input polarity.
Specification
- Motor Type: 550 DC Geared Motor
- Operating Voltage: 12V DC
- Rated Speed: 53 RPM
- Gear Reduction Ratio: 1:188
- Torque: High torque output (typically suitable for medium to heavy mechanical loads)
- Current Consumption: Approx. 2–3A under normal load (higher during startup/stall)
- Gearbox Type: Metal reduction gearbox
- Output Shaft: Metal shaft compatible with wheels, couplers, and gears
- Motor Diameter: Approx. 36mm
- Overall Length: Approx. 90–120mm (varies by gearbox model)
- Weight: Approx. 250–400g
Application
- Robotics and mobile robots
- Automated mechanisms and actuators
- Conveyor and drive systems
- DIY engineering projects
- RC and hobby applications
- Smart locking and opening systems
-
Industrial mini-machinery
