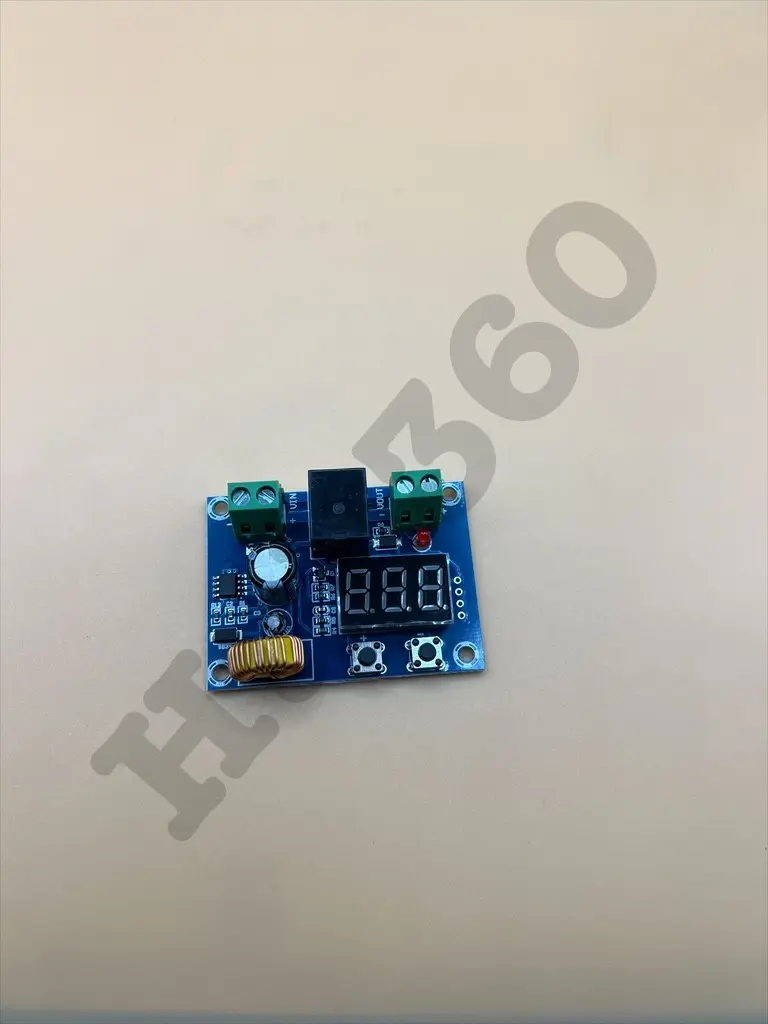

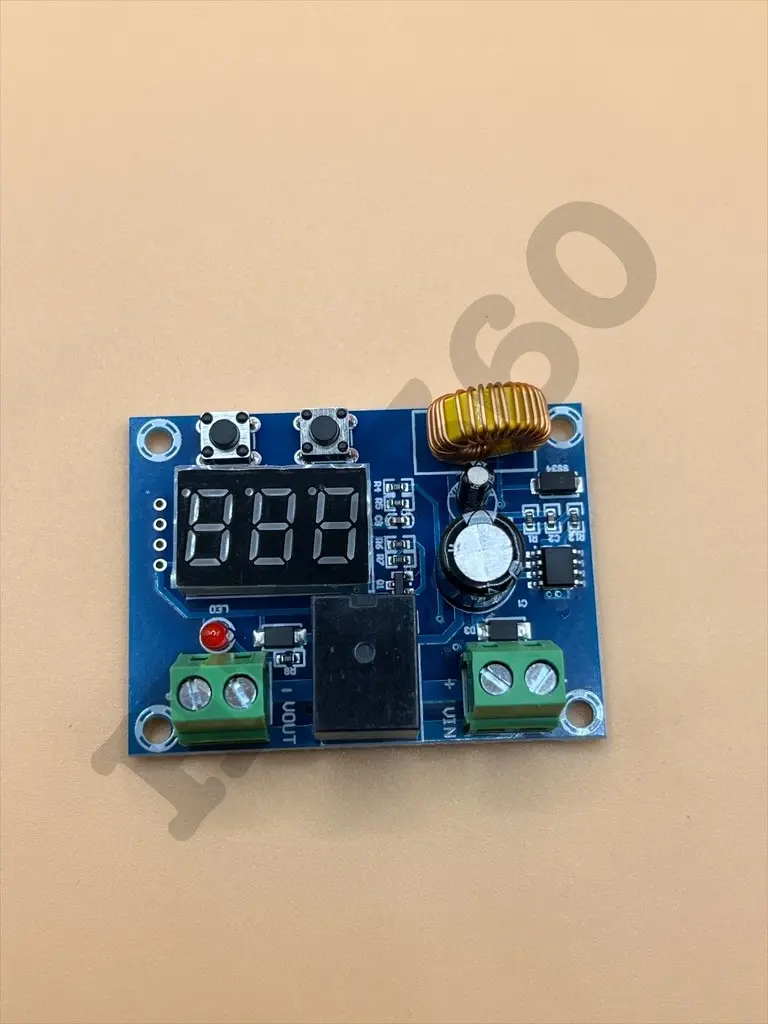

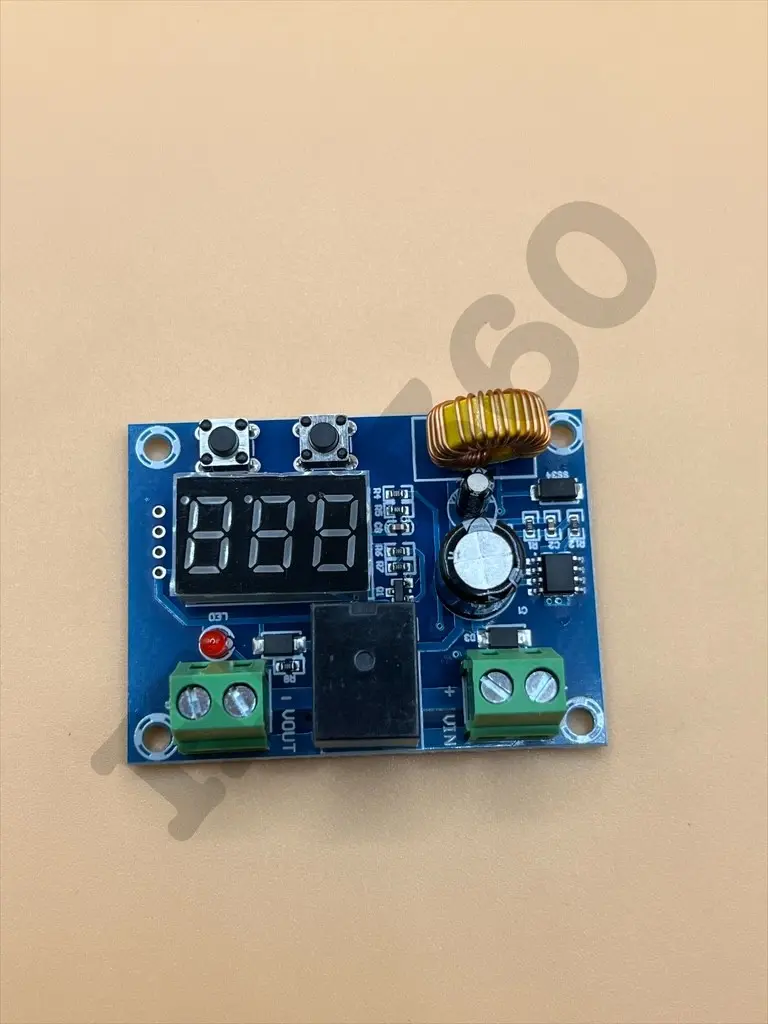

XH-M609 battery over discharge protection module
3 sold in last 24 hours
The XH-M609 Battery Over Discharge Protection Module is designed to protect rechargeable batteries from being discharged beyond their safe limit. It automatically disconnects the load when the battery voltage drops below a preset threshold, thereby preventing damage to the battery and extending its lifespan. This module is suitable for use with various battery types, including lithium-ion, lithium-polymer, and lead-acid batteries.
Key Features:
- Automatic Protection: Automatically disconnects the load to prevent battery over-discharge.
- Adjustable Voltage Threshold: Allows users to set the cut-off voltage according to their specific requirements.
- LED Indicators: Provides visual status indicators for power and load connection.
- Compact Design: Small and lightweight, making it easy to integrate into various battery-powered projects.
- Wide Compatibility: Suitable for different battery types, including lithium-ion, lithium-polymer, and lead-acid batteries.
- Simple Setup: Easy to configure and use with minimal setup required.
- Operating Voltage: 12V/24V
- Control Voltage Range: 10.5V to 11.5V (adjustable)
- Maximum Load Current: 10A
- Size: 61mm x 34mm x 12mm
- Weight: 15g
- LED Indicators: Power (red), Load (green)
- Battery-Powered Devices: Suitable for use in various battery-operated devices to prevent over-discharge.
- Renewable Energy Systems: Ideal for solar or wind energy storage systems to protect the battery bank.
- Portable Electronics: Useful for protecting batteries in portable electronic devices and DIY projects.
- Automotive Applications: Can be used in automotive systems to protect vehicle batteries.
No Specifications
