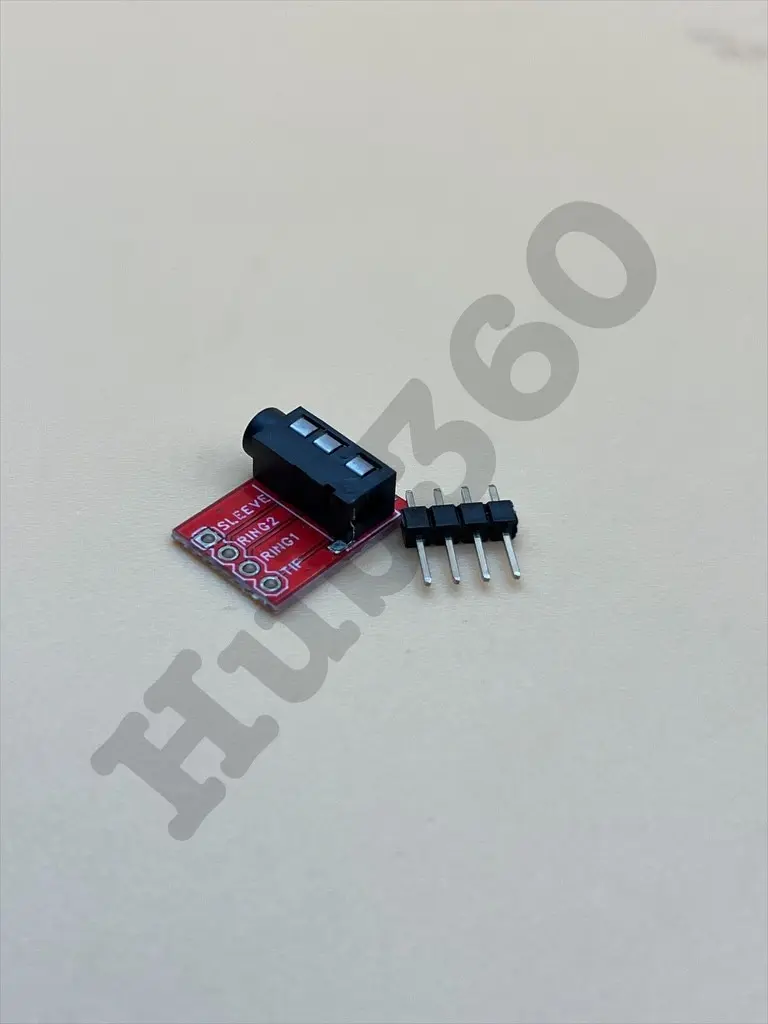

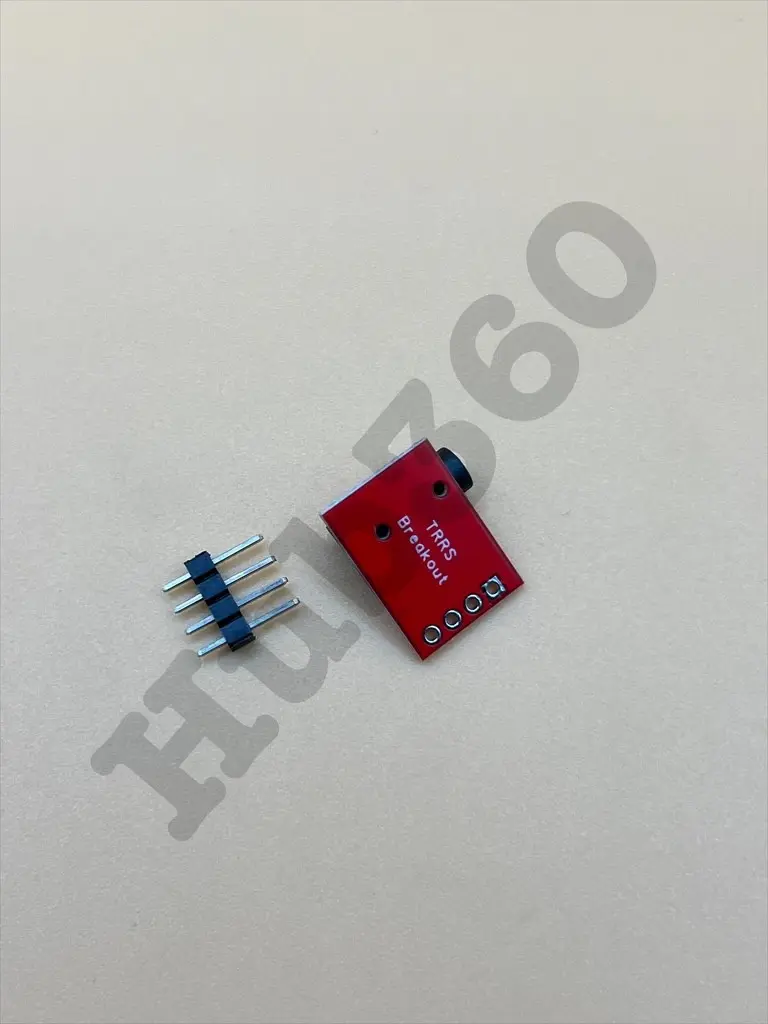

The TRRS 3.5mm Audio Jack Module is a versatile and easy-to-use module designed to interface with standard 3.5mm audio jacks. This module is ideal for projects that require audio input and output, such as headphones, microphones, and multimedia devices. It supports TRRS (Tip-Ring-Ring-Sleeve) connections, which are commonly used in mobile devices and other audio equipment.
Key Features:
Key Features:
- Standard 3.5mm Audio Jack: Compatible with most audio devices.
- TRRS Connection: Supports Tip-Ring-Ring-Sleeve configuration.
- Versatile Applications: Suitable for audio input and output applications.
- Easy Integration: Simple to interface with microcontrollers and other electronic components.
- Compact Design: Small footprint for easy integration into various projects.
- Connector Type: 3.5mm TRRS Audio Jack

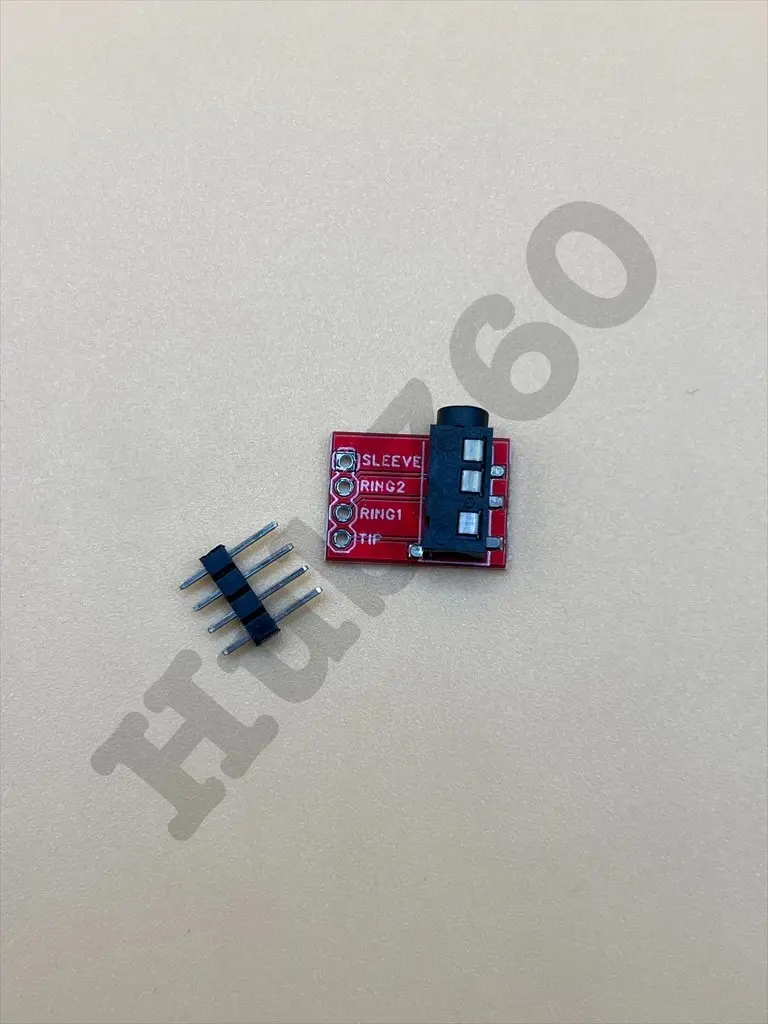

- Pins: 4 (Tip, Ring 1, Ring 2, Sleeve)
- Compatibility: Compatible with most mobile devices, headphones, and microphones
- Dimensions: Compact size for easy integration
- Mounting Type: PCB mount
- Audio Projects: Perfect for audio-related projects such as headphone amplifiers and audio recorders.
- Multimedia Devices: Suitable for integrating audio functionality into multimedia devices.
- Mobile Accessories: Ideal for creating mobile phone accessories like headphone splitters and microphone adapters.
- Prototyping: Useful for prototyping and testing audio circuits.
No Specifications
