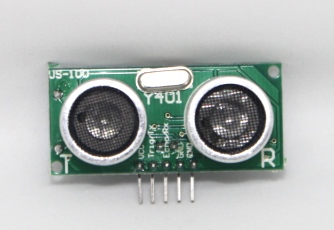

The US-100 Ultrasonic Sensor is a high-performance distance measuring module that uses ultrasonic waves to measure distances accurately. It is designed for applications requiring precise distance measurements, such as robotics, object avoidance, and proximity detection. The sensor can be used in a wide range of environments and provides reliable and stable readings.
Key Features:
- High Accuracy: Provides precise distance measurements.
- Wide Measurement Range: Measures distances from 2cm to 450cm.
- Dual Output Modes: Supports both serial and PWM output modes.
- Temperature Compensation: Built-in temperature compensation for accurate readings.
- Low Power Consumption: Energy-efficient, making it suitable for battery-powered applications.
- Compact Design: Small and lightweight, easy to integrate into various projects.
- Measurement Range: 2cm to 450cm
- Operating Voltage: 2.4V to 5.5V
- Current Consumption: < 2mA
- Accuracy: ±0.3cm
- Resolution: 0.1cm
- Output Modes: Serial and PWM
- Working Frequency: 40kHz
- Dimensions: 20mm x 16mm x 7mm
- Operating Temperature: -15°C to +70°C
- Robotics: Used for obstacle avoidance and navigation.
- Distance Measurement: Suitable for measuring distances in various applications.
- Proximity Detection: Detects objects in close proximity.
- Level Sensing: Measures the level of liquids or solids in containers.
- Security Systems: Integrated into security systems for motion detection.
