Description

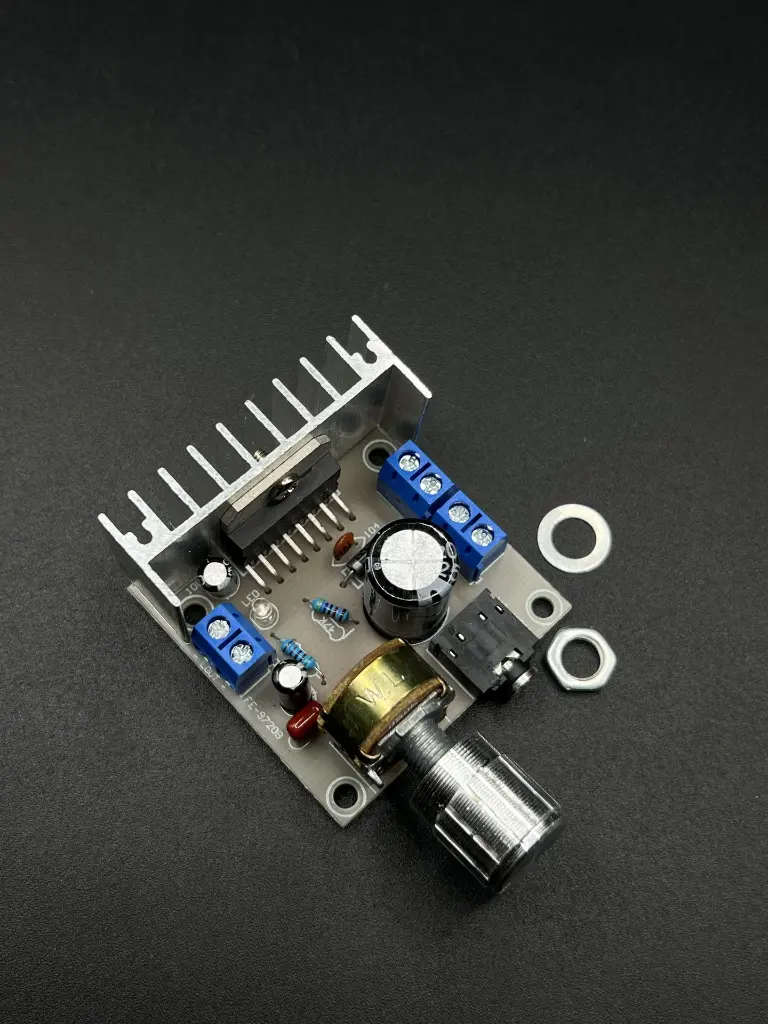

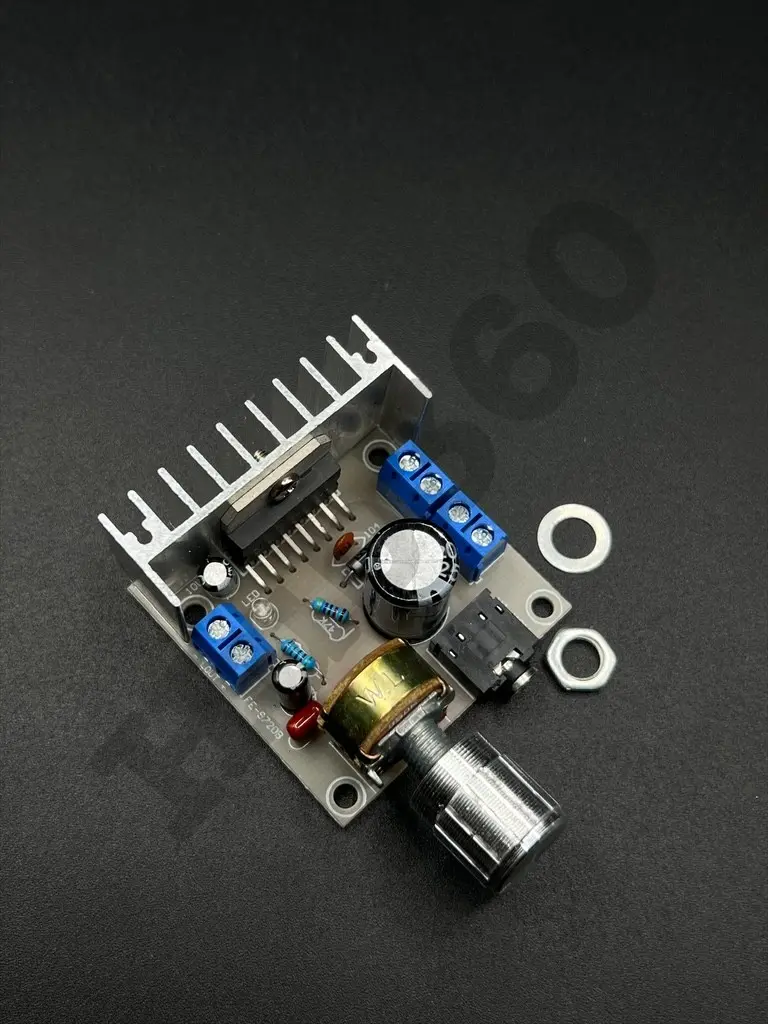

The TDA7297 Audio Power Amplifier Module is a high-performance dual bridge (BTL) amplifier designed to deliver clear, powerful, and high-fidelity sound. With an output of up to 15W + 15W stereo, this compact module is ideal for home audio systems, DIY audio projects, and portable speaker applications. Built-in protection features ensure reliable and safe operation, making it a dependable choice for both hobbyists and professionals.
Key Features
- High Power Output: Delivers up to 15W + 15W stereo audio output
- Wide Operating Voltage: Supports 6V to 18V DC power supply
- Low Distortion: High-quality audio reproduction with low THD
- Built-In Protection: Thermal shutdown and short-circuit protection for safe operation
- Compact Design: Easy to integrate into custom audio systems and projects
- Reliable Performance: Designed for stable and consistent audio amplification
Specification
- Amplifier Type: Dual bridge (BTL) stereo amplifier
- Output Power: 15W + 15W @ 8Ω (with 16V supply)
- Operating Voltage: 6V – 18V DC
- THD+N: <0.1% @ 1W, 8Ω
- Frequency Response: 20Hz – 20kHz
- Input Impedance: 30kΩ
- Dimensions: Compact module size (may vary by manufacturer)
Application
- Home audio and stereo speaker systems
- DIY and custom audio amplifier projects
- Portable and battery-powered speaker systems
- Educational projects and audio electronics learning
Datasheet: For detailed technical specifications and circuit diagrams, refer to the TDA7297 Datasheet.
