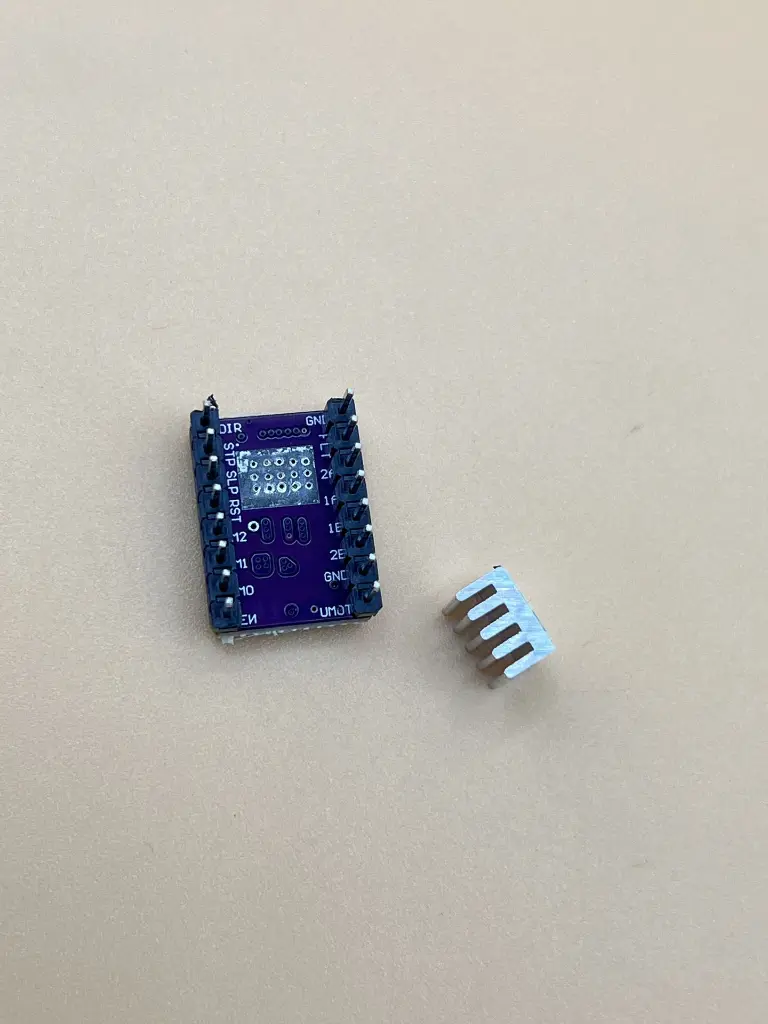

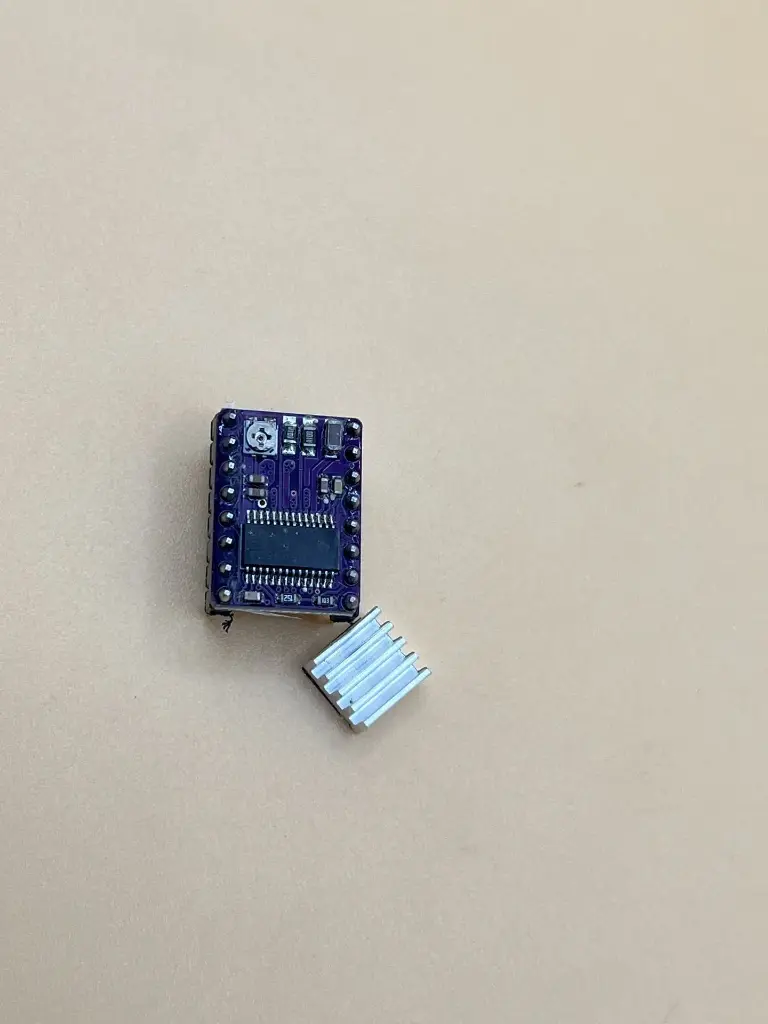

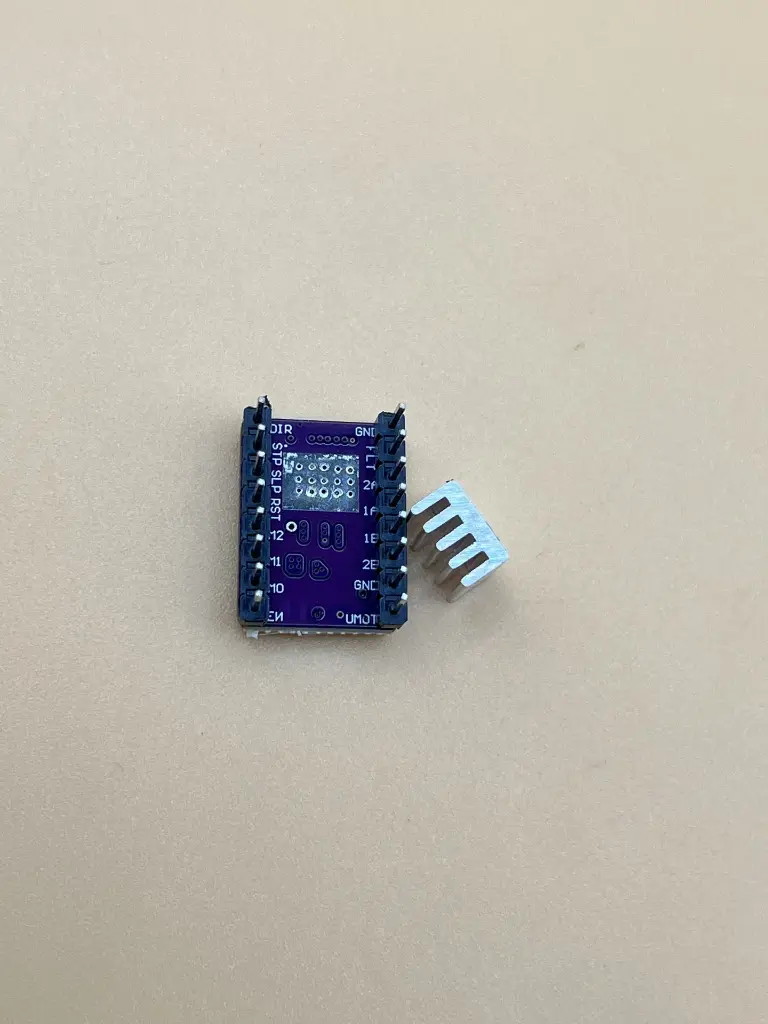

The DRV8825 is a high-performance stepper motor driver IC designed for precise control of stepper motors. It offers advanced features such as microstepping and current regulation, making it suitable for applications requiring smooth and accurate motion control.
Key Features:
- Microstepping: Supports up to 1/32 microstepping for smooth motion.
- Current Regulation: Adjustable current control to optimize motor performance and reduce heat.
- High Voltage Range: Operates with a wide voltage range, typically from 8.2V to 45V.
- Thermal Overload Protection: Includes built-in thermal shutdown and overcurrent protection.
- Low Noise Operation: Designed for quiet operation with minimal vibration and noise.
- Compact Design: Available in a small, easy-to-mount package.
- Voltage Range: 8.2V to 45V
- Current Range: Up to 2.5A per phase (with proper heat sinking)
- Microstepping: 1/32 microstepping
- Package Type: Usually comes in a 16-pin HTSSOP or similar package.
- Control Interface: Uses STEP and DIR inputs for step and direction control.
- 3D Printers: Widely used in 3D printers for precise motor control.
- CNC Machines: Ideal for controlling stepper motors in CNC applications.
- Robotics: Suitable for robotics applications requiring accurate and smooth motor control.
- Automated Systems: Used in various automated systems and machinery requiring stepper motor control.
