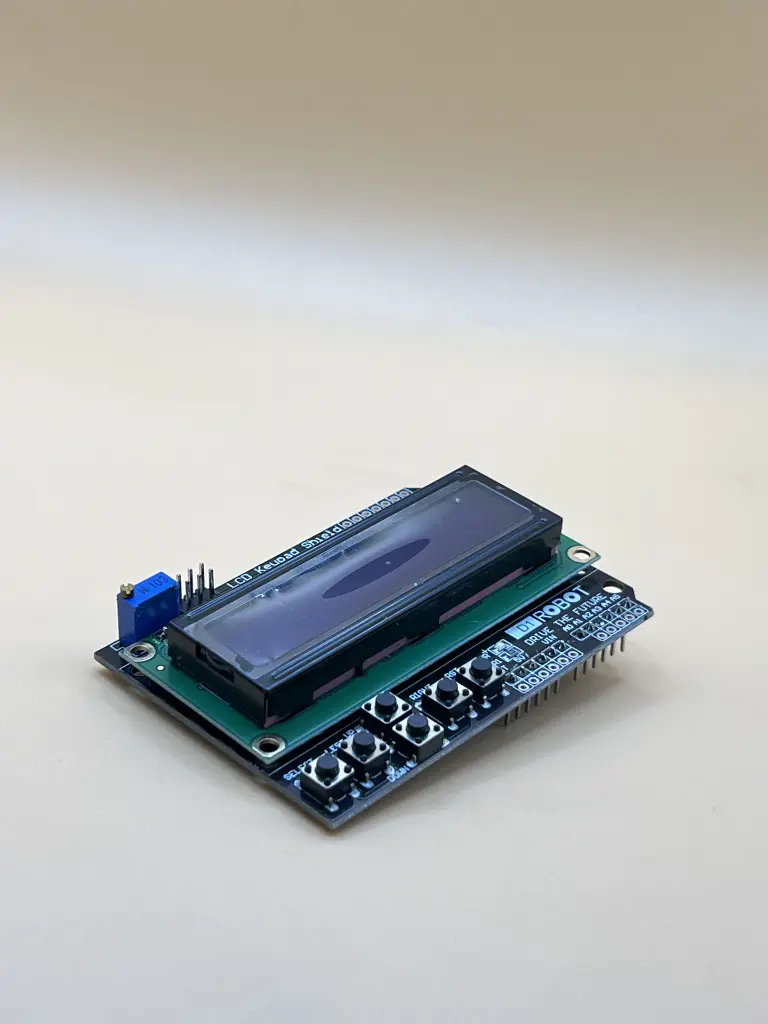

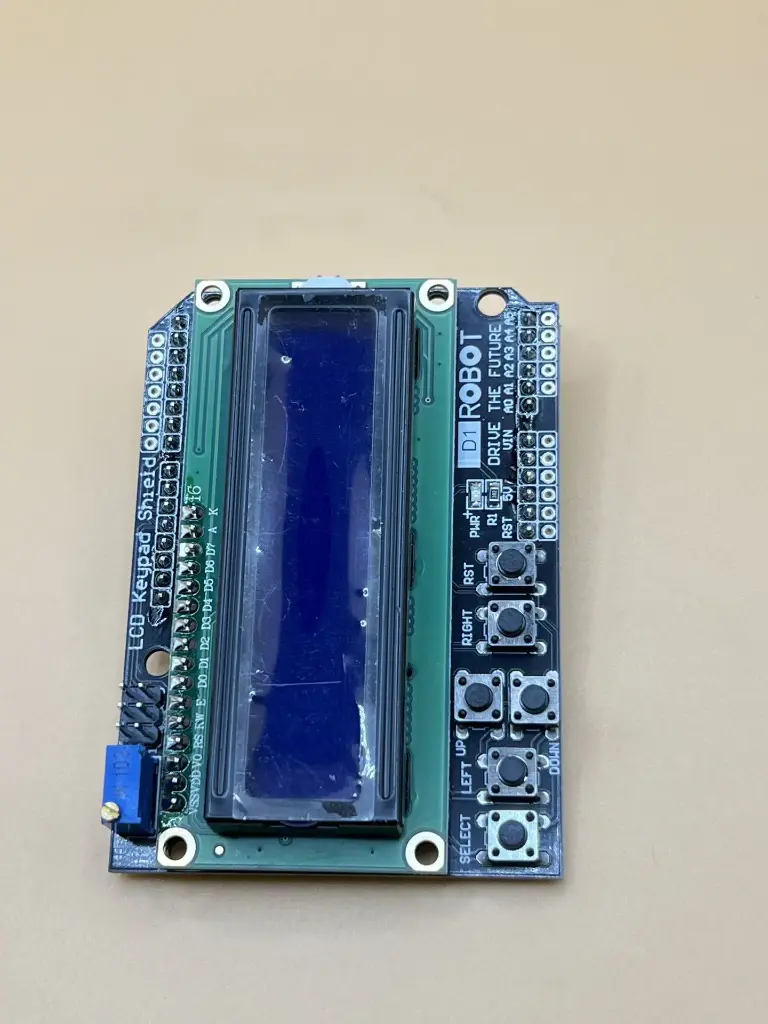

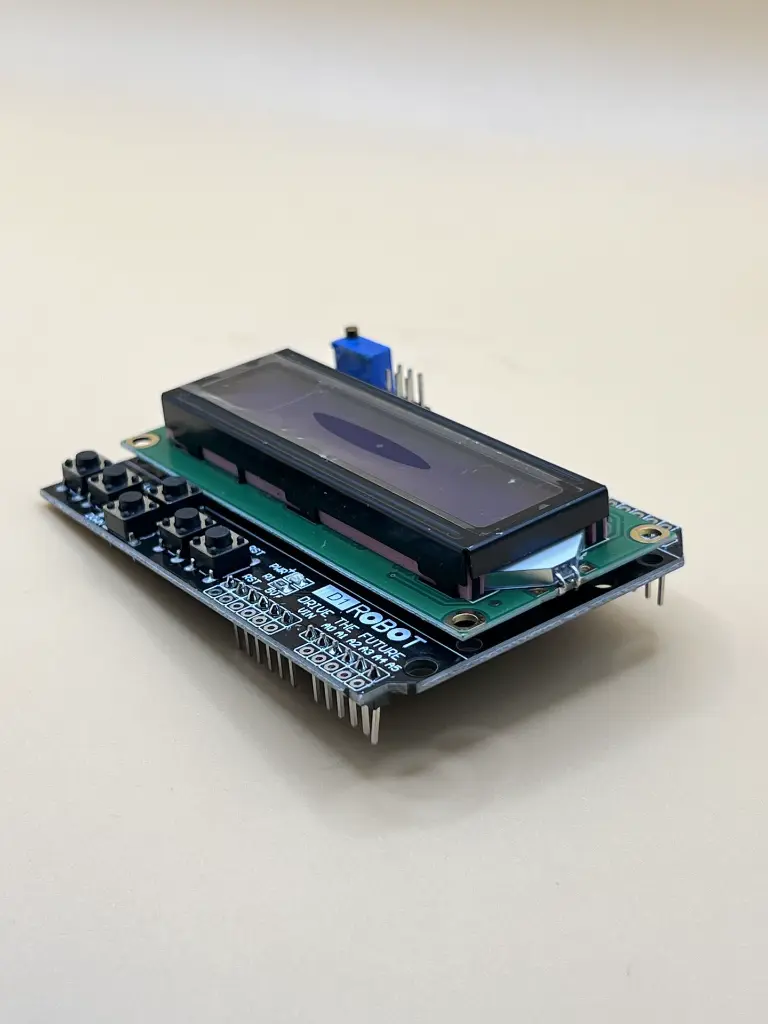

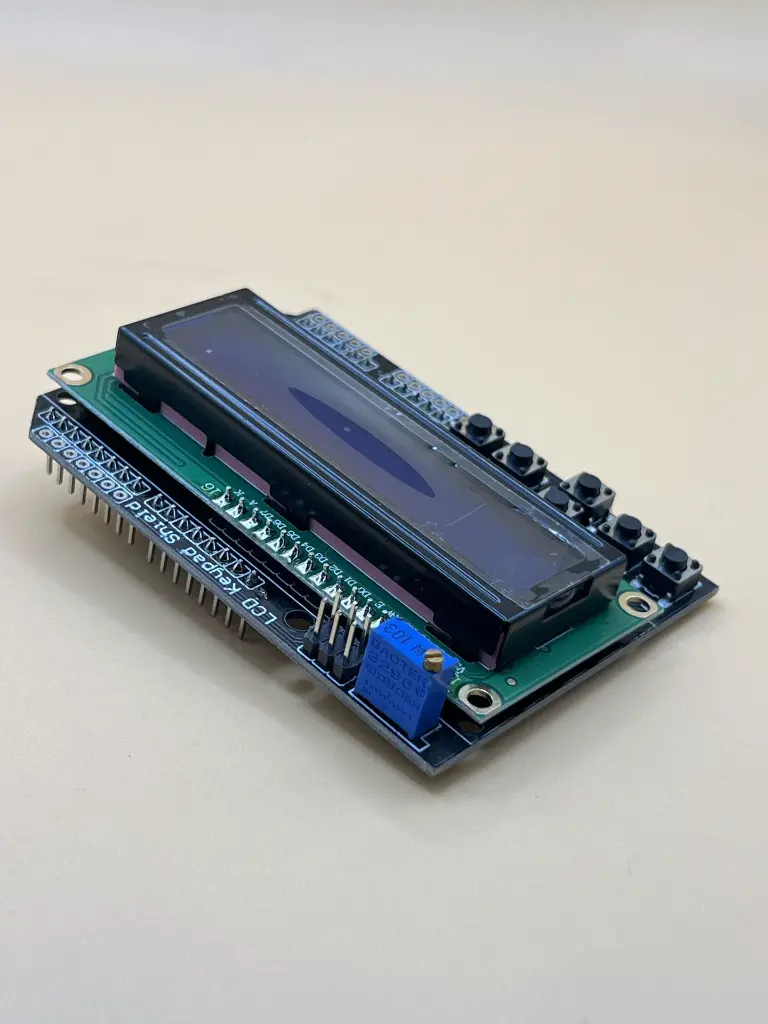

The LCD Keypad Shield is an expansion board designed to provide both an LCD display and a set of push-button inputs to a microcontroller or development board. It combines a 16x2 LCD display with a matrix of push-button controls, allowing for interactive and user-friendly interfaces in various electronic projects.
Key Features:
- Integrated LCD Display: Includes a 16x2 character LCD for displaying text and information.
- Push-Button Matrix: Features a matrix of 5 buttons for user input, often including directional arrows and an "OK" button.
- Compatible with Arduino: Designed to work with Arduino boards and other compatible platforms.
- Simple Interface: Connects to the microcontroller through standard header pins, making it easy to integrate.
- Backlight Option: Some versions include a backlight for better visibility in low-light conditions.
- LCD Type: 16x2 Character LCD
- Button Matrix: Typically includes 5 buttons arranged in a matrix (Up, Down, Left, Right, and Select)
- Operating Voltage: Typically 5V, compatible with standard Arduino boards.
- Connection: Uses standard Arduino shield pin layout for easy attachment.
- Backlight: Optional, depending on the specific model.
- User Interfaces: Ideal for creating user interfaces in electronics projects, such as menu systems and displays.
- Educational Projects: Useful for teaching and learning about LCD displays and button inputs.
- Prototyping: Facilitates rapid prototyping of interactive systems with visual and input capabilities.
- DIY Electronics: Suitable for hobbyists and makers working on projects requiring both display and control elements.
No Specifications
