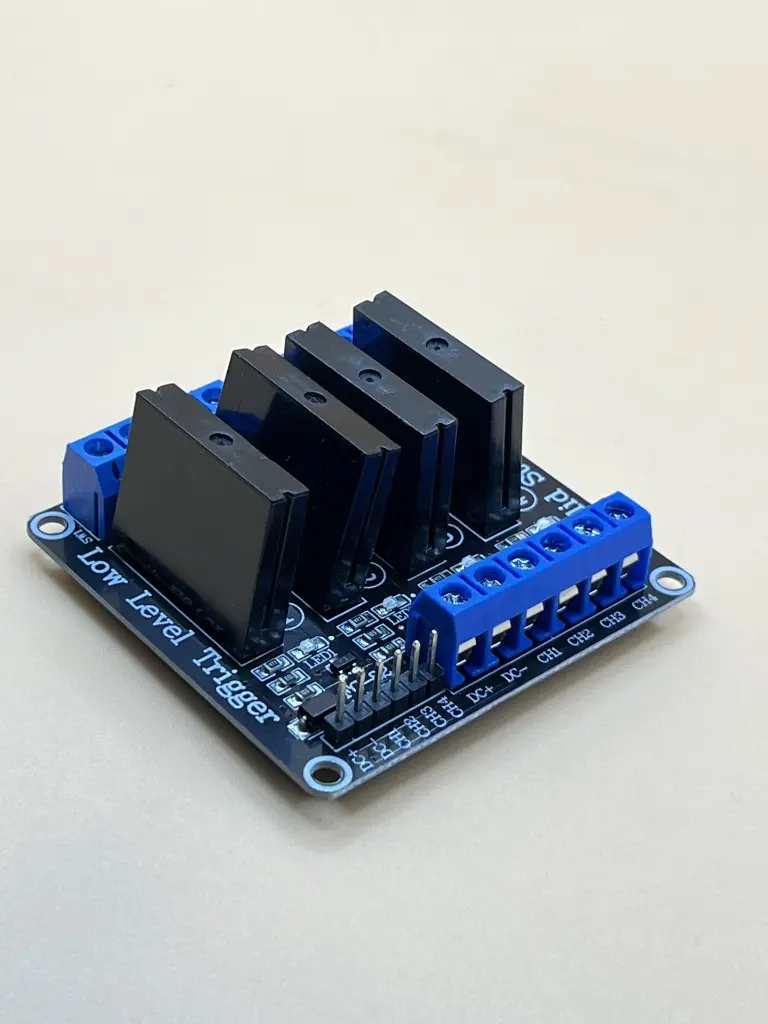

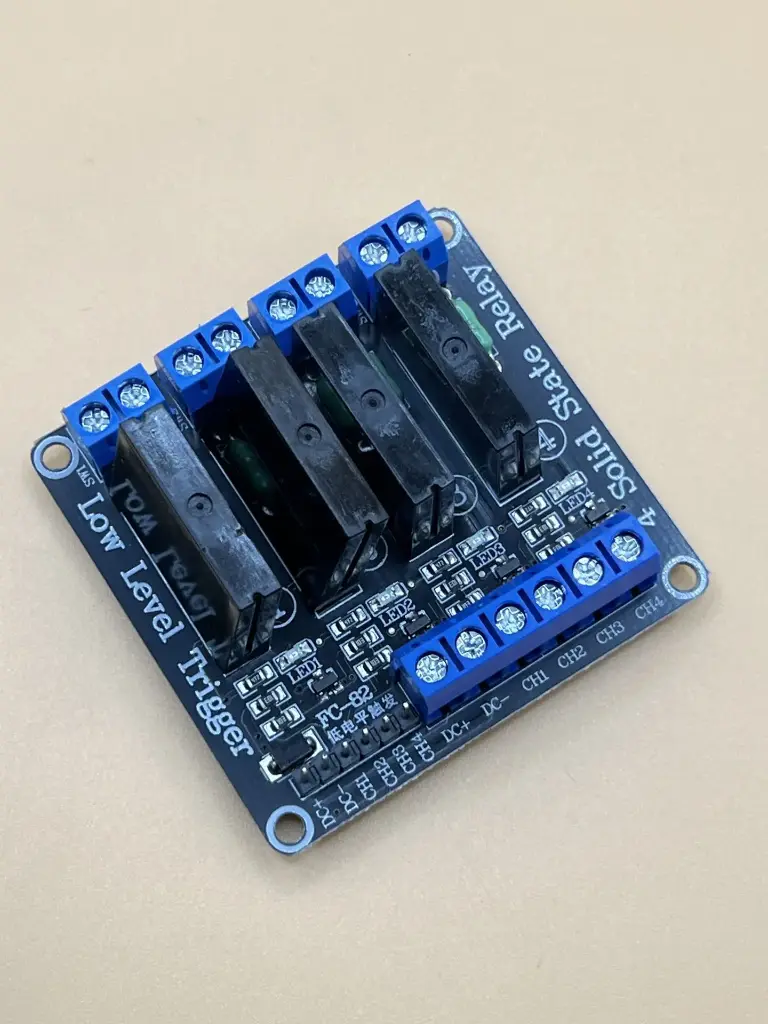

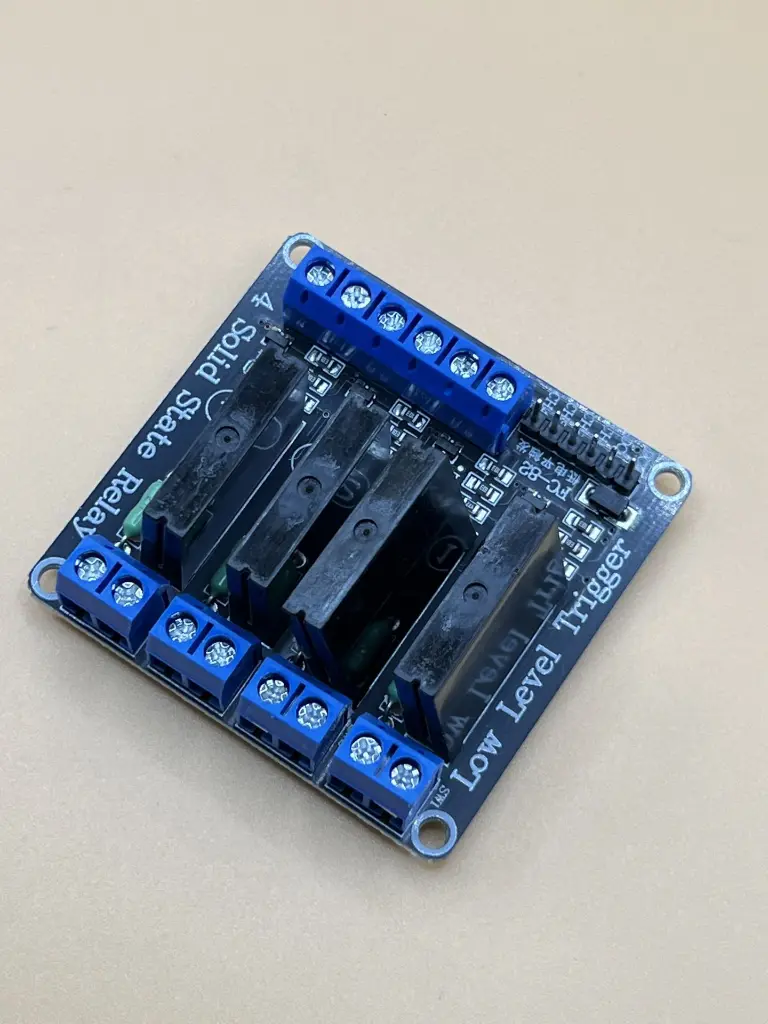

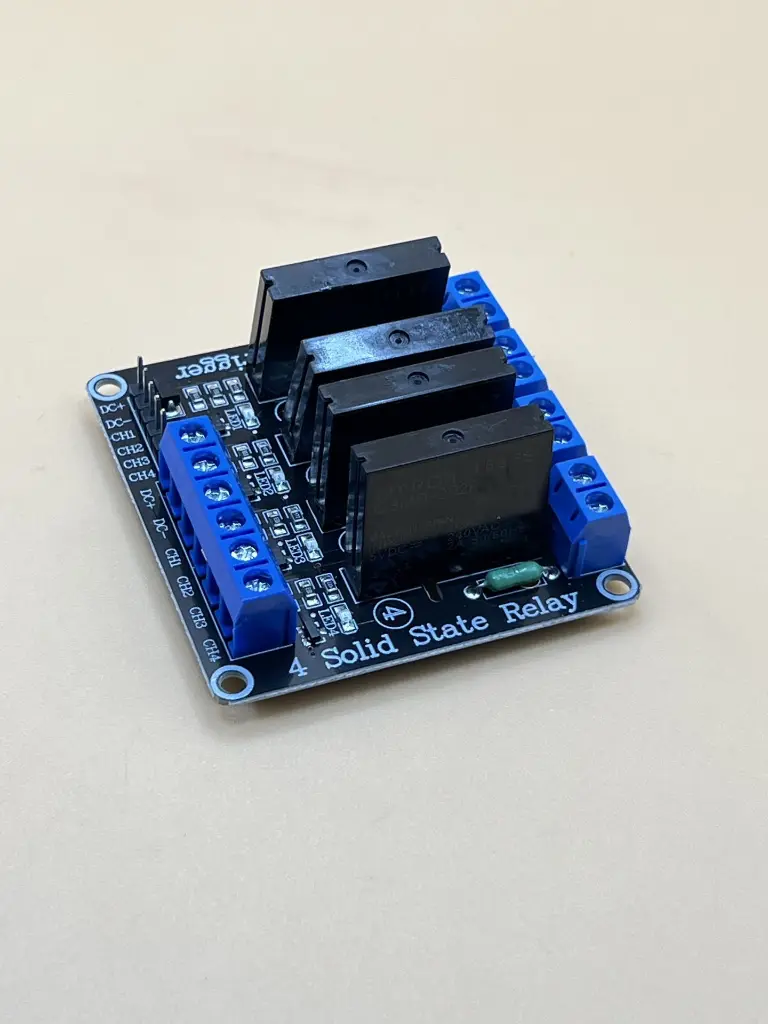

4 channel solid state relay (SSR) module
6 sold in last 24 hours
The 4 Channel Solid State Relay (SSR) Module is designed for controlling AC loads using a low-voltage DC control signal. It features four independent channels, each capable of handling high current loads without mechanical wear or sparking. This module is ideal for applications that require reliable and silent switching of multiple AC loads.
Key Features:
- Solid State Relays: Provides silent and fast switching with no mechanical wear.
- Four Independent Channels: Control up to four separate AC loads simultaneously.
- High Load Capacity: Capable of handling high current loads up to 2A per channel.
- Opto-Isolated Inputs: Ensures safe and reliable isolation between control signal and high-power load.
- LED Indicators: Built-in LEDs for each channel indicate the switching status.
- Compact Design: Small footprint for easy integration into various projects.
- Control Voltage: 3V to 5V DC
- Load Voltage: 75V to 264V AC
- Load Current: Up to 2A per channel
- Trigger Current: 20mA (minimum)
- Isolation Voltage: 2500V AC (input to output)
- Response Time: ≤ 10ms
- Dimensions: 90mm x 55mm x 25mm
- Mounting: PCB mountable
- Home Automation: Control multiple lights, fans, and other household appliances.
- Industrial Automation: Manage machinery and equipment in industrial settings.
- Heating Systems: Control multiple heaters, thermostats, and other temperature-regulating devices.
- DIY Projects: Suitable for custom electronics projects requiring AC load control.
- Safety Systems: Implement in safety and security systems for reliable operation.
