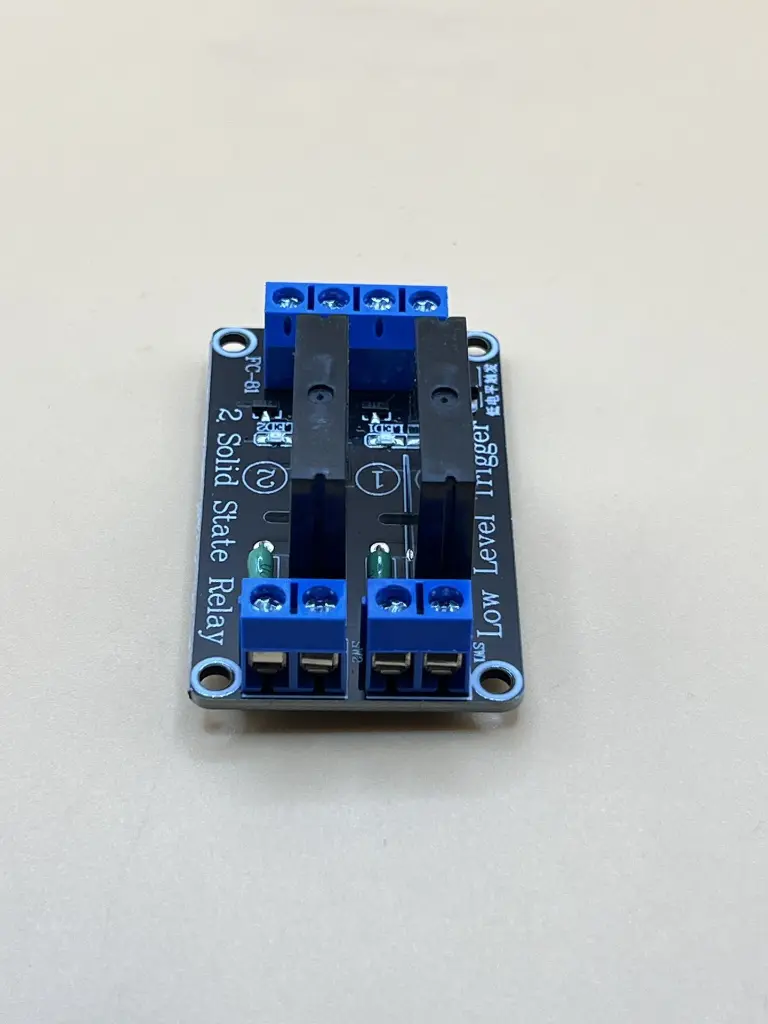

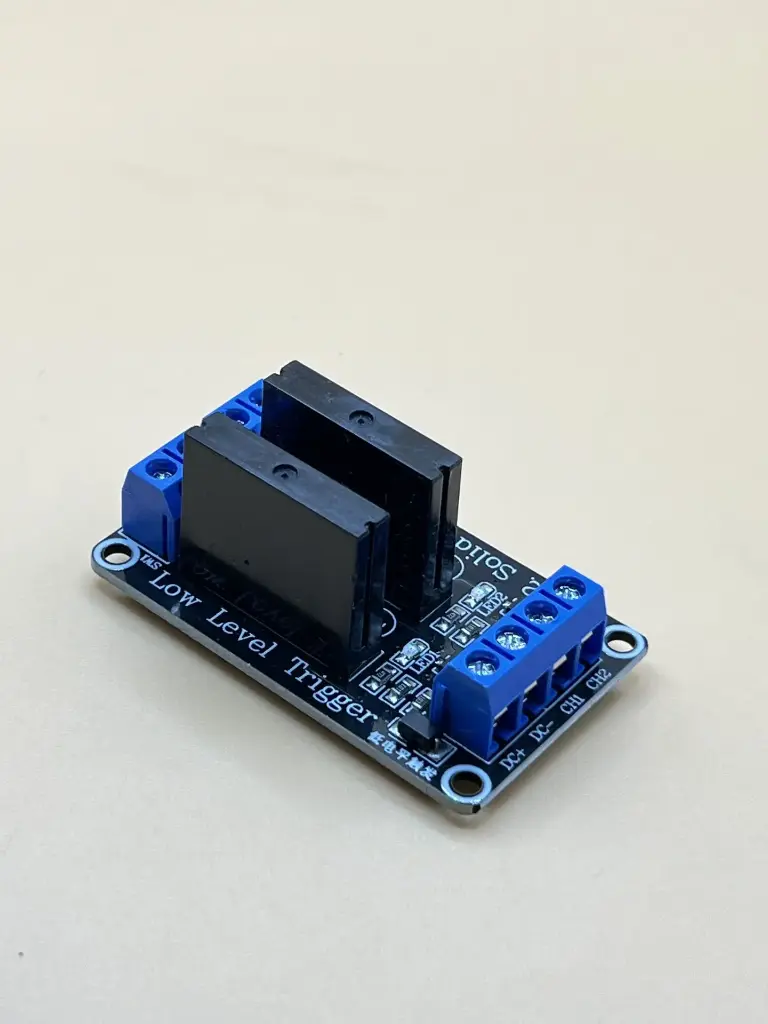

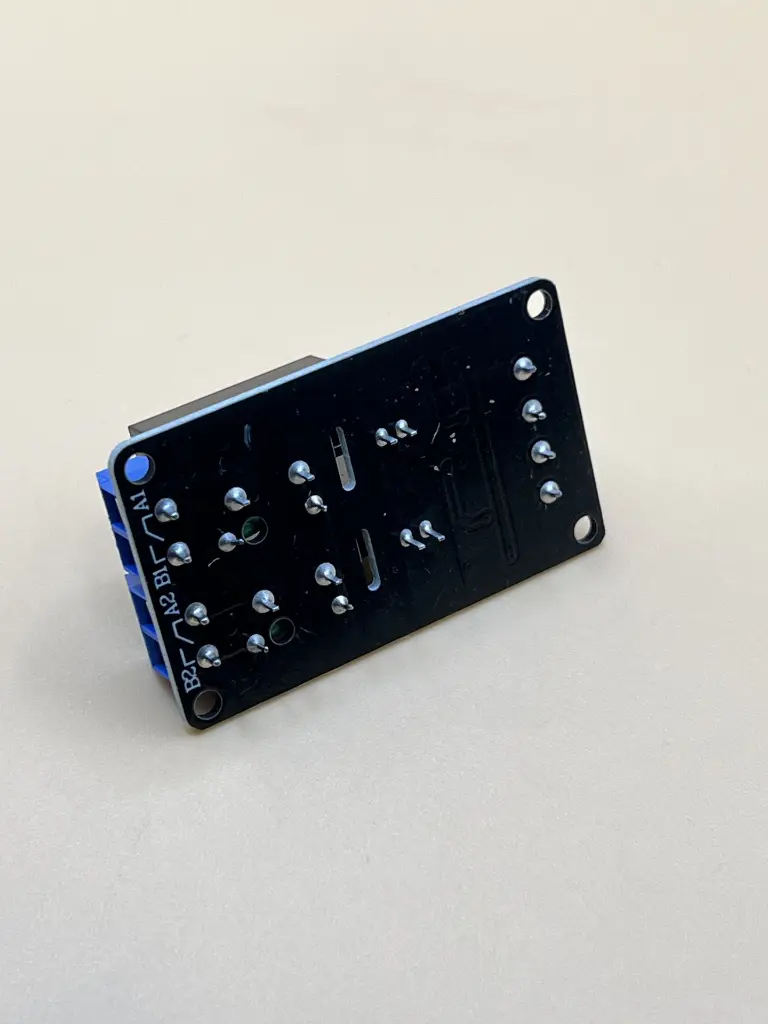

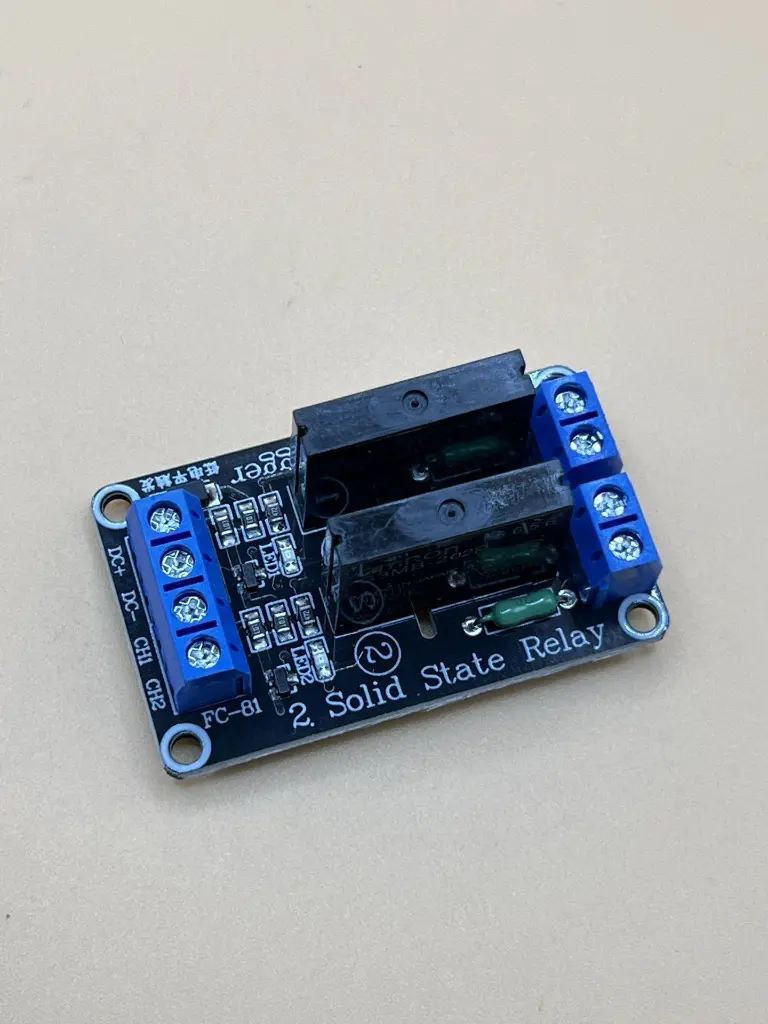

2 channel solid state relay (SSR) module
14 sold in last 24 hours
The 2 Channel Solid State Relay (SSR) Module is designed for switching AC loads using a low-voltage DC control signal. It provides two independent channels, each capable of handling high-power loads without mechanical wear or sparking, making it ideal for applications requiring silent and reliable switching.
Key Features:
- Solid State Relays: Provides silent and fast switching with no mechanical wear.
- Two Independent Channels: Control two separate AC loads simultaneously.
- High Load Capacity: Capable of handling high current loads up to 2A per channel.
- Opto-Isolated Inputs: Ensures safe and reliable isolation between control signal and high-power load.
- LED Indicators: Built-in LEDs for each channel indicate the switching status.
- Compact Design: Small footprint for easy integration into various projects.
- Control Voltage: 3V to 5V DC
- Load Voltage: 75V to 264V AC
- Load Current: Up to 2A per channel
- Trigger Current: 20mA (minimum)
- Isolation Voltage: 2500V AC (input to output)
- Response Time: ≤ 10ms
- Dimensions: 55mm x 33mm x 25mm
- Mounting: PCB mountable
- Home Automation: Control lights, fans, and other household appliances.
- Industrial Automation: Manage machinery and equipment in industrial settings.
- Heating Systems: Control heaters, thermostats, and other temperature-regulating devices.
- DIY Projects: Suitable for custom electronics projects requiring AC load control.
- Safety Systems: Implement in safety and security systems for reliable operation.
