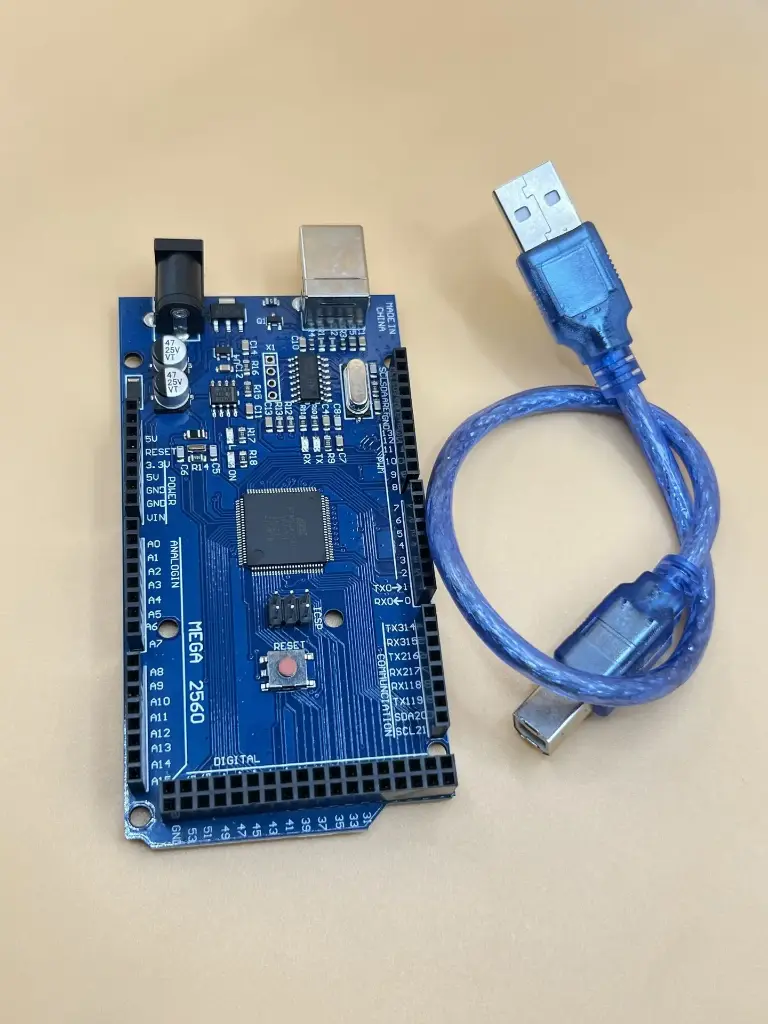

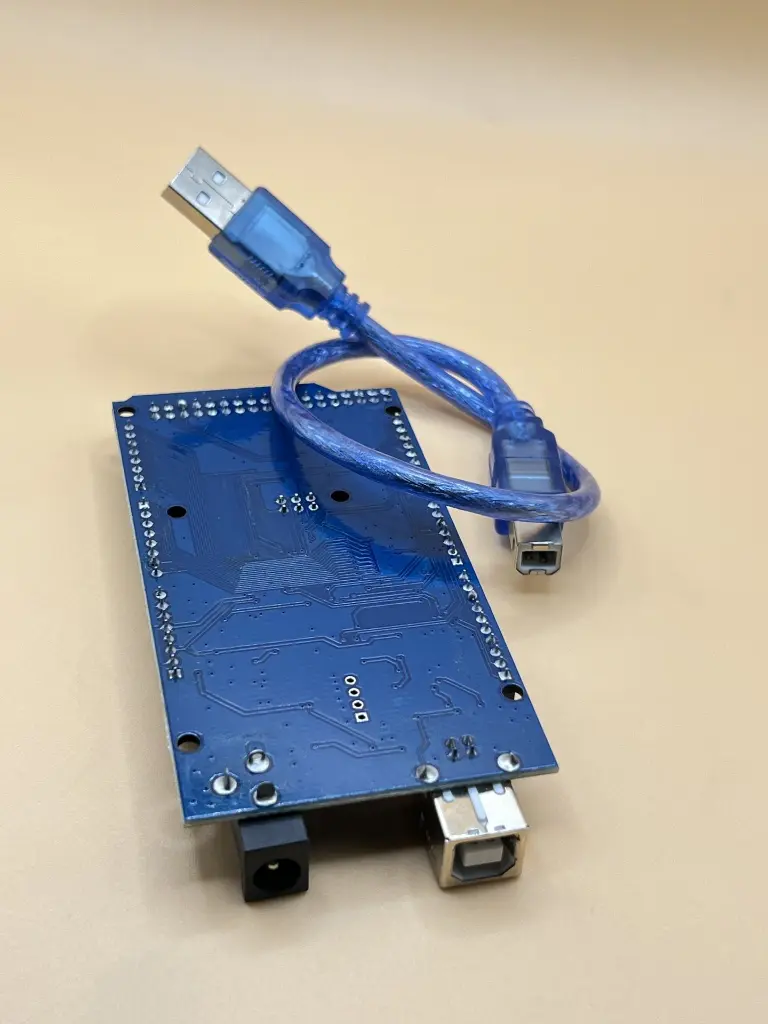

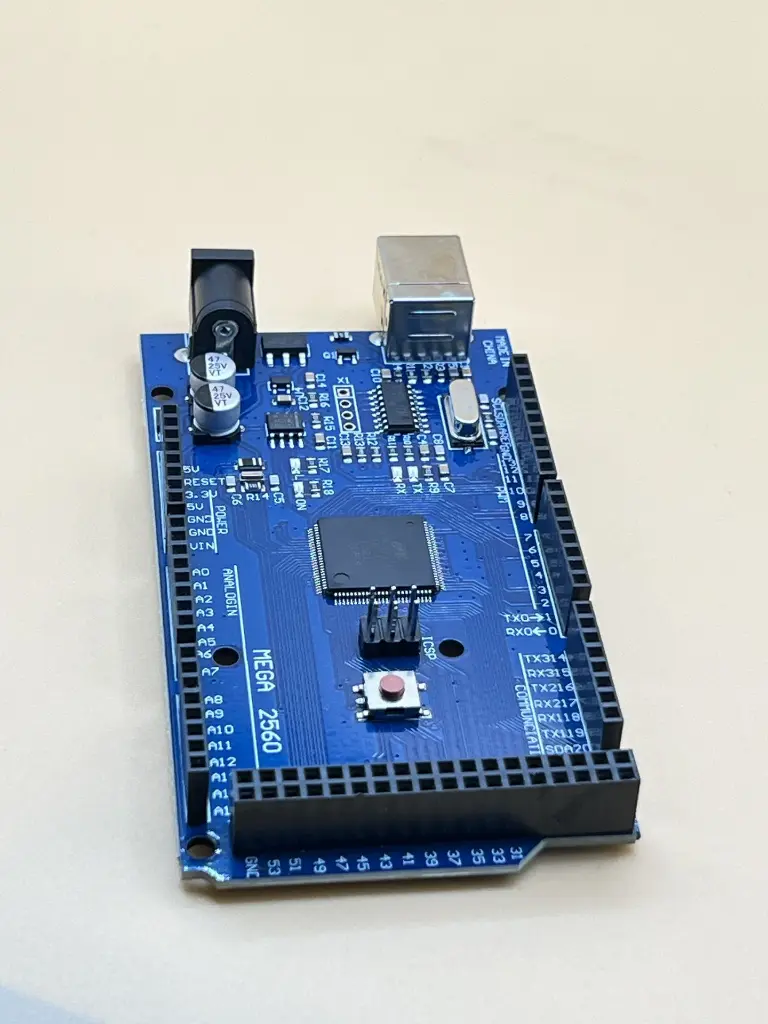

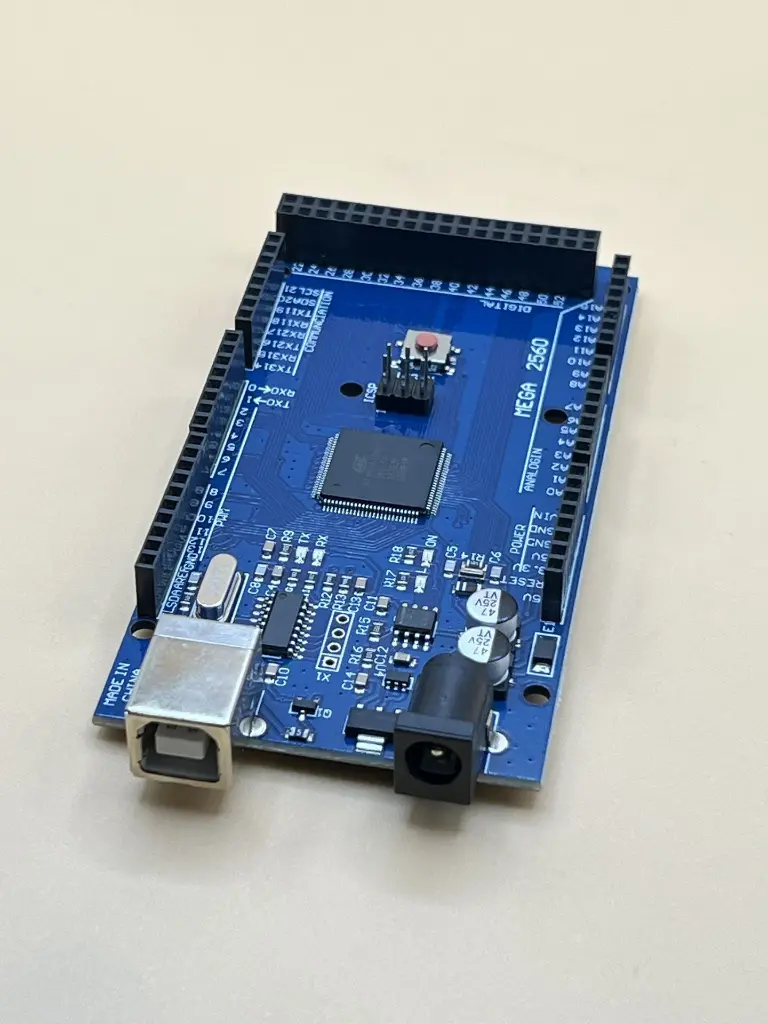

The MEGA2560 R3 CH340 is a microcontroller development board based on the ATmega2560, featuring a CH340 USB-to-serial converter. It is designed to provide a robust platform for various electronics projects, offering numerous digital and analog input/output pins, multiple communication interfaces, and compatibility with the Arduino IDE. The MEGA2560 R3 is ideal for projects requiring substantial memory and processing power.
Key Features:
- Microcontroller: ATmega2560
- USB-to-Serial Converter: CH340
- Digital I/O Pins: 54 (of which 15 provide PWM output)
- Analog Input Pins: 16
- Flash Memory: 256 KB (8 KB used by bootloader)
- SRAM: 8 KB
- EEPROM: 4 KB
- Clock Speed: 16 MHz
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20V
- Microcontroller: ATmega2560
- USB-to-Serial Converter: CH340
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Digital I/O Pins: 54 (15 PWM)
- Analog Input Pins: 16
- DC Current per I/O Pin: 20 mA
- DC Current for 3.3V Pin: 50 mA
- Flash Memory: 256 KB (ATmega2560) of which 8 KB used by bootloader
- SRAM: 8 KB (ATmega2560)
- EEPROM: 4 KB (ATmega2560)
- Clock Speed: 16 MHz
- Robotics: Ideal for controlling complex robotic systems.
- IoT Projects: Suitable for Internet of Things (IoT) applications with multiple sensors and actuators.
- Prototyping: Excellent for prototyping large-scale electronic systems.
- Automation: Used in home and industrial automation projects.
- Educational: Perfect for teaching advanced microcontroller programming and electronics.
