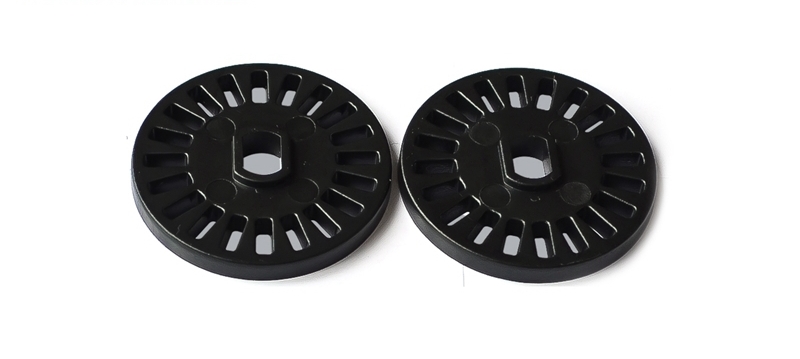

The 20 Grid Speed Counting Disk is a precision component used in various applications to measure rotational speed. The disk features 20 evenly spaced grids or slots that enable accurate counting and timing of rotations. It is commonly used in conjunction with optical sensors or encoders to provide real-time speed data for motors and other rotating machinery.
Key Features:
Key Features:
- High Precision: Ensures accurate speed measurement with 20 evenly spaced grids.
- Durable Construction: Made from high-quality materials for long-lasting performance.
- Easy Integration: Compatible with various optical sensors and encoders.
- Versatile Applications: Suitable for a wide range of rotational speed measurement tasks.
- Compact Design: Small and lightweight, easy to install in different setups.
- Number of Grids: 20
- Material: ABS
- Code wheel diameter: 25.75mm
- Code plate thickness: 2.58mm
- Number of gratings: 20
- Raster length: 4mm
- Grating width: 1.2mm
- Motor Speed Measurement: Used in conjunction with optical sensors to measure the speed of DC and AC motors.
- Industrial Automation: Integrated into machinery for monitoring and controlling rotational speeds.
- Robotics: Provides accurate speed feedback for robotic movement and control.
- Educational Projects: Ideal for experiments and demonstrations involving rotational speed measurement.
- DIY Electronics: Used in various DIY projects requiring precise rotational speed data.
