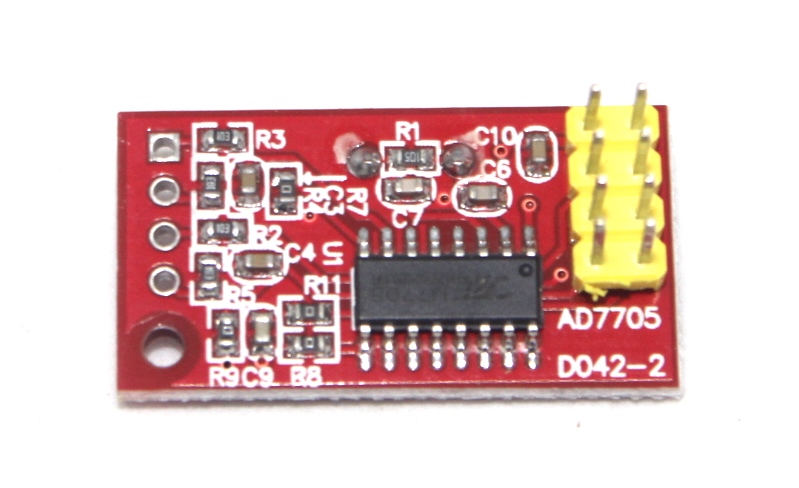

The AD7705 is a high-resolution, low-power, dual 16-bit sigma-delta analog-to-digital converter (ADC) designed for low-frequency measurement applications. It provides a versatile interface for digitizing a wide range of analog signals, making it ideal for use in precision instrumentation, industrial process control, and other applications requiring accurate data conversion.
Key Features:
- Dual Channel: Two independent 16-bit ADC channels for simultaneous signal measurement.
- Sigma-Delta Architecture: Ensures high accuracy and low noise performance.
- Low Power Consumption: Ideal for battery-powered and portable applications.
- Programmable Gain: Configurable gain settings to accommodate various signal ranges.
- Flexible Interface: Supports serial communication with microcontrollers and DSPs.
- Internal Reference: Includes a stable internal reference for precise measurements.
- Differential Inputs: Provides differential input capability for improved noise rejection.
- Resolution: 16 bits
- Number of Channels: 2
- Input Type: Differential
- Reference Voltage: 2.5V (internal) or external reference
- Power Supply: 2.7V to 3.3V (low voltage version) or 4.75V to 5.25V (standard version)
- Power Consumption: 1mW (typical at 3V)
- Data Rate: Up to 1kHz (selectable)
- Interface: SPI-compatible serial interface
- Operating Temperature Range: -40°C to +85°C
- Package Type: 16-lead SOIC, 16-lead PDIP
- Precision Instrumentation: High-resolution data acquisition for laboratory and industrial instruments.
- Process Control: Monitoring and control of industrial processes requiring accurate signal conversion.
- Portable Devices: Low-power ADC for battery-operated measurement systems.
- Medical Equipment: High-resolution data conversion for medical diagnostic devices.
- Environmental Monitoring: Accurate measurement of environmental parameters.
