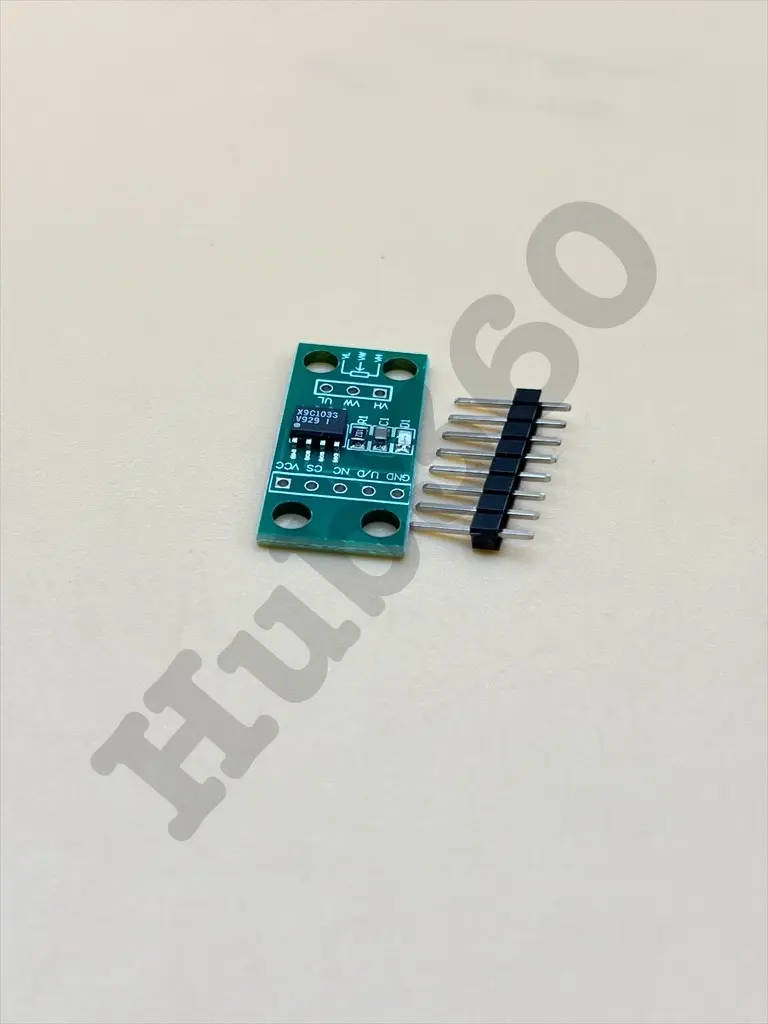

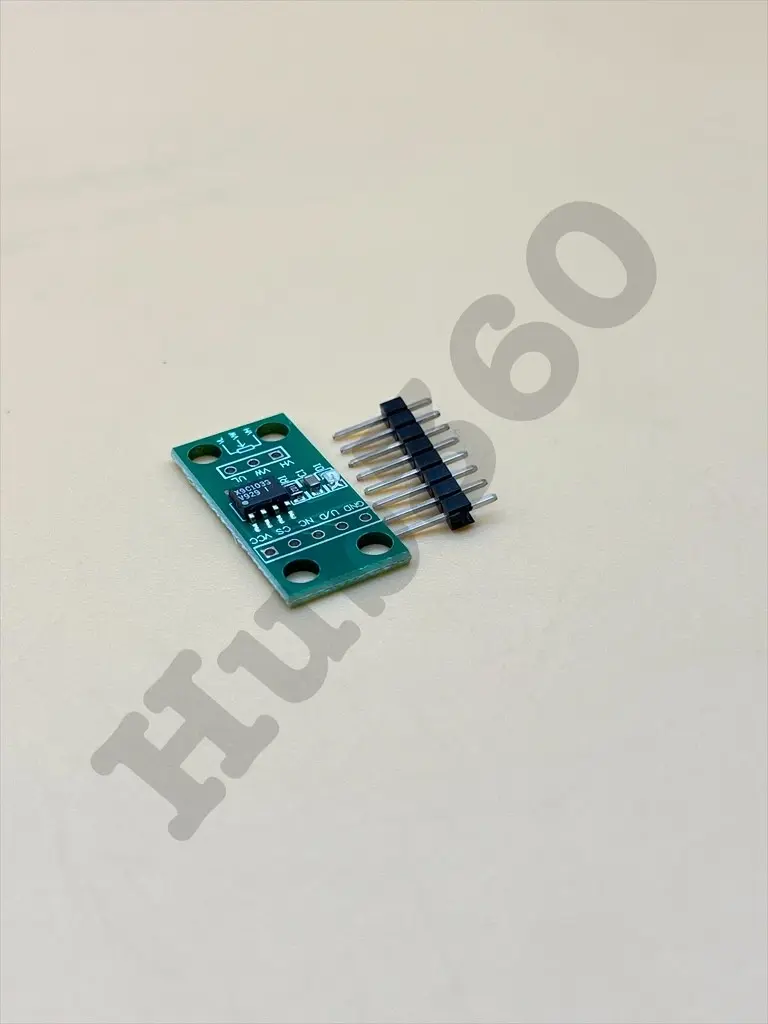

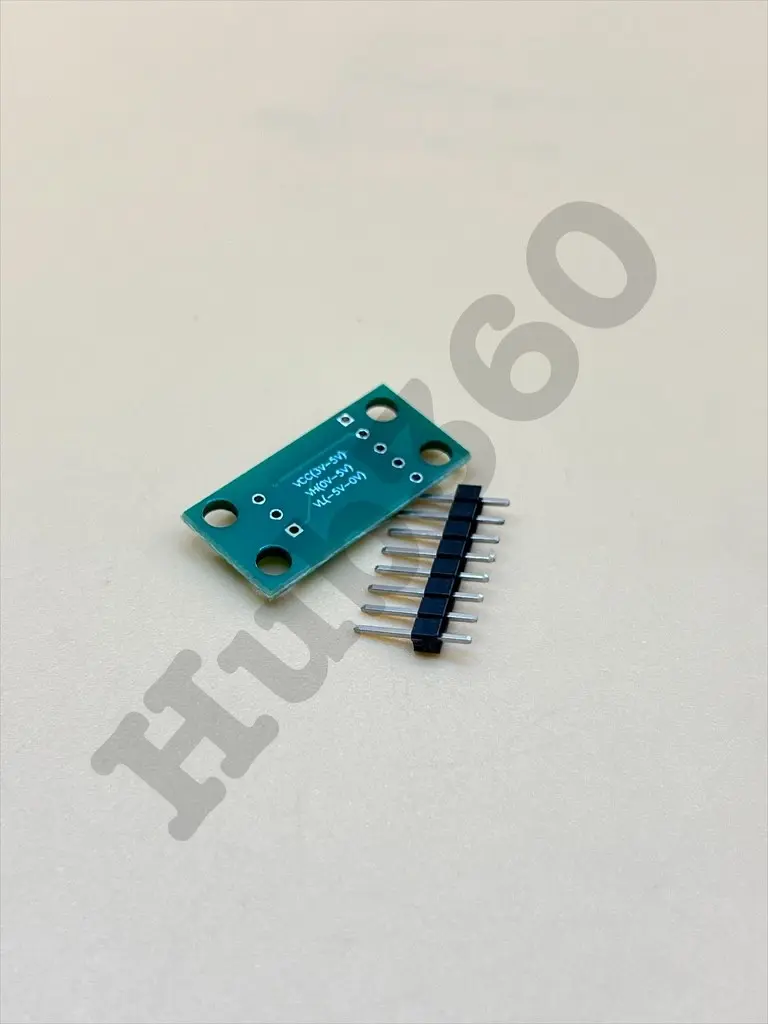

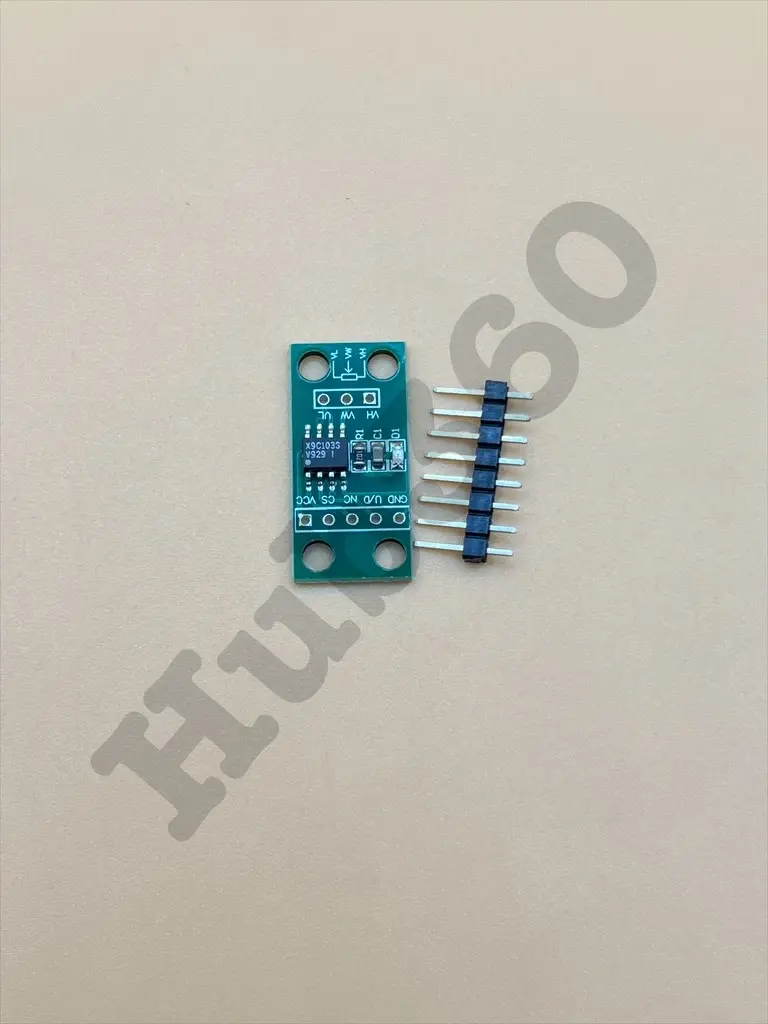

X9C103S Digital potentiometer module
11 sold in last 24 hours
The X9C103S Digital Potentiometer Module is a versatile and precise electronic component designed to replace traditional mechanical potentiometers. It allows for digital control of resistance, enabling fine-tuned adjustments in various applications such as volume control, signal conditioning, and calibration. This module is ideal for projects requiring accurate and programmable resistance control.
Key Features:
- Digital Control: Provides 100 taps of resistive steps via digital input.
- Non-Volatile Memory: Retains resistance setting even after power is removed.
- Low Power Consumption: Efficient operation, suitable for battery-powered devices.
- Wide Resistance Range: 10kΩ total resistance with 100-step resolution.
- Compact Design: Small module size for easy integration.
- Simple Interface: Controlled via up/down control and increment/decrement inputs.
- High Reliability: Solid-state design for long-term durability and stability.
- Total Resistance: 10kΩ
- Number of Steps: 100 (each step approximately 100Ω)
- Interface: Up/Down control, increment/decrement
- Operating Voltage: 5V DC
- Wiper Current: 3mA (maximum)
- Standby Current: 50nA (typical)
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Typically around 12mm x 10mm
- Volume Control: Digital volume adjustment in audio applications.
- Signal Conditioning: Precise adjustment of signal levels.
- Calibration: Used in systems requiring accurate calibration of parameters.
- Prototyping: Ideal for prototyping adjustable resistance circuits.
- Embedded Systems: Suitable for use in embedded applications requiring variable resistance.
