Description

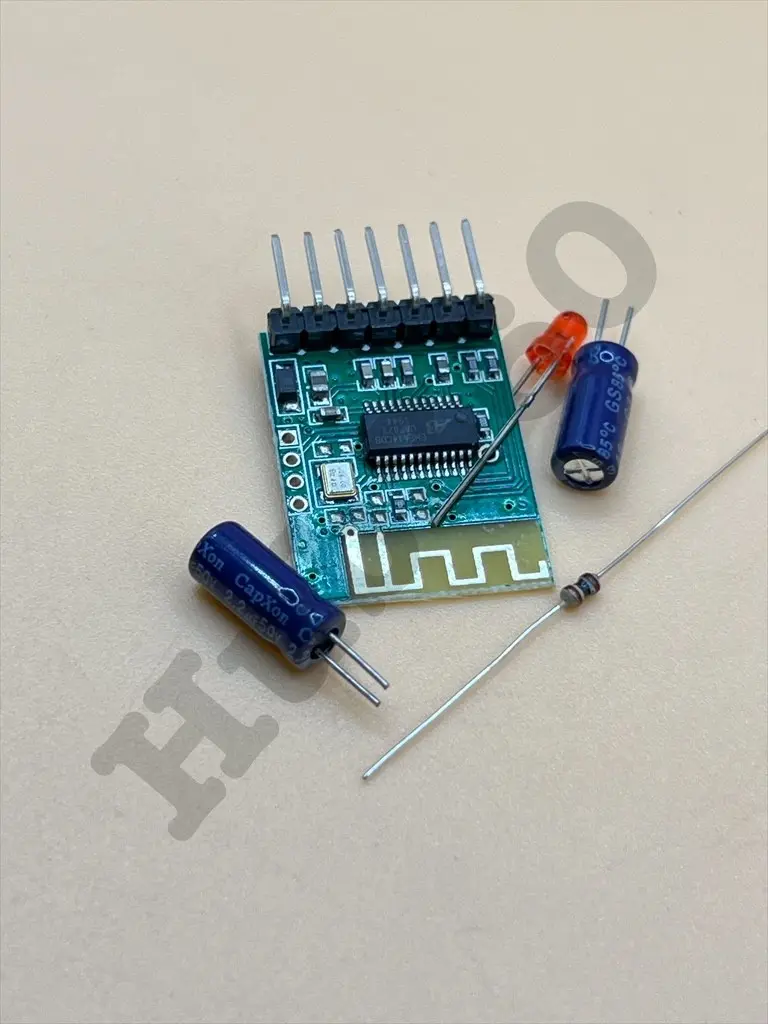

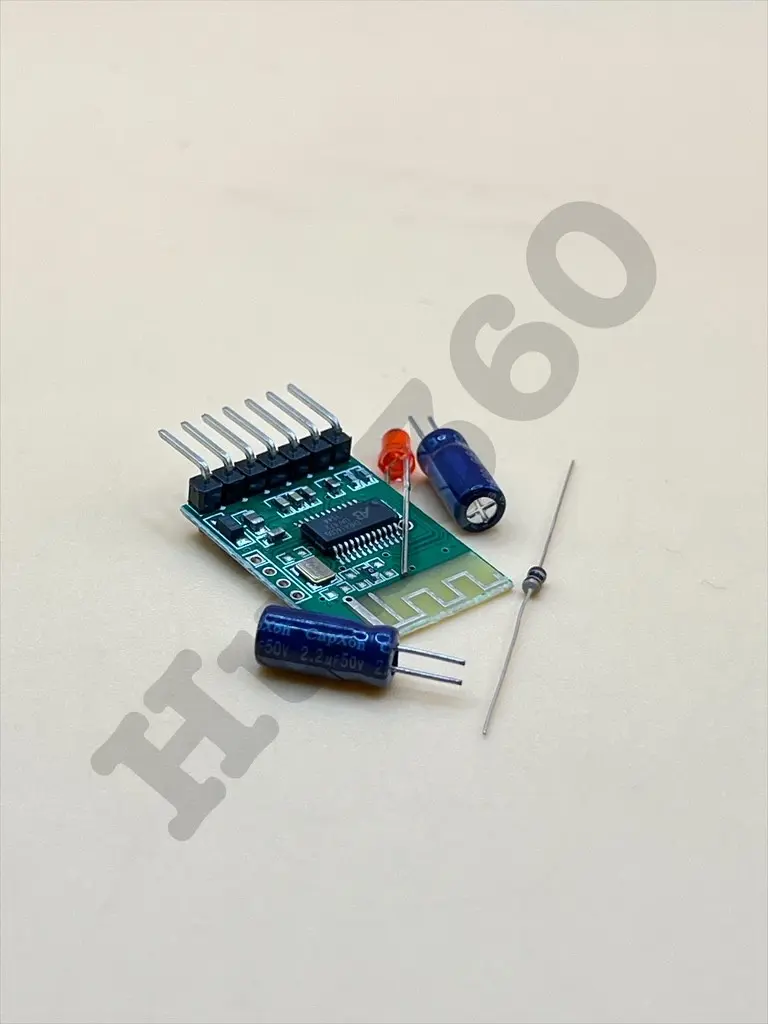

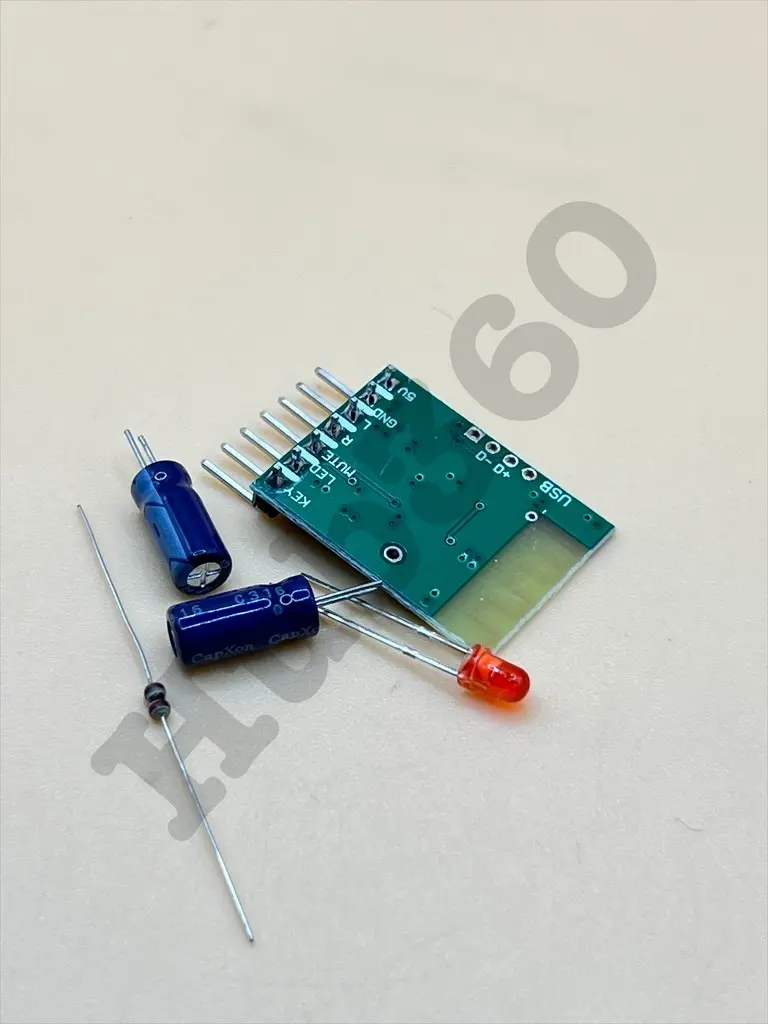

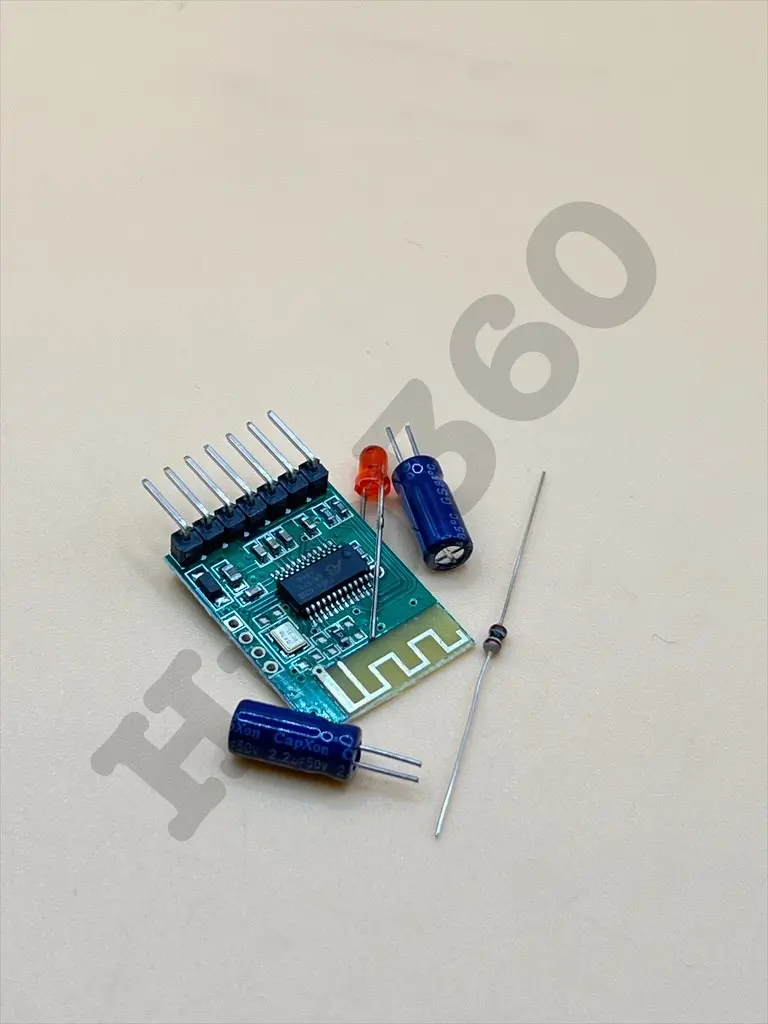

The Bluetooth 4.0 Audio Receiver and Amplifier Module is a compact and efficient wireless audio solution designed for streaming music directly from smartphones, tablets, laptops, and other Bluetooth-enabled devices. With an integrated stereo power amplifier, the module delivers clear and high-quality audio output for DIY speakers and audio systems.
Key Features
- Bluetooth 4.0 Wireless Audio Streaming
- Integrated Stereo Audio Amplifier
- High-Quality Sound with Low Distortion
- Compact and Lightweight Design
- Wide Operating Voltage Range (5V–24V DC)
- Low Power Consumption
- Supports 4Ω – 8Ω Speakers
-
Easy Integration into DIY Projects
Specification
- Bluetooth Version: 4.0
- Frequency Range: 2.402GHz – 2.480GHz
- Audio Output Power: 3W × 2 Channels
- Operating Voltage: 5V – 24V DC
- Idle Current Consumption: ≤100mA
- Active Current Consumption: ≤500mA
- Signal-to-Noise Ratio (SNR): ≥75dB
- Total Harmonic Distortion (THD): ≤0.1%
- Speaker Impedance: 4Ω – 8Ω
- Operating Temperature: -20°C to +60°C
Application
- Wireless Bluetooth speakers
- DIY audio amplifier projects
- Home audio systems
- Portable sound systems
- Car audio applications
- Embedded audio projects
