Description

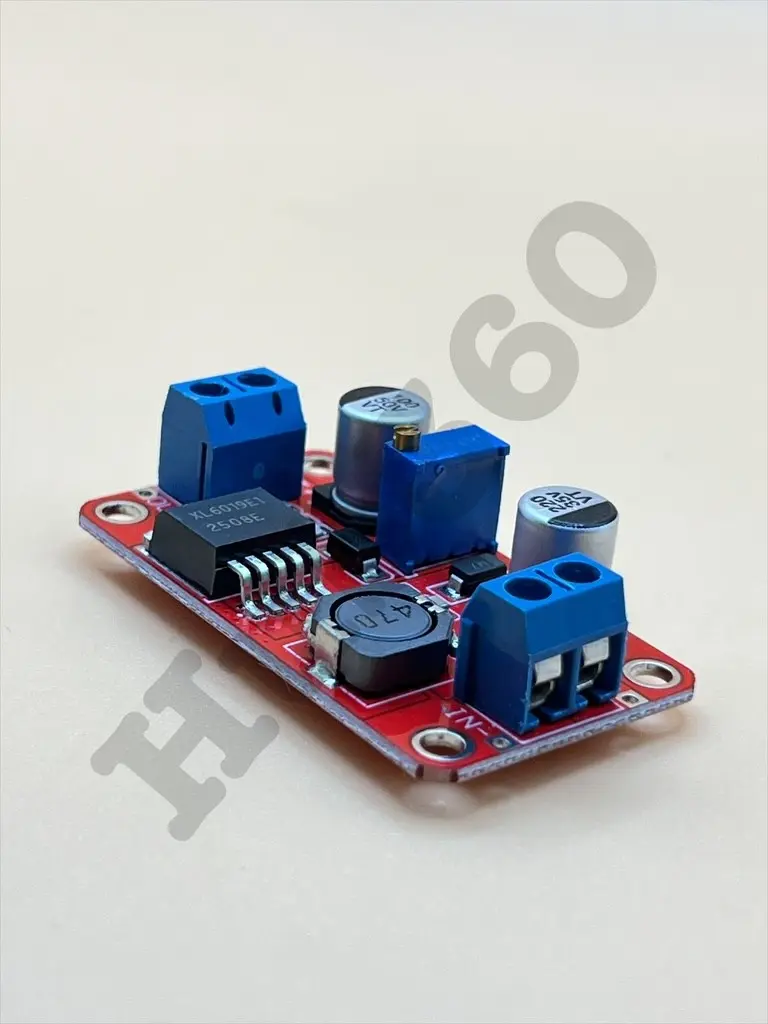

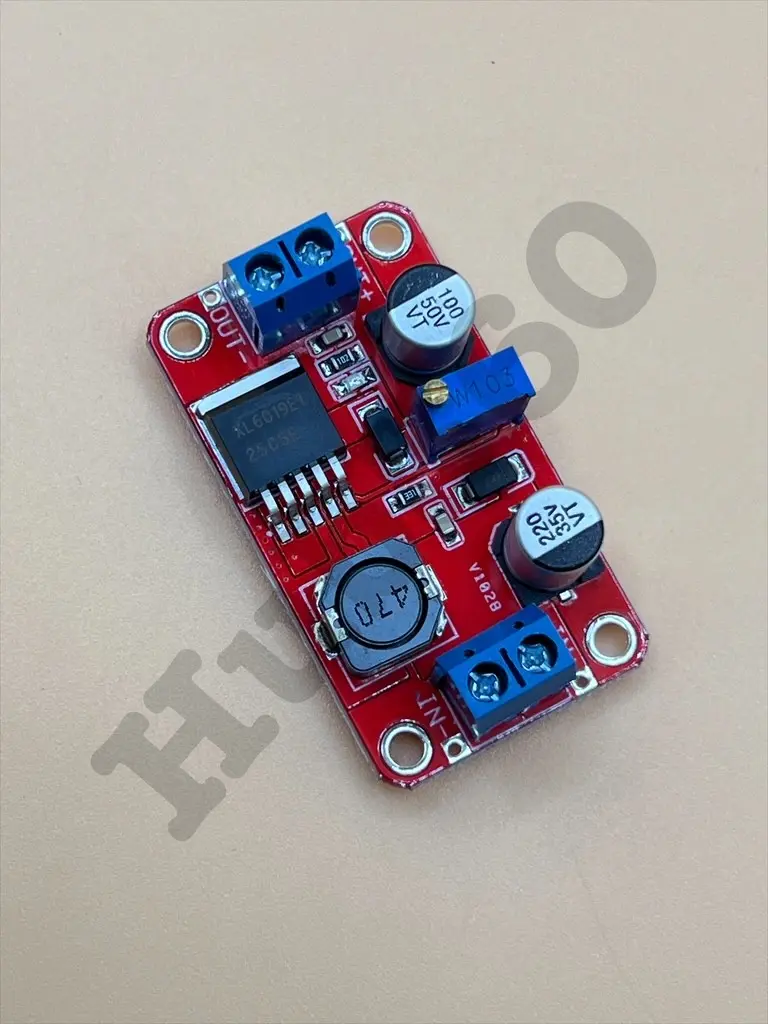

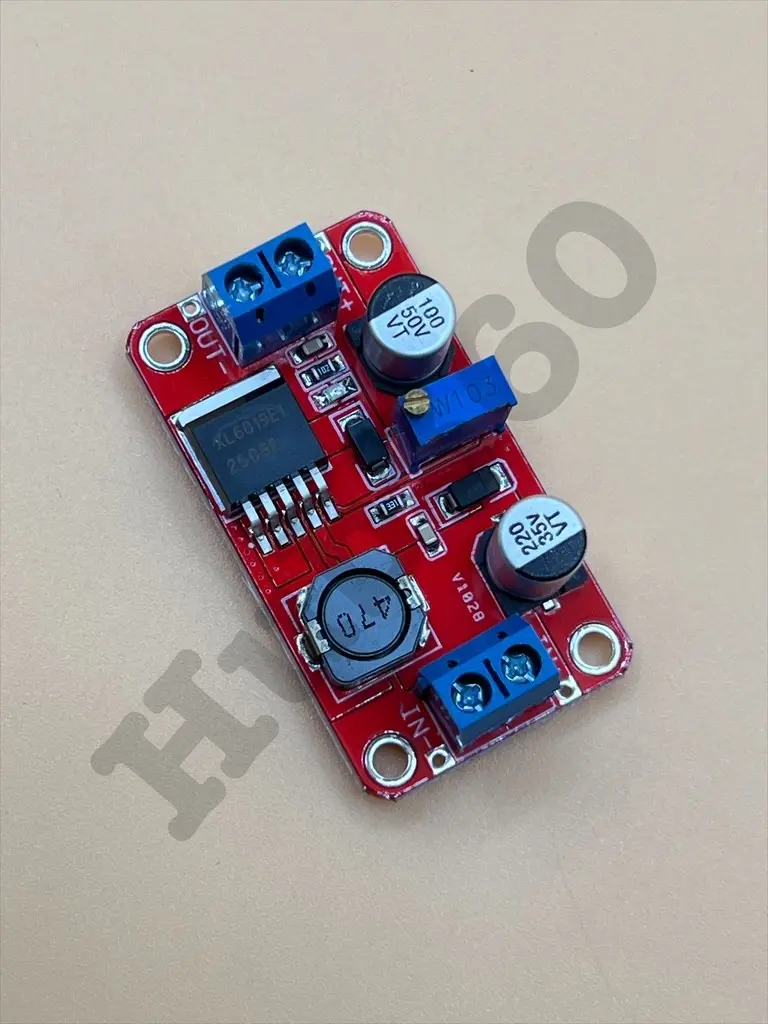

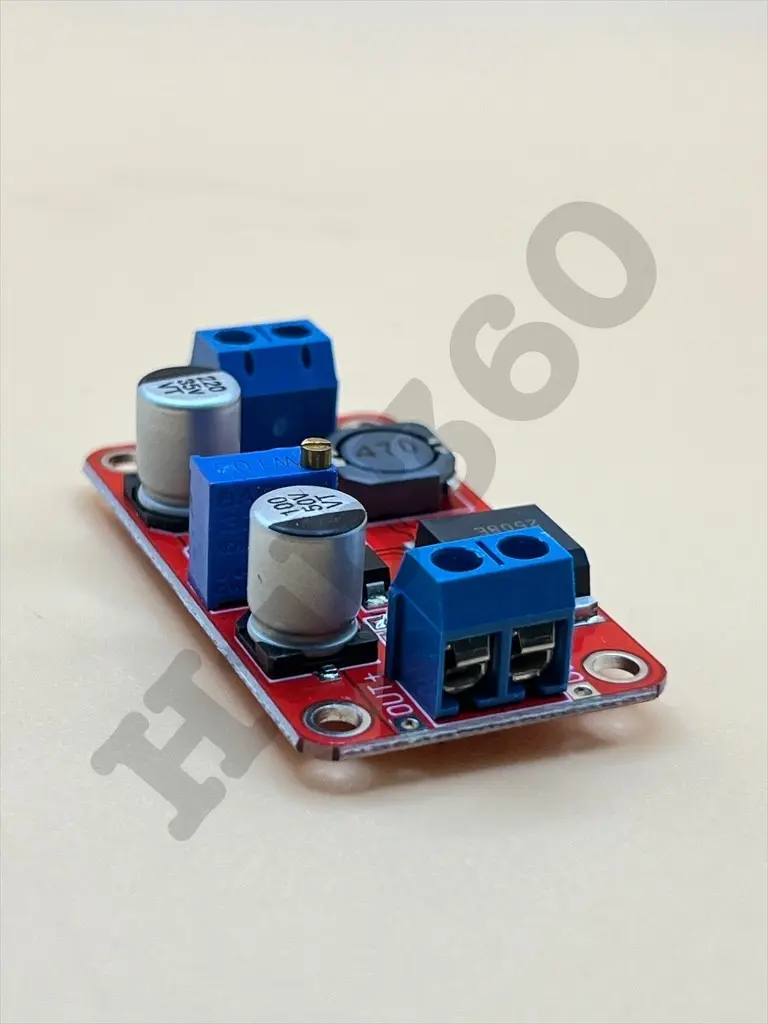

The XL6019 5A DC-DC Boost Converter Module is a high-efficiency step-up power supply designed to increase a lower DC input voltage to a higher adjustable output voltage. It is well suited for battery-powered systems, solar applications, and electronic projects where voltage boosting is required.
With a wide input voltage range, adjustable output, and built-in protection features, the XL6019 provides stable, reliable, and efficient power conversion for both professional and DIY applications.
Key Features
- High-efficiency DC-DC boost (step-up) converter
- Maximum output current up to 5A
- Wide input voltage range
- Adjustable output voltage via onboard potentiometer
- High conversion efficiency (up to 94%)
- Built-in overcurrent and thermal protection
- Compact and durable module design
Specification
- Input Voltage Range: 3V – 32V DC
- Output Voltage Range: 5V – 35V DC (adjustable)
- Maximum Output Current: 5A
- Efficiency: Up to 94%
- Switching Frequency: 180kHz
- Output Ripple: < 50mV
- Operating Temperature: –40°C to +85°C
- Module Dimensions: 49mm × 23.4mm × 11.4mm
Application
- Battery-powered electronics
- Portable and handheld devices
- Solar power and energy systems
- Robotics and automation projects
- DIY electronics and prototyping
- General DC voltage boosting applications
Notes & Usage Tips
- Output voltage should always be set before connecting sensitive loads.
- Adequate cooling is recommended when operating near maximum current.
- Input voltage must always be lower than the desired output voltage for proper boost operation.
